Description

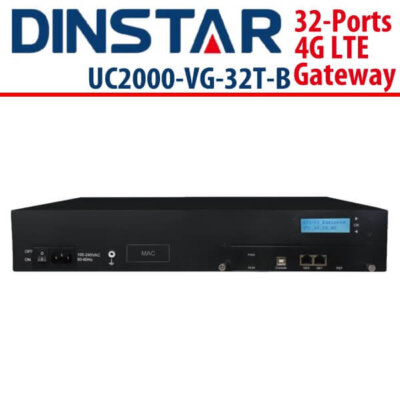

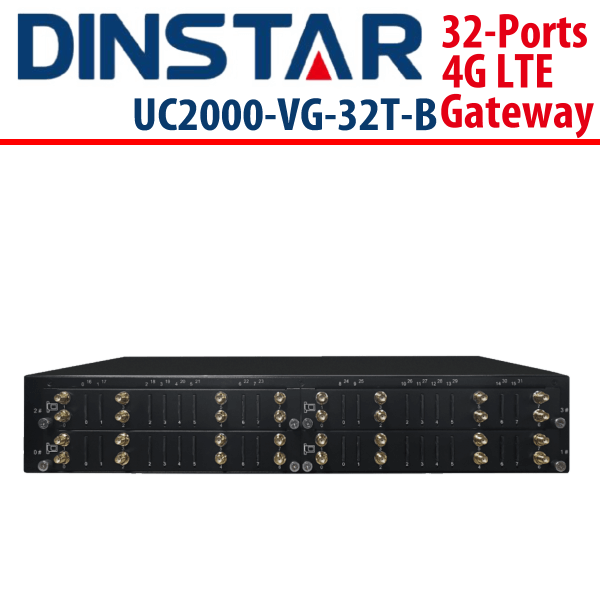

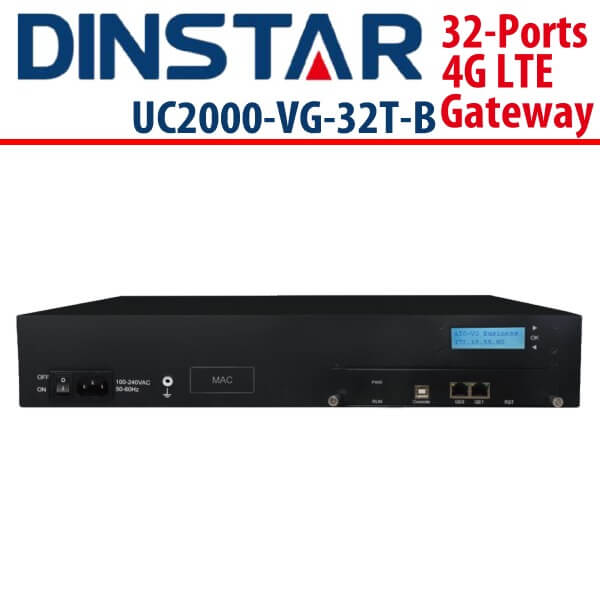

Dinstar UC2000-VG32TB 4G Gateway Dubai

The Dinstar UC2000-VG32TB Dubai utilizes the latest VoIP / SIP technology to seamlessly connect 4G/3G/2G mobile networks with VoIP networks. This wireless gateway, built on DINSTAR’s new hardware platform and powerful embedded CPU, offers 32 channels for enhanced functionality. Its user-friendly LCD display, featuring DINSTAR’s classic design, ensures ease of management. Additionally, the Dinstar UC2000-VG32TB Dubai gateway supports open API, enabling users to develop their own application software for sending SMS/USSD messages, bulk SMS messages, or pushing text messages from email or HTTP. With its cost-effective telephony capabilities and efficient communication features, this model is ideal for enterprises, multi-site organizations, call centers, and areas with limited landline access, such as rural areas. The Dinstar UC2000-VG32TB Dubai stands out as one of Dinstar’s exceptional 4G gateway models.

Key Features :

Up to 32 Channels GSM or LTE
2.3 inch Graphic LCD Display
Powerful Embedded CPU
Compatible with LTE-FDD/LTE-TDD/WCDMA/GSM Networks
Compatible with Mainstream VoIP Platform
Hot Swappable SIM Cards
Voice over LTE (VoLTE)
HTTP API for SMS Application Integration
SMS to Email & Email to SMS
Flexible Dial Rules & Manipulation Rules
Auto CLIP
Remote SIMs Management (optional)

Technical Specifications

Hardware Interfaces

Mobile : 32 Channels
SIM Card slots : 32
Antennas Connectors : SMA
2.3” LCD graphic display
Ethernet Interfaces : 2*10/100/1000 Base-T, RJ45
LED Indicators : Power, RUN, Channel indicator
Console : 1* RS232 (USB-B connector)
RST/PWR Button

VoIP & Media

Protocol : SIP v2.0, RFC3261
SIP UDP/TCP/TLS
RTP/SRTP
Codecs : G.711A/U, G.723.1, G.729A/B, G.722, AMR, OPUS(TBD)
Silence Suppression
Comfort Noise Generator(CNG)
Voice Activity Detection(VAD)
Echo Cancellation
Dynamic Jitter Buffer
DTMF : RFC2833, SIP Info
Call Progress Tone Generation
Programmable Gain Control
NAT : STUN, Dynamic NAT, Static NAT

Frequency Bands(2G/3G)

UC2000-VG-32G : GSM Gateway : 850/900/1800/1900MHz
UC2000-VG-32W： WCDMA Gateway with two options
A : WCDMA 850/1900MHz and GSM 850/900/1800/1900MHz;
B : WCDMA 900/2100MHz and GSM 900/1800MHz

LTE Frequency Bands

Type A :
- FDD : B2/B4/B12
- WCDMA : B2/B4/B5
Type E :
- FDD : B1/B3/B5/B7/B8/B20
- TDD : B38/B40/B41
- WCDMA : B1/B5/B8
- GSM : 900/1800MHz
Type V : FDD : B4/B13
Type J :
- FDD : B1/B3/B8/B18/B19/B26
- TDD : B41
- WCDMA : B1/B6/B8/B19
Type AU :
- FDD : B1/B2/B3/B4/B5/B7/B8/B28
- TDD : B40
- WCDMA : B1/B2/B5/B8
- GSM : 850/900/1800/1900
