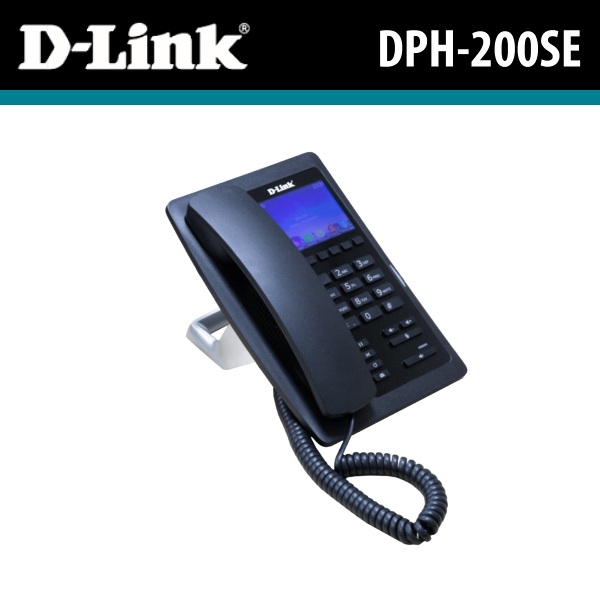

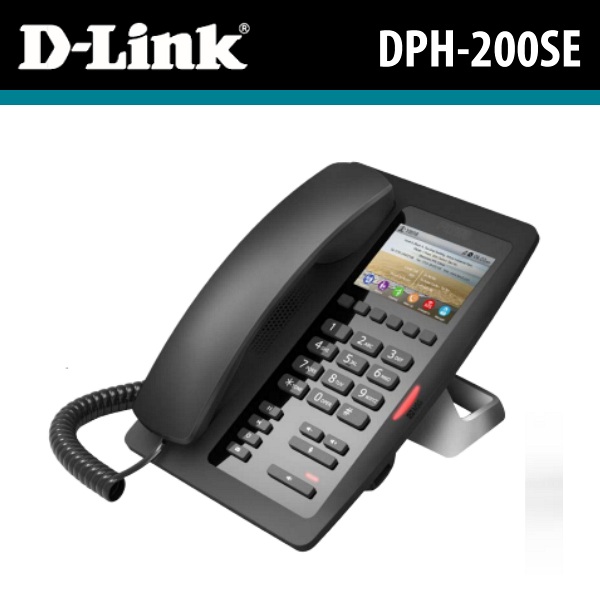

The Dlink DPH-200SE Dubai is a SIP-based VoIP phone tailored for small to medium-sized businesses. It delivers clear HD voice quality, making it suitable for conference calls and client conversations. Its large backlit LCD display and programmable soft keys facilitate easy access to frequently used functions and speed dial numbers. Additionally, it offers call waiting, call transfer, call hold, and call forwarding features. Setting up and configuring the Dlink DPH-200SE Dubai is straightforward, and it supports PoE, eliminating the need for an external power supply. It is also compatible with most IP PBXs and SIP-based services due to its support for the latest SIP protocol. Security is a standout feature of the Dlink DPH-200SE Dubai, supporting secure RTP and SRTP for encrypted voice communication, as well as TLS and HTTPS for secure signaling. Its built-in web interface allows for remote configuration, and the auto-provisioning feature simplifies deployment across multiple devices. The phone’s modern design complements any workspace and ensures durability. In summary, the Dlink DPH-200SE Dubai is an affordable and reliable SIP phone with HD voice quality, robust security features, and a user-friendly interface, making it a versatile and cost-effective choice for businesses seeking to enhance their phone systems.
Hardware
• SDRAM : 16MB
• FLASH : 8MB
Network interface
• WAN Port 10/100Base-TX with PoE support for LAN
• LAN Port 10/100 Base-TX for PC
• Handset RJ9
• USB port for mobile devices charge
LCD
• Color LCD display 3.5 inch
• Resolution: 480×320
Keypad Features
• 6 Soft keys for doing more functions
• Hold
• Transfer
• Redial
• MWI
• Speaker
• 12 numeric keys with star & pound key
• Mute
• Vol -/Vol +
Power Plug
• DC power plug
Software
• VxWorks OS
Voice Codec
• G.711a/u
• G.729A/B
• G.723.1 high/low
• G.722
• G.726-32
Advance Voice Quality Feature
• Support HD voice
• DTMF: In-band, RFC 2833 and SIP INFO
• Acoustic Echo Cancellation: hands-free can support 96ms
• Voice Active Detection (VAD)
• Comfort Noise Generation (CNG)
• Silence Suppression
• Packet Lost Concealment (PLC)
• Jitter Buffer
Signal, Media & Network Protocols
• SIP 2.0 RFC 3261
• SIP support 1 SIP server, and backup SIP proxy servers
• SIP UDP/TCP/TLS support
• SIP support SIP domain, SIP authentication (none, basic, MD5), DNS name of server, Peer to Peer/IP Call
Supplementary Call Feature
• Call Transfer (Blind, Attend and Early Attended Transfer)
• Call Hold
• Call Waiting
• Redial
• Call completion
• MWI
• Flexible dial plan
• Barring function for outgoing calls
• Do Not Disturb
• Auto Answer
• Anonymous Call/Rejection
• Dial without registration
• Call logs with missed/incoming/outgoing calls
• DTMF hidden
• Action URL/Active URI
• Multicast
• Web dial
• Emergency call
Security
• Bridge mode
• Static IP, DHCP, PPPoE
• 802.1X
• VPN: L2TP (Basic Unencrypted)
• OpenVPN (Attention! This function is not available with the devices that shipped to the territory of the Customs Union states.)
• VLAN
• QoS
User interface/network management
• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
• Multi languages displayed (Web)
• Web-based Packet Dump
• Configuration Export/Import
• Firmware Upgrade
• Syslog
Dimensions
• 213 x 170 x 130 mm
Power
• Power Adaptor (not included)
• Output: DC 5V/1А
• Ethernet cable (PoE) 802.3af
Power Consumption
• Typical: 2.5 Watt (Standby)
• Max.: 2.8 Watt (Talking)
Temperature
• Operating: 0° to 40°C
Humidity
• Operating: 10% to 65 % (no-condensing)
Certifications
• FCC
• CCC
• CE
• RoHS
