Description

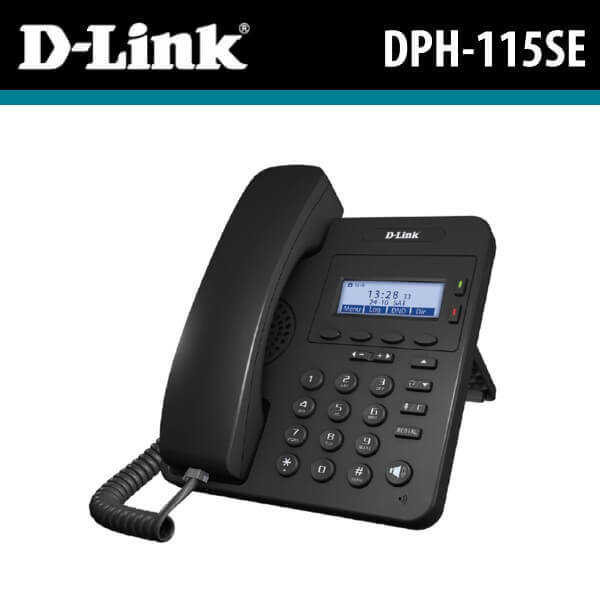

Dlink DPH115SE Dubai
The Dlink DPH115SE Dubai IP Phones are designed for various office users, from VSE, SOHO to SMB, for VoIP communication. Featuring a sophisticated and elegant design, this platform delivers high performance and offers versatile features and specifications to accommodate different environment requirements. It can be installed on LAN/DSL/Cable network environments and registered to SIP registrar Server(s), soft switch(es), IP-PBX(s), or IMS-based systems, allowing SIP-enabled terminals to communicate. Additionally, users can connect their PC to this phone instead of the LAN directly. The phone is equipped with a plastic housing and accessories including a handset, handset cord, keypad, keys, and wall-mounting kit. The LCD display on the panel provides a direct visual interface for the user, who can configure the phone using the keypad/LCD or a web browser.
KEYPAD FEATURES
+ 4 Soft keys for doing more functions
+ 9 Function keys
+ 4 Navigator Keys for configuration
+ Hold
+ Call forward
+ Three-party conference
+ MWI
+ Headset
+ Redial
+ Speaker
+ 12 numeric keys with star & pound key
+ Mute
+ Vol – / Vol +
PHONE FEATURES
+ Multi-user (2 SIP accounts)
+ Caller ID display
+ Call History: 400 Calls
+ Enterprises Phonebook 2000 entries
+ Personal Phonebook 1000 entries
+ Day/Time display
+ Call/Time display
+ 8 Selective Ring tones
+ 9 Speed dial number
+ Incoming call indicator
+ Flexible dial map
+ Password control for Configuration
+ Pre-dial before sending
+ MWI
+ SMS
+ Keypad lock
+ Emergency call
+ Customize DSS key/ soft key
TECHNICAL SPECIFICATIONS
NETWORK INTERFACE AND I/O PORTS
2xRJ45 10/100M Ethernet ports
2 LEDs: 2* account lights, including MWI (L1)
1* RJ9 handset port
Power adapter: AC 100~240V input and DC 5V/1A output
PHONE FEATURES
– 2 SIP accounts, MWI(Line1)
– Call hold, Call waiting, Call forward, Call return;
– Call transfer (blind/busy/ask)
– Caller ID display, Redial, Mute, DND
– Auto-answer, 3-way conferencing
– Speed dial, SMS, Voicemail
– Tone scheme, Volume control
– Direct IP call without SIP proxy
– Ring tone selection/import/delete
– Black list
– Call history: dialed/received/missed/call forwarding
– Soft keys programmable, Supports PC control
– Multi-Language: Chinese, English, French, Russian, Italian, Portuguesa, Portuguesa-Brasil, Spanish, Turkish
PHYSICAL FEATURES
– 128*64 graphic LCD with back light
– 25 keys, including 9 programmable keys, 2 LEDs: 2* account lights, including MWI(L1)
– 1* RJ9 handset port – 2xRJ45 10/100/1000M Ethernet ports
– Power adapter: AC 100~240V input and DC 5V/1A output
– POE ,IEEE 802.3af,class 0
– Power consumption: 1.5W
– Net weight: 0.62kg
– Dimension: 180x157x33mm
– Operating humidity: 10~95%
– Storage temperature: up to 60°C
NETWORK FEATURES
– SIP v1 (RFC2543), v2 (RFC3261)
– SIP connection: Proxy mode & Peering Points mode;
– SRTP voice encryption(RFC3711)
– Redundant server support
– NAT Traversal: STUN mode
– DTMF: In-Band, RFC2833, SIP Info, Auto
– HTTP Web Management
– IP Assignment: Static/DHCP/PPPoE
– Bridge/Router mode for PC port
– TFTP/DHCP/PPPoE client
– Telnet/HTTP/HTTPS server, DNS client, NAT/DHCP server
