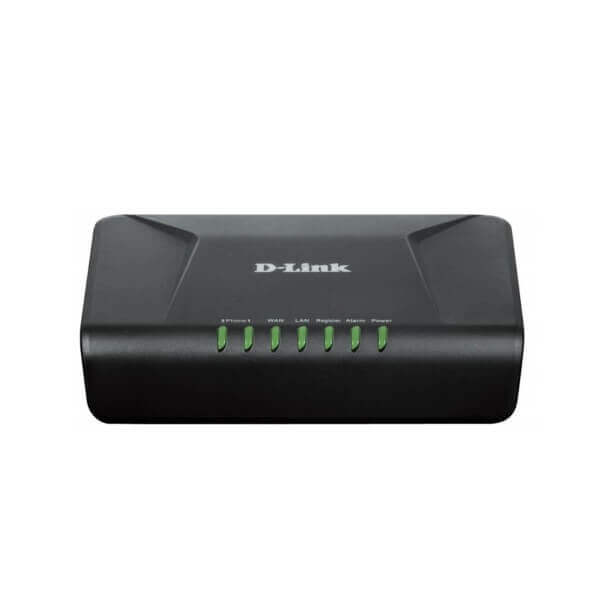

Dlink DVG5102S Dubai

The Dlink DVG5102S Dubai allows connection to two standard phone sets, enabling users to make Internet phone calls globally. This VoIP TA facilitates simultaneous Internet phone calls for two individuals and incorporates user-friendly Interactive Voice Response functions.

Category:

Description

Dlink DVG5102S Dubai

The Dlink DVG5102S Dubai allows connection to two standard phone sets, enabling users to make Internet phone calls globally. This VoIP TA facilitates simultaneous Internet phone calls for two individuals and incorporates user-friendly Interactive Voice Response functions. Users can conveniently query and set up the device using a phone set without the need to turn on a PC.

TECHNICAL SPECIFICATIONS

IP Network Specifications

WAN: Static IP, PPPoE, DHCP, PPTP and L2TP NAT Functions Support up to 250 Clients Port Forwarding (Virtual Servers) DMZ Support IPv4, IPv6(optional) QoS Support: WAN: DiffServ, IP Precedence, Priority Queue Rate Control, 802.1Q (VLAN Tagging), 802.1p (Priority Tag) LAN: Rate Limit DDNS Support Network Protocol Support: IP, TCP, UDP, TFTP, FTP, RTP, RTCP, ARP, ICMP, NTP,DHCP, STUN Client, HTTP, HTTPS, DNS, DNS SRV, Telnet, UPnP, IGMP, IGMP snooping, IGMP proxy, RTSP ALG, SIP ALG

Voice Features

  • G.722 64kbps, G.711 a/µ-law, G.729A, G.726, G.723.1 GSM 6.10 Full Rate, iLBC 13.3 kbps
  • DTMF Detection and Generation
  • Silence Suppression & Detection
  • Comfort Noise Generation (CNG)
  • Voice Activity Detection (VAD)
  • Echo Cancellation (G.168)
  • Dynamic Jitter Buffer
  • Call progress tone detection (FXO) and generation (FXS)
  • Programmable Gain Control
  • Inbuilt Local Mixer ITU-T V.152 Voice-band Data over IP Networks

Device Management

  • Web Based Configuration
  • Telnet command line interface (CLI)
  • IVR Configuration
  • FTP / TFTP / HTTP Software Upgrade
  • Configuration Backup and Restore
  • Factory Defaults
  • TR-069, TR-098, TR-104
  • TR-111 part I & II (DHCP option 125)
  • DHCP option 43, 60 Auto Provisioning
  • SNMP V3/ V2c/ V1(optional)

SIP Account Management

  • By port registration
  • By device registration (share account)
  • Mixed mode (Hunt number for inbound, by port number for outbound)
  • Invite with Challenge
  • IP Address or Domain Name registration
  • Support RFC3986 SIP URI format

SIP Method Support

  • ACK, BYE, CANCEL, INFO, INVITE, MESSAGE, NOTIFY,
  • OPTIONS, PING, PRACK, PUBLISH, REFER,
  • REGISTER, SUBSCRIBE, UPDATE

SIP Call Features

  • Peer to Peer Call
  • Call Hold / Retrieve
  • Call Waiting
  • Call Pick Up
  • Call Park / Retrieve (SIP Server Required)
  • Call Forward – unconditional, busy, no answer
  • Call Transfer – attended, unattended
  • Do Not Disturb
  • Speed Dialing
  • Repeat Dialing
  • Three-way Calling
  • MWI (RFC-3842)
  • Hot Line and Warm Line

SIP Call Management

  • Support Outbound Proxy
  • Support SIP Compact Form
  • SIP Registration Failover
  • Group Hunting
  • P-Asserted-Identity per RFC3325
  • Privacy Mechanism per RFC3323
  • Session Timers (Update / Re-invite)
  • DNS SRV Support
  • Call Types: Voice / Modem / FAX
  • User Programmable Dial Plan Support
  • Automatic Calling Number Manipulation
  • CDR by RADIUS client
  • Manual Peer Table (for P2P calls)
  • E.164 Numbering, ENUM support

Security Specifications

  • DIGEST Authentication
  • MD5 Encryption
  • DoS Protection
  • Caller Filter by IP address
  • IP Filter
  • SIP/TLS and sRTP(optional)

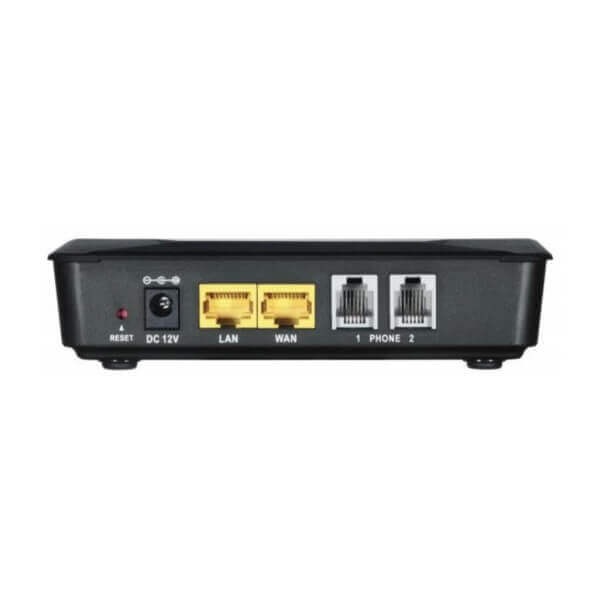

Physical

  • WAN : 1 x 100 baseTx, auto cross-over, auto speed negotiation, RJ-45 connector
  • Telephone : RJ11
  • Factory default
  • Reset button
  • Power jack
