Description

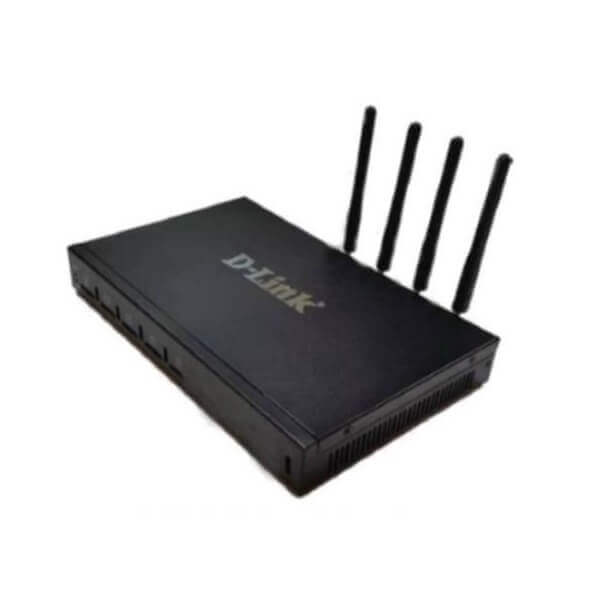

Dlink DVG6004G Dubai

The Dlink DVG6004G Dubai GSM/CDMA VoIP Gateway is a versatile product featuring a built-in antenna power divider for space-efficient installation and easier maintenance. It is designed to seamlessly facilitate the transition between mobile and VoIP networks.

KEY BENEFITS

• 4 GSM/CDMA Channels
• GSM: Quad-band 850/900/1800/1900MHz
• CDMA: 800MHz
• PSTN and VoIP Hotline
• Up to 4 Concurrent Calls
• Flexible Dial Rules and Manipulation

Rules

• SMS Sending and Receiving
• USSD, open API for SMS /USSD
• BCCH
• Carrier Selection
• PIN Code Management

PHYSICAL PROPERTIES

• Power Supply Input:100-240V,50-60Hz Output: DC12V 4.0A
• Power Consumption: DVG-6004G: 25w
• Temperature (Operation): 0 °C~ 45 °C (Storage): -20 °C~80 °C•

Operation Humidity: 10%-90% No Condensation

• Dimension(W/D/H): 250*156*32.5mm
• Weight: 1.069kg
• Package Weight: 2.05kg

MAINTAIN & UPGRADE

• Web Based Configuration
• Telnet Configuration
• Configure Backup/Restore
• Support English and Chinese language
• Firmware upgrade by HTTP/TFTP
• Web & Telnet Login Password Modify
• Factory Reset
• CDR (10000 Lines CDRs Storage Locally)
• Output CDR via Syslog
• Syslog
• Ping and Tracert Test
• Traffic statistics: TCP,UDP,RTP
• VoIP Call Statistics
• PSTN Call statistics: ASR,ACD,PDD
• Voice Dialogist with Loopback
• IVR Customization
• System Logs

MOBILE FEATURE

• Frequency Range: GSM 850/900/1800/1900MHz
• CDMA: 800Mhz
• WCDMA:2100MHz(Optional)
• SMS/SMSC/USSD
• SMS Coding/Decoding: ASCII/UCS2
• Open API Protocol
• PIN Code Management
• Call Duration Limitation for SIM Card/Single Call
• Polarity Reversal （GSM)
• Answer Delay (CDMA)
• Carrier selection
• Caller ID Restriction for Outgoing Call
• BCCH Management
• Call Waiting
• Call Forwarding

NETWORK PROTOCOL

• IP v4, UDP/TCP, PPPoE,DHCP, FTP/TFTP ARP,RARP, NTP
• VPN PPTP
• Encryption: RC4,MD5 (Coming Soon)
• IP v6 (Coming Soon)
• HTTP, Telnet

PHYSICAL INTERFACES

• SIM Card Slot: 4 Channels
• Ethernet Interface: 2 LAN 10/100M Base-Tx RJ45
• Console: 1* RS232 115200bps
• Antennas Connectors: SMA
• LED Indicators: PWR, RUN, Signal Strength, On/Off- hook
• Reset Button
• SIM Card Installation Local SIM/Remote SIM with SIMBank
