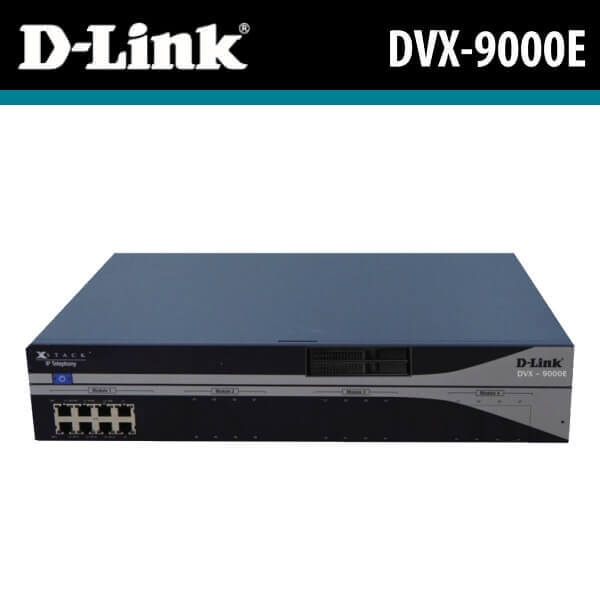

Dlink DVX9000E Dubai
The Dlink DVX9000E Dubai stands out as the ideal choice, particularly well-suited for inbound call centers. This advanced system supports an enhanced switchboard with unlimited buttons, instant messaging, and a voice mail explorer.
The Dlink DVX9000E Dubai enterprise phone system series offers unlimited extensions and accommodates up to 880 concurrent calls under normal settings. In hybrid configurations, it can extend support to as many as 960 analog extensions (utilizing DVX-8050 telephony interfaces), making it an excellent fit for implementations where replacing high-density existing infrastructure is cost-prohibitive, such as in hotels, hospitals, and other organizations. Additionally, the Dlink DVX9000E Dubai is capable of handling up to 24 PRI lines.
Powered by the EasyVoIZ operating system, this phone system delivers a comprehensive set of features at the enterprise level. With additional hot-swappable HDDs and power supplies, the Dlink DVX9000E Dubai is exceptionally well-suited for mission-critical operations.
FEATURES
IP PBX Call & Administration Features
- Wake-up Calls / Reminders
- Auto-Redial / Camp on
- Boss/Secretary + Whitelist
- IP phone provisioning
- Email noti_cations
- Hotel PMS integration
- High-availability
- Storage monitoring
- Disaster Recovery
- Hot-desking
- Personal recording / notes
- User-friendly Web interface
- Video calls
IP PBX Security Features
- Call encryption (SIP TLS, sRTP)
- GUI warnings for potentially unsafe setup
- Intrusion detection and blocking
- Password strength indicator
- Secure password auto-generation
- Secure password indication
- Time-based restrictions
- Weak password report
Call Center Features
- Agent log in / log out
- Barge
- Call monitoring
- Call queues
- Call recording
- Caller Name Lookup
- CDR (Call Details Record)
- Click-to-call
- Presence (agent status)
- Reporting
- Time-based routing
- Visual IVR
- Visual switchboard
- Visual queues
- Whisper to agent
Unified Communications
- Audio conferencing
- Call recordings access
- Corporate phone book
- Fax-to-email
- Fax from web
- Instant messaging / chat
- One number reach
- Mobile phone integration
- Multiple devices per user
- Switchboard
- Personal call log
- Personal extension settings
- Personal IVR
- Voicemail to e-mail
- Visual voicemail
- User portal: access to
- voicemail, fax, and recordings
Software
- Software version: D-Link EasyVOIZ 5.0
- Linux version: CentOS 7
- Asterisk Version: 16.xx
- Security: Intrusion protection software; _rewall protection
- Redundancy: High availability solution for EasyVOIZ systems
Hardware
- Processor : Intel Xeon Processor E3-1225V2 8M cache (3.20GHz)
- RAM : 8GB
- Hard Disk : 2 x 1TB 2.5” SSD
- IPMI : Intelligent Platform Management Interface (IPMI) v.2
- RAID1 : Dual hard drive for increased system reliability
- Fan : 3 redundant fans
- Echo Cancellation Module : Voice enhancement & echo cancellation (optional)
- USB : 2 external USB 2.0
Dimensions and Weight
- Weight : Kg 15.4 Lbs (weight may vary and depends on con_guration)
- Size : 19” 2U industry standard rack-mountable chassis
- Dimensions : 44 x 44 x 9 cm (17.3 x 17.3 x 3.5”)
Power
- Power supply : Internal
- Voltage : Switching, auto adjust 100/240 Volts, 50/60Hz 230
- Consumption : Watts (maximum)
Network
- Ethernet port – standard : 10/100/1000 Mb/s (x2)
