Description

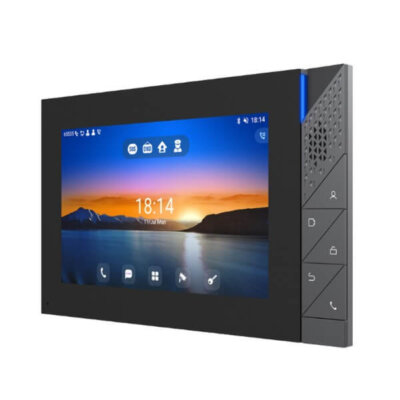

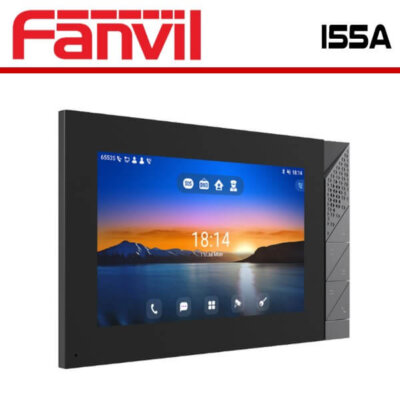

Fanvil i55A SIP Indoor Station Dubai
The Fanvil i55A Dubai indoor station boasts a 7-inch color touch screen with an intuitive user interface. Running on the Android 9.0 operating system, it supports industry-specific application customization and secondary development. With advanced features such as remote door opening and real-time security device monitoring, the Fanvil i55A Dubai is an ideal management tool for communities, villas, and office buildings.
Features
- 7-inch (1024×600) capacitive colour touch screen

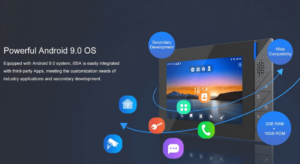

- Android 9.0 operating system, meeting the customization needs of industry applications and secondary development
- Aluminium panel design and five physical buttons, reliable and durable

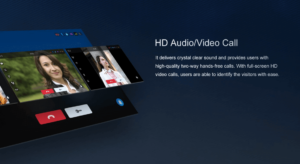

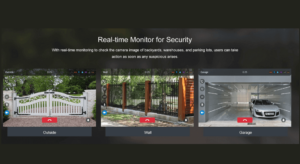

- Check real-time video of door phones with H.264 video codec and 1080P high resolution
- HD voice speech quality with built-in 1.5W double speakers and Acoustic Echo Canceller
- Built-in Bluetooth 5.0 and 2.4GHz/5G WiFi

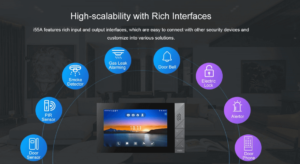

- Support RS-485, 8 alarm input interfaces and 2 embedded relays
- Support PoE, wall-mounted installation
Specifications
General
- 2 SIP Lines
- HD Voice
- PoE
- 1 x LCD : 7-inch 1024*600 Color Touch Screen
- External Power Supply(Optional)
- RAM/ROM：2G/16G
Operating System
- Android 9.0 OS with higher security and better compatibility
- Support 3rd Party Applications
- Secondary Development of API
Device Features
- Local Phonebook (1000 entries)
- Remote Phonebook
- Call logs (In/out/missed, 1000 entries)
- Blocked List/Allowed List
- Screen saver
- Voice Message Waiting Indication (VMWI)
- Programmable DSS/Soft keys
- Network Time Synchronization
- Built-in Bluetooth 5.0
- Built-in Wi-Fi
- 4GHz, 802.11 b/g/n
- 5GHz, 802.11 a/n/ac
- Miracast
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background Noise Estimation (BNE)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive litter Buffer up to 300ms
- DTMF : In-band, Out of Band DTMF (RFC2833) / SIP INFO
Video
- Hardware video decoding : H.264
- Video call resolution : QVGA / CIF / VGA / 4CIF / 720P / 1080P
Network
- 10/100 Mbps Ethernet
- IP Mode : IPv4
- IP Configuration : Static / DHCP
- VPN : OpenVPN (Requires third-party app support)
- Wi-Fi
Protocols
- SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
- DNS A/SRV/NAPTR
- RTP/RTCP/SRTP
- RTSP
- STUN
- DHCP
- OpenVPN (Requires third-party app support)
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Call Features
- Call out / Answer / Reject
- Mute / Unmute (Microphone)
- Call Hold / Resume
- Call Waiting
- Intercom
- Caller ID Display
- Speed Dial
- Anonymous Call (Hide Caller ID)
- Call Forwarding (Always/Busy/No Answer)
- Do-Not-Disturb
- Auto-Answering
- Hot Line
- IP call
Deployment & Management
- Action URL / Active URI
- SIP Hotspot
- Custom Ringtone
- Multicast
- Action Plan
Audio
- Wideband ADC/DAC 16KHz sampling
- Narrowband Codec : G.711a/u, G.729AB, iLBc
- Wideband Codec : G.722, opus
- Acoustic Echo Canceller (AEC)
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
- Web Management Portal
- Supports Web
- Supports encrypted configuration files download withAES
- Supports Web upgrade
- Supports factory data reset
Physical Specifications
- 5 keys (Manager center key/Monitor key/Unlock key/Return(Hang up key)/Answer key)
- 10 Pin Cable x1
- 2Pin Cable x1
- Wall-mount Bracket x1
- Screws Kit x1
- RJ45 interface x1
- Micro USB interface x1
- TF Slot x1
- RS-485 interface x1
- 2 embedded short circuit output interface
- 2 relays : MAX DC30V / 2A, AC125V / 0.5A
- Alarm input interface x8
- Doorbell input interface x1
- Power : DC12V/1A or PoE
- Housing material : ABS & aluminum alloy
- Installation :
- Wall-mounted
- Working temperature : -10 ~ 50℃
- Relative humidity : 10% – 90%
- Equipment Dimension : 217x124x21mm
- Packing Dimension : 257x175x76mm
- Outer CTN Dimension : 405*377*277mm (10 pcs)2 keys (Power, volume +/-)
