Fanvil i57A Dubai

Rating

Fanvil i57A Dubai

The Fanvil i57A Dubai is a robust indoor station featuring a 10.1-inch color touch screen with an intuitive user interface. Running on the Android 9.0 operating system, it supports industry-specific application customization and secondary development.

Description

Fanvil i57A SIP Indoor Station Dubai

The Fanvil i57A Dubai is a robust indoor station featuring a 10.1-inch color touch screen with an intuitive user interface. Running on the Android 9.0 operating system, it supports industry-specific application customization and secondary development. The i57A boasts powerful functionalities, including real-time monitoring and remote door access for security devices. It serves as an ideal management assistant for communities, villas, and office buildings.

Features

  • 10.1-inch (1024×800) capacitive color touch screen
  • Android 9.0 operating system, meeting the customization needs of industry applications and secondary development
  • Aluminum panel design, reliable and durable
  • Built-in cool lighting effects, which can be set as status indicators
  • Check real-time video of door phones with H.264 video codec and 1080P high resolution
  • HD voice speech quality with built-in 2W speaker and Acoustic Echo Canceller
  • Fanvil i57A Dubai has built-in Bluetooth 5.0 and 2.4GHz/5G WiFi
  • Support RS-485, 8 alarm input interfaces and 2 embedded relays
  • Fanvil i57A Dubai has integrated Micro USB interface and maximum 256GB capacity TF card slot
  • Support PoE, Support wall mounting

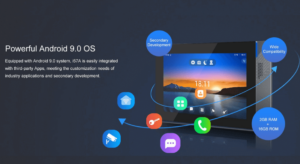

fanvil i57a uae 300x164 - Fanvil i57A Dubai

Technical Specifications

Generic

  • 2 SIP Lines
  • HD Voice
  • PoE
  • 1 x LCD : 10.1-inch 1280×800 Color Touch Screen
  • External Power Supply(Optional)
  • RAM/ROM:2G/16G

Operation System

  • Android 9.0 OS with higher security and better compatibility
  • Support 3rd Party Applications
  • Secondary Development of API

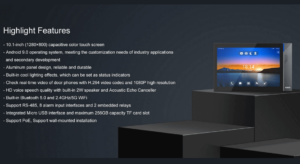

fanvil i57a indoor station dubai 300x164 - Fanvil i57A Dubai

Device Features

  • Local Phonebook (1000 entries)
  • Remote Phonebook
  • Call logs (In/out/missed, 1000 entries)
  • Blocked List/Allowed List
  • Screen saver
  • Voice Message Waiting Indication (VMWI)
  • Programmable DSS/Soft keys
  • Network Time Synchronization
  • Built-in Bluetooth 5.0
  • Built-in Wi-Fi
  • 2.4GHz, 802.11 b/g/n
  • 5GHz, 802.11 a/n/ac
  • Miracast
  • Action URL / Active URI
  • SIP Hotspot
  • Custom Ringtone
  • Multicast
  • Action Plan

Call Features

  • Call out / Answer / Reject
  • Mute / Unmute (Microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Speed Dial
  • Anonymous Call (Hide Caller ID)
  • Call Forwarding (Always/Busy/No Answer)
  • Do-Not-Disturb
  • Auto-Answering
  • Hot Line
  • IP call

Audio

  • Wideband ADC/DAC 16KHz sampling
  • Narrowband Codec : G.711a/u, G.729AB, iLBc
  • Wideband Codec : G.722, opus
  • Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/Background Noise Estimation (BNE)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive litter Buffer up to 300ms
  • DTMF : In-band, Out of Band DTMF (RFC2833) / SIP INFO

Video

  • Hardware video decoding : H.264
  • Video call resolution : QVGA / CIF / VGA / 4CIF / 720P / 1080P

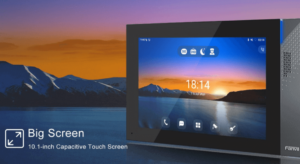

fanvil i57a indoor station sharjah 300x164 - Fanvil i57A Dubai

Network

  • 10/100 Mbps Ethernet
  • IP Mode : IPv4
  • IP Configuration : Static / DHCP
  • VPN : OpenVPN (Requires third-party app support)
  • WI-FI Security Mode:WPA /WPA2-PSK/802.X EAP

Protocols

  • SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
  • DNS A/SRV/NAPTR
  • RTP/RTCP/SRTP
  • RTSP
  • STUN
  • DHCP
  • OpenVPN (Requires third-party app support)
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Deployment & Management

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
  • Web Management Portal
  • Supports Web
  • Supports encrypted configuration files download with AES
  • Supports Web upgrade
  • Supports factory data reset

Physical Specifications

  • 2 keys (Power, volume +/-)
  • TF card interface (MAX : 256G) x1
  • 10 Pin Cable x1
  • 2Pin Cable x1
  • Wall-mount Bracket x1
  • Screws Kit x1
  • RJ45 interface x1
  • Micro USB interface x1
  • RS-485 interface x1
  • 2 embedded short circuit output interface
  • 2 relays : MAX DC30V / 2A, AC125V / 0.5A
  • Alarm input interface x8
  • Doorbell input interface x1
  • Power : DC12V/1A or PoE
  • Power Consumption (Adapter):1.45~8.78W
  • Power Consumption (PoE):1.88~10.76W
  • Housing material : ABS & aluminum alloy
  • Installation : Wall-mounted
  • Working temperature : -10 ~ 50°C
  • Relative humidity : 10% – 90%
