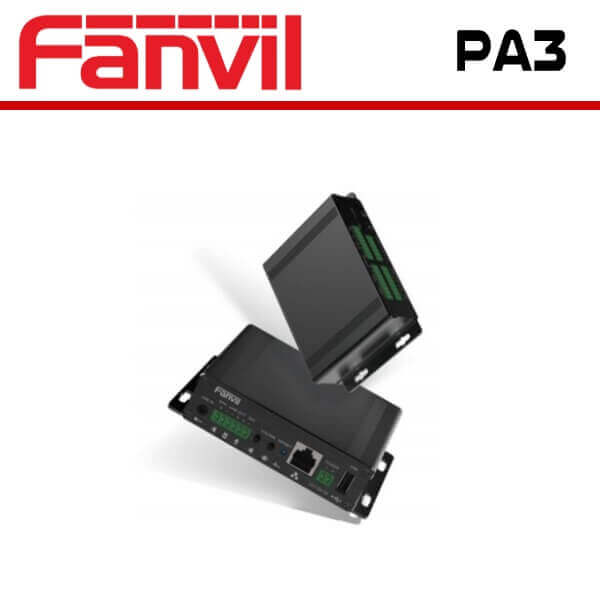

Fanvil PA3 SIP Paging Gateway Dubai

The Fanvil PA3 Dubai is meticulously designed to accommodate a wide range of internal installations, with a primary focus on public broadcasting. This device is equipped with HD audio capabilities, ensuring exceptional audio clarity for its users. As a high-performing Paging Gateway, it boasts numerous advanced features that significantly enhance the overall communication experience.

The Fanvil PA3 Dubai is versatile, offering functionalities for both real-time and scheduled MP3 broadcasting. Additionally, it supports one-touch intercom functionality when connected to external devices, making it an excellent choice for those looking to create a customized integrated broadcasting solution. This makes the Fanvil PA3 ideal for use in various settings such as campuses, shopping malls, railway stations, and office buildings.

Among its robust features, the Fanvil PA3 includes 2 SIP lines and a blue LED status indicator light that notifies users of the device’s different operational modes. It also comes with a 10/100Mbps Gigabit Ethernet port that supports Power over Ethernet (PoE), facilitating a seamless and efficient power supply. Furthermore, the device is designed for flexible installation options, supporting both desktop and wall mounting configurations to suit various environments.

In summary, the Fanvil PA3 Dubai is a comprehensive and versatile solution for internal public broadcasting needs, offering advanced audio clarity, flexible broadcasting options, and easy installation, making it a perfect choice for diverse applications.

Features:

• 2 SIP Lines
• 1 Speaker Interface and 1 Microphone Interface
• 1 Audio in and 1 Audio out Interface
• Support the USB or TF card Connectivity Max to 32G
• 2 Interfaces of Programmable Keys with Indicator Light
• 1 Blue LED Status Indicator Light
• Support PoE (Class 4)
• Support Desktop and Wall-mounted Mode
• HD Audio
  • For Public Broadcasting with Wideband codec G.722 and Opus, Fanvil PA3 brings the users a crystal-clear telecom auditory experience.
• Perfect Choice for Secondary Development
  • The Fanvil PA3 is equipped with several rich interfaces which enable you to turn your Paging Gateway into a broadcasting device, amplifier, and intercom, therefore meeting different communication requirements.
• Achieve the Real-time and Fix-time Broadcasting
  • Connected to the USB or TF card max to 32G, Fanvil PA3 can be used to do the MP3 offline local broadcast as well as the online broadcast.
• Video Linkage with IP Camera
  • Users can view the HD video image of the camera on the IP phone through Fanvil PA3, for monitoring the surrounding situation in real-time.
• Tiny Design for Limited Space
  • Small and stylish, Fanvil PA3 is suitable for the limited space in most application scenarios.

Technical Specifications

Generic

• 2 SIP Lines
• Speed dial
• Linkage with IP camera to realize video intercom
• Oral announcement of the IP address(in English)
• MP3 broadcasting
• Support programmable DSS key ports
• Support mono active speaker
• Support audio line-in
• Support TF card and USB flash drive
• PoE enabled

Device Functions

• Auto-answering
• Programmable DSS keys
• Through button or web page volume adjustment
• Network time synchronization
• Dynamic multicast function
• Support recording (through USB flash drive or server)
• Action URL/Action URI

Call Functions

• Call out/answer/reject
• Call waiting
• Intercom, Multicast
• Speed dial
• Anonymous call (Hide caller ID)
• Call parking/pick-up (depending on the server)

Audio

• Narrowband codec: G.711A/U, G.729A/B
• Wideband codec: G.722, Opus
• Full-duplex hands-free speakerphone with AEC
• DTMF: In-band, Out-of-Band (RFC2833/SIP INFO)

Network

• Physical: 10/100 Mbps Ethernet
• IP mode: IPv4/IPv6/IPv4&IPv6
• IP configuration: Static IP/DHCP/PPPoE
• VPN: L2TP/OpenVPN

Protocols

• SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment & Management

• Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
• Web management portal
• Web-based packet dump
• Configuration export/import
• Firmware upgrade
• Syslog

Physical Specifications

• Keypad: 3 keys, including
  • 2 volume control keys (up/down)
  • 1 reset key (soft reset)
• DC port x1: DC power input
  • Port: 2 Pin terminal socket
• RJ45 port x1: connect the network
  • PoE enabled
• Blue LED x1: (SIP status and network status)
• Line in port x1: connect audio line input
  • Port: 3.5mm standard audio port
• Line out port x1: connect the active speaker
  • Out: adjustable by volume, max up to 1.2Vpp
  • Port: terminal socket
• MIC in port x1: connect the MIC
  • Electret condenser MIC is recommended
  • Sensitivity: -38dB, impedance 2.2k ohm, bias voltage 2.54Vpp
  • Port: terminal socket
• Passive speaker port x1: connect the speaker
  • Output power: 4Ω, PoE/10W, 12V/10W, 18V/20W, 24V/30W; related to power supply voltage.
  • Wire diameter: 18AWG or higher.
  • Port: terminal socket
• DSS keys port x2: connect the external buttons (support LED)
  • LED: Output 5.0Vdc/5mA.
  • Port: 8 pin terminal socket
• TF card slot x1: connect TF card
• USB 2.0 port x1: Connect USB flash drive, broadcast local audio files.
• DC power input: DC12V~24V/2A
• PoE level: Class 4
• Working temperature: -20C~50C
• Storage temperature: -30C~60C
• Working humidity: 10~95%
• Installation: Desktop stand/ Wall-mounted
• Colour: black
• Device dimensions: 125×84.2x31mm
• Gift box dimensions: 147x114x58mm
• Outer CTN dimensions: 310x248x322mm (20pcs)
