Fanvil W611W Dubai

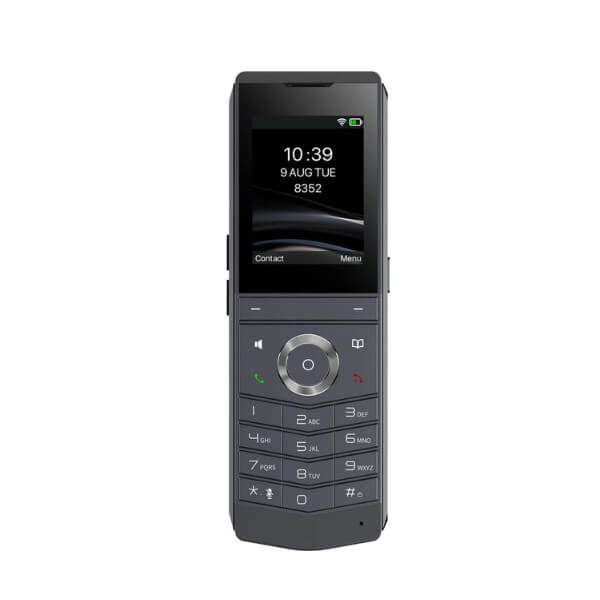

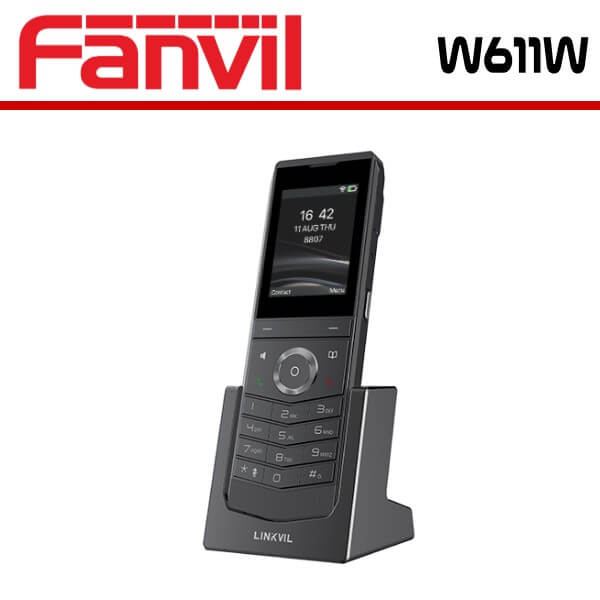

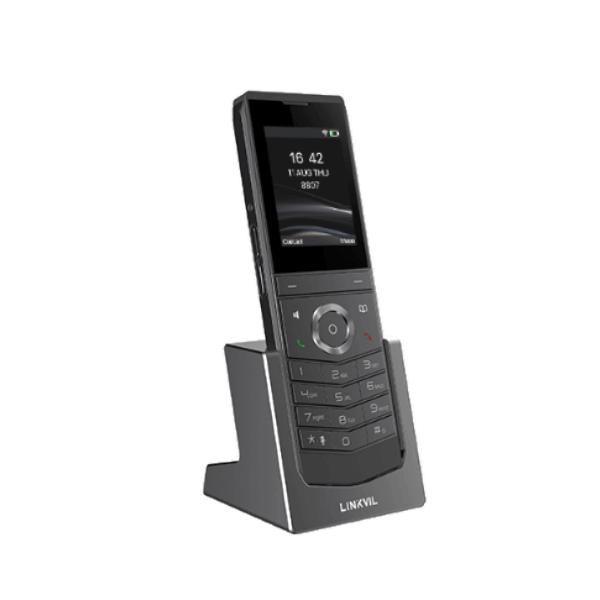

Fanvil W611W Dubai is a portable, elegant WiFi phone designed for mobile communication applications. Certified to IP67 standard, W611W is highly waterproof, dustproof, and drop-safe from 1.2-meter height. It has an excellent performance in different environments with humidity and dust.

Description

Fanvil W611W Wi-Fi Phone Dubai

Fanvil W611W Dubai is a portable, elegant WiFi phone designed for mobile communication applications. Certified to IP67 standard, W611W is highly waterproof, dustproof, and drop-safe from 1.2-meter height. It has an excellent performance in different environments with humidity and dust. With built-in 2.4G/5G Wi-Fi, W611W also integrates WiFi 6, Installed with a rechargeable 1900mAh battery, W611W is ready for 10 hours’ talk time or 200hours standby time. Fanvil W611W Dubai is widely used in various wireless scenarios such as enterprises, shopping malls, residential areas, hotels and warehouses, providing users with a high-quality mobile communication experience.

fanvil w611w wireless ip phone sharjah 300x164 - Fanvil W611W Dubai

Features

  • 4″ 240 x 320 color screen with intuitive user interface
  • High protection level of IP67, which is waterproof, dustproof, and drop-safe from a 1.2-meter height
  • Built-in dual-band Wi-Fi (2.4G/5G), integrated 802.11 a/b/g/n/ac/ax Wi-Fi (WiFi 6)
  • Support distance sensor and the self-adaptive light-sensing screen will be off during a call on the handset • One configurable push-to-talk (PTT) button for quick dial
  • Up to 10 hours talk time and up to 200 hours of standby time
  • Equipped with belt clip, which is easy to carry and against the loss
  • Support standard Type-C interface, equipped with charging base

fanvil w611w wireless ip phone dubai 300x164 - Fanvil W611W Dubai

Specifications

Generic

  • 4-inch 240*320 color high-definition LCD display
  • 4 SIP lines
  • Caller ID
  • Handset/Hands-free/Headset Mode• Support custom DSS keys
  • HD Voice
  • Belt clip
  • Desktop charging base
  • Standard type-c interface
  • Rechargeable Lithium Battery
  • Support Wi-Fi 6
  • Support Bluetooth 5.0
  • Support multi language : English/Chinese/German/French/Italian/Portuguese/Russian/Spanish

Phone Features

  • Network time synchronization
  • Local contacts
  • Remote Phonebook (XML/LDAP, 1000 entries)
  • Multi-language optional
  • Call logs
  • Blocked List/Allowed List
  • Screen saver
  • Personalized ringtone settings
  • Screen backlight adjustment
  • Memorandum
  • SMS service
  • Voicemail(MWI)
  • Menu encryption settings
  • Keypad lock/ backlight adjustment
  • Volume adjustment

fanvil w611w sharjah 300x164 - Fanvil W611W Dubai

Call Features

  • Auto-Answering
  • Call out/Answer/Reject
  • Call waiting/Switch
  • Call forwarding
  • Speed Dial
  • Intercom
  • Anonymous calls
  • 3-way Conference
  • Restrict outgoing calls
  • IP direct dial
  • Speed Dial
  • Emergency call
  • Caller ID Display
  • Inquiry (dialing, incoming and outgoing calls)
  • Do-Not-Disturb
  • PTT one-key call
  • Self-adaptive light-sensing screen off (during a call on the handset)

Audio

  • Narrowband Codec : G.711a/u, G.729AB,iLBC
  • Wideband Codec : G.722, Opus
  • Acoustic Echo Cancellation (AEC)- maximum 96ms echo delay cancellation
  • Voice Activity Detection(VAD)/ Comfort Noise Generation(CNG)/ Background Noise Estimation (BNE)
  • Packet Loss Concealment
  • Dynamic adaptive jitter cache up to 300ms
  • DTMF : In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIPINFO

fanvil w611w dubai 300x164 - Fanvil W611W Dubai

Network

  • Built-in Wi-Fi, support 802.11 a/b/g/n/ac/ax protocol : 2.4GHz IEEE 802.11 b/g/n/ax 5GHz IEEE 802.11a/n/ac/ax Encryption:WPA /WPA2-PSK,1XEAP
  • Built-in Bluetooth 5.0 module

Power Management

  • Reminder when charging
  • Full reminder
  • Low battery prompt
  • After abnormal shutdown, the charging will automaticallystar
  • Real-time statistics/display of system power

Protocols

  • RTP/RTCP/SRTP
  • STUN
  • HCP
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Deployment and Maintenance

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCPOPT66/SIPPnP/TR-069
  • Web management interface
  • Web-based Packet-dump
  • Configuration export/import
  • Firmware upgrade
  • Syslog

fanvil w611w ip phone uae 300x164 - Fanvil W611W Dubai

Physical Specifications

  • Protection class : IP67
  • Drop height : 1.8m
  • Shell material : plastic shell, two-color injection molding
  • Charging Base x1
  • Belt Clip x1
  • Rechargeable Battery x1 1900mAh
  • DC input : 5V/2A
  • Charging port : Type-c
  • Headphone jack : 3.5mm standard jack
  • Installation method : Belt Clip /Desktop
  • Operating temperature : 0℃~ 45℃
  • Storage temperature : -20℃~ 60℃
  • Relative humidity : 10~95%
  • Product size : 160*53*16mm
  • Product weight : 156g
  • Certificates : CE/FCC/UKCA/RoHS/SRRC
  • Box size : 200*117*103mm
  • Outer box size : 437*254*220mm ((8PCS)
