Description

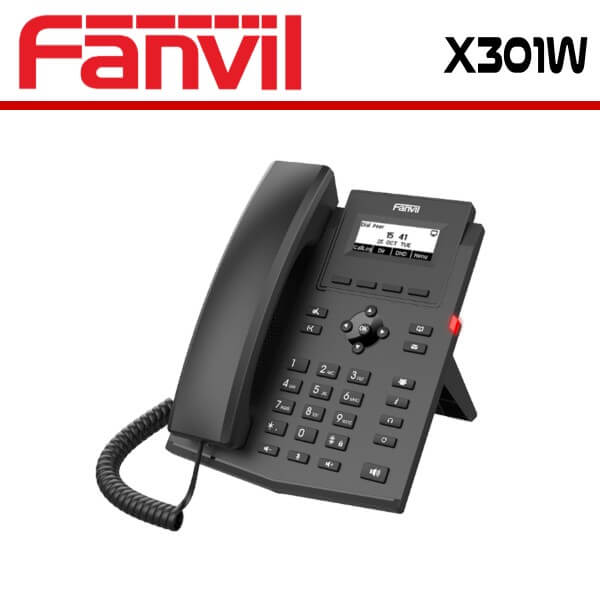

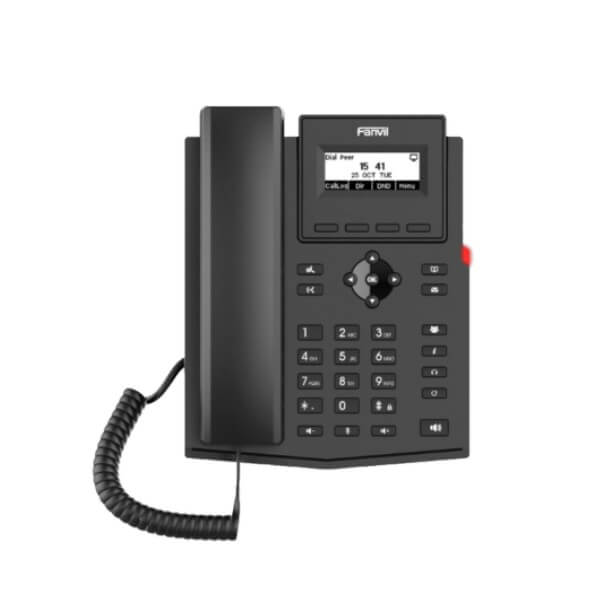

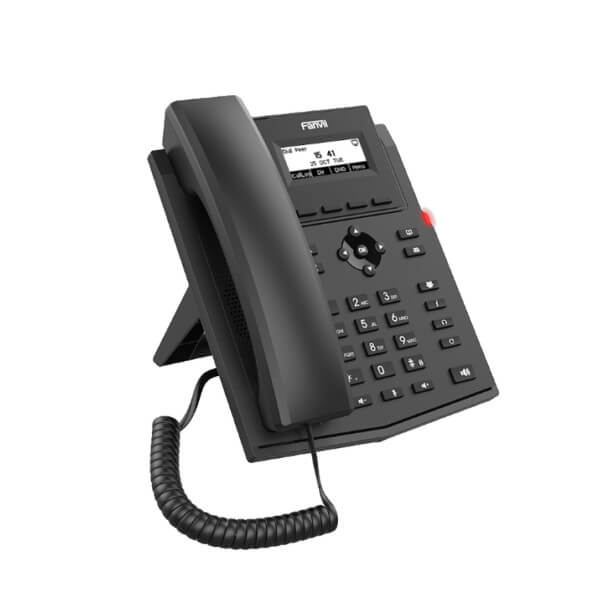

Fanvil X301W Entry Level IP Phone Dubai
The Fanvil X301W Dubai is an affordable Wi-Fi IP phone with multiple functions. It has a 2.3-inch 128×48 pixel dot-matrix display, can support 2 SIP lines, and allows local 6-party conferencing, making it user-friendly. The Fanvil X301W Dubai offers features like HD audio and built-in 2.4GHz & 5GHz Wi-Fi, delivering an effective and high-quality communication experience for businesses.
Key Features
- 2.3-inch 128×48 pixel dot-matrix display
- Supports audio codec G.722 and Opus, HD audio on speakerphone and handset
- Supports 6-party local conference
- Support EHS wireless headset
- Built-in 2.4GHz & 5GHz Wi-Fi, realizing more flexible connectivity
- Two installation methods of desktop stand and wall mountable
Technical Specifications
Generic
- 2 SIP Lines
- HD Voice
- PoE Enabled
- Built-in 2.4GHz & 5GHz Wi-Fi
- Dot-matrix display screen
- Handset / Hands-free / Headset mode
- Desktop Stand / Wall mountable (optional)
- Optional External Power Supply
Phone Functions
- Local Phonebook (1000 entries)
Remote Phonebook (XML/LDAP, 1000 entries) - Call logs (In/Out/Missed, 600 entries)
- Blocked List/Allowed List
- Voice Message Waiting Indication (VMWI)
- Programmable DSS/Soft keys
- Network Time Synchronization
- Built-in Wi-Fi
- 2.4GHz, 802.11 b/g/n
- 5GHz, 802.11 a/n/ac
- Support Plantronics wireless headset (Through PlantronicsAPD-80 EHS Cable)
- Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
- Support Recording (Through Server)
- Action URL / Active URI
- uaCSTA
Call Functions
- Call out / Answer / Reject
- Mute / Unmute (Microphone)
- Call Hold / Resume
- Call Waiting
- Intercom
- Caller ID Display
- Speed Dial
- Anonymous Call (Hide Caller ID)
- Call Forward(Always/Busy/No Answer)
- Call Transfer (Attended/Unattended)
- Call Parking/Pick-up (Depending on server)
- Redial
- Do-Not-Disturb
- Auto-Answering
- Voice Message (with server)
- 6-way Conference
- Hot Line
- Hot desking
Audio
- HD Voice Microphone/Speaker
- Wideband ADC/DAC 16KHz Sampling
- Narrowband Codec : G.711a/u, G.723.1,G.726,G.729A/B, iLBC
- Wideband Codec : G.722, Opus
Network
- Physical : 10/100 Mbps Ethernet, dual bridged port for PC bypass
- IP Mode : IPv4/IPv6
- IP Configuration : Static IP / DHCP / PPPoE
- Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
- Network Access Control : 802.1x
- VPN : L2TP / OpenVPN
- VLAN
- LLDP
- QoS
- RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- IPV6
- LLDP
- PPPoE
- 802.1x
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
- AES128 & AES256
Deployment & Management
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
PNP/TR-069 - Web Management Portal
- Web-based Packet Dump
- Configuration Export / Import
- Phonebook Import/Export
- Firmware Upgrade
- Syslog
Physical Specifications
- LCD : 128×48 pixel graphical LCD with backlight
- Keypad : 33 keys, including
- 4 Soft-keys
- 9 Function keys (Hold/Transfer/Voicemessage/Conference/Phonebook/MWI/Headset/Redial/Hands-free)
- 4 Navigation keys
- 1 OK key
- 12 Standard Phone Digits keys
- 3 Volume Control keys (Up/Down/Mute (Microphone))
- Handset (RJ9) x1
- Standard RJ9 Handset Wire x1
- 1.5M CAT.5E Ethernet Cable x1
- Desktop Stand x1
- Status Indicator Light x1 (Red)
- RJ9 Port x2 : Handset x1, Headset x1
- RJ45 Port x2 : Network x1, PC x1 (Bridged to Network)
- Security Slot x1
- DC Power Input : 5V/0.6A
- Power Consumption(Adapter) : 0.8~1.29W
- Power Consumption(PoE) : 1.25~1.86W
- Working Temperature : 0~45℃
- Working Humidity : 10~95%
- Installation :
- Desktop Stand
- Wall mountable (optional )
- Color : Black
- N.W/CTN : 9.05kg(X301), 8.55kg(X301P)
- G.W/CTN : 9.76kg(X301), 9.26kg(X301P)
- Device Dimensions :
- Desktop Stand (45°) : 169×201.1×177.4 mm
- Desktop Stand (50°) : 169×191.9×185.8 mm
- Wall mountable : 169×120.1×213.7 mm
- Gift Box Dimensions : 250x220x55mm
- Outer CTN Dimensions : 460x300x270mm(10 PCS)
