Flyingvoice FTA5120 Dubai

Rating

Flyingvoice FTA5120 Dubai

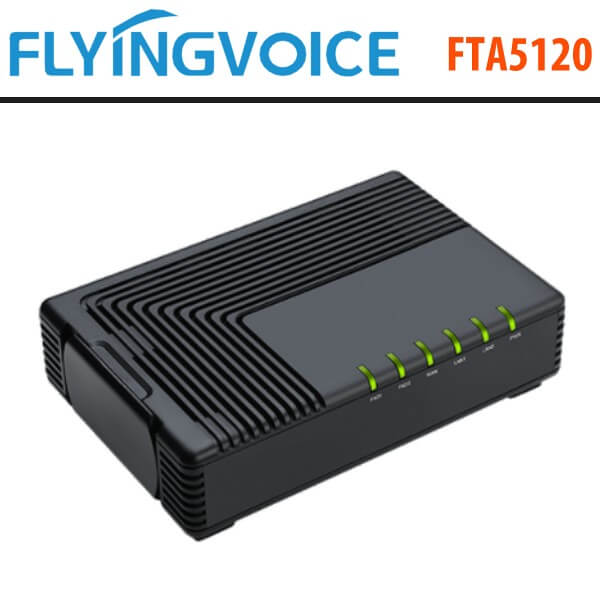

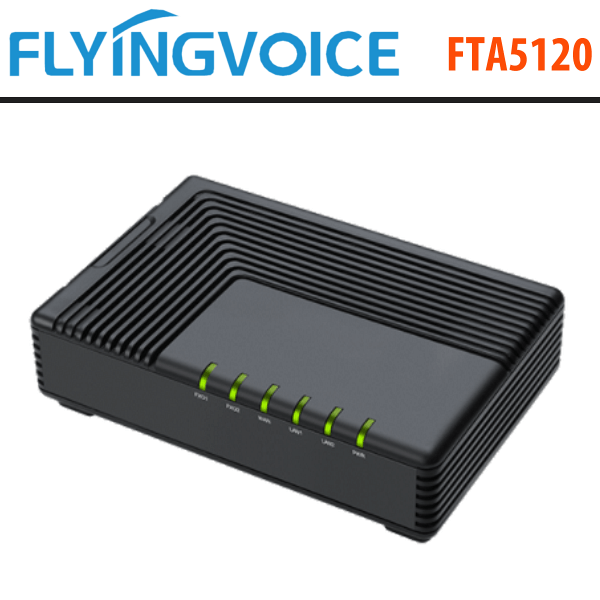

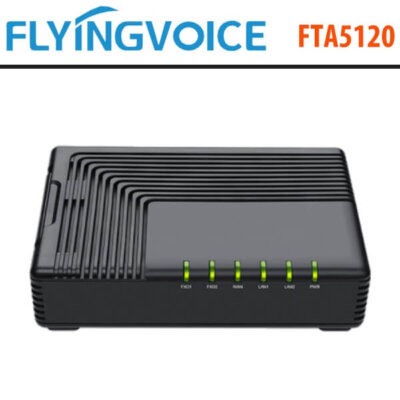

The Flyingvoice FTA5120 Dubai VoIP Adapter is a versatile and powerful device designed for high-quality voice communication and seamless data connectivity.

Description

Flyingvoice FTA5120 VoIP Adapter Gateway Dubai

The Flyingvoice FTA5120 Dubai VoIP Adapter is a versatile and powerful device designed for high-quality voice communication and seamless data connectivity. Equipped with two FXO ports, two LAN ports, and a WAN port, this adapter provides convenient and reliable connectivity for various applications. Additionally, its built-in asterisk can function as a small PBX, offering users the ability to handle two PSTN calls while also supporting high-performance NAT routing. The adapter can also act as a switch, facilitating internal Internet access for connected devices.

Moreover, the Flyingvoice FTA5120 VoIP Adapter includes support for SAS and call type identification functions, allowing it to identify toll calls and prevent the inner line from receiving charged calls with straightforward configuration.

The adapter is a stand-alone device, enabling users to make Internet calls without the need for a computer. It delivers clear and reliable voice calls over the internet, fully compatible with industry standards, and can integrate with a wide range of other SIP devices and software. Supporting the SIP V2 standard, the Flyingvoice FTA5120 VoIP Adapter is compatible with most network service providers and also supports the TR069 CPE Management & Detection Protocol for efficient device management and configuration.

Features

All-in-one Adapter

With 2 FXO ports, FTA5120 VoIP Adapter can provide users with 2 PSTN calls and support high-performance NAT routing function. It can also be used as a small switch to provide internal Internet access.

Caller Identification

Flyingvoice FTA5120 VoIP Adapter support Dubai SAS and call type identification function can identify toll calls, and with simple configuration, the internal line will no longer receive charged calls.

Stand-alone Device

Flyingvoice FTA5120 Dubai Gateway is a stand-alone device, which requires no PC to make convenient and flexible Internet calls.

Broad Compatibility

The Flyingvoice FTA5120 VoIP Adapter Dubai is based on SIP V2 and compatible with most service providers, which brings great convenience when deploying VoIP network.

Easy Management

Flyingvoice FTA5120 Dubai is equipped with advanced management protocols such as SNMP and TR069, which is easy to achieve unified deployment and centralized management.

Specifications

Power

  • AC/DC Adapter
  • AC Input: 100~240V, 50~60Hz
  • DC Output: 12V, 1A

Operating System

  • Linux 2.6.36

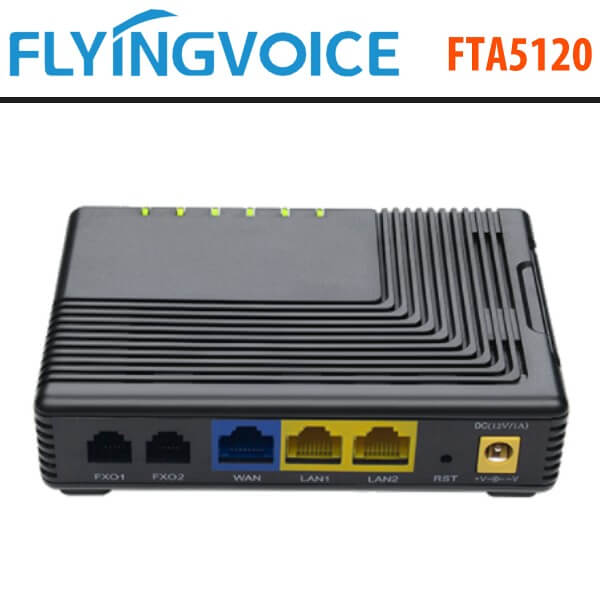

I/O Interfaces

  • 3 RJ-45 for 10/100 Ethernet Ports
  • 2 RJ-11 for FXO Ports
  • Reset key

Environmental

  • Operation Temperature: 0~50 Degree C
  • Storage Temperature: -25~ 85 Degree C
  • Relative Humidity: 10%~90% No Condensing

Management

  • Firmware Upgradeable
  • Web Management Interface
  • IVR-driven Management Interface
  • Local and Remote Syslog (RFC3164) • Auto Provisioning
  • SNTP Time Synchronization
  • Multi User Level • SNMPv2
  • TR069

Protocols

  • SIP V2.0 (RFC 3261, 3262, 3263, 3264)
  • Backward compatible with RFC2543
  • Session timer (RFC4028)
  • SDP (RFC2327)
  • RTP/RTCP (RFC823/903)
  • NAPTR for SIP URI lookup (RFC2915)
  • STUN (RFC2030)
  • ARP/RARP (RFC 826/903)
  • SNTP (RFC 2030)
  • Message Waiting Indicator (RFC3842)
  • DHCP Option Codes for SIP (RFC3361)
  • DNS/DNS SRV (RFC1706 and RFC 2782)
  • 1Q VLAN/802.1p and IP DSCP

Applications

  • NAT/NAPT Router function
  • MAC Address Cloning
  • DHCP Server
  • PPTP/L2TP VPN
  • NAT Traversal by STUN
  • DMZ
  • QoS with Layer 3
  • DHCP Client and DHCP Server
  • IP conflict detection

FXO Features

  • SAS
  • Busy tone detection
  • Voice interrupt detection
  • One-time dialing
  • Dial two times
  • FAS (Fake billing correction) • Impedance configuration
  • Caller ID (DTMF & FSK) • Flash validation time
  • Block Collect Calls
