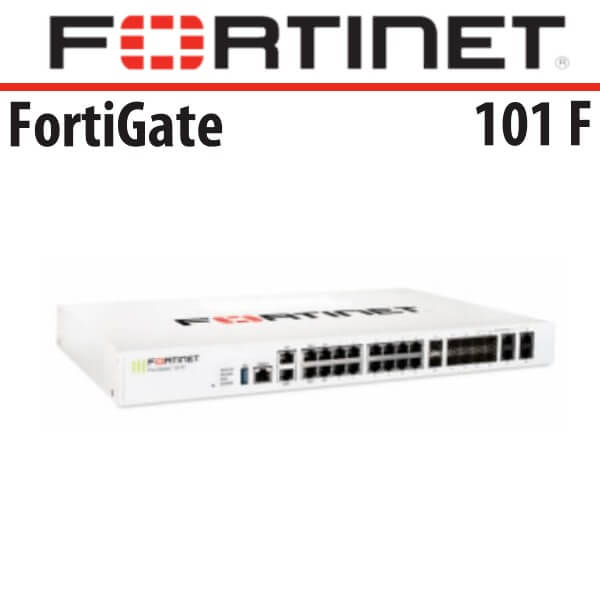

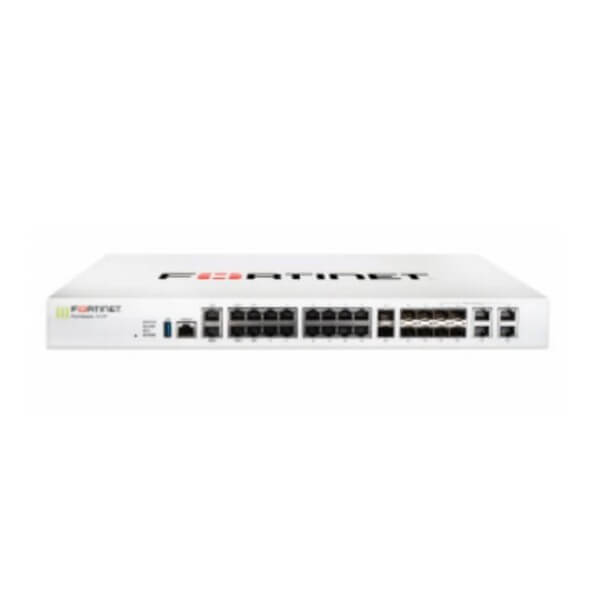

Fortinet Fortigate 101F Firewall Dubai
The Fortigate 101F Dubai Next-Generation Firewall (NGFW) combines advanced security measures and machine learning technology to offer comprehensive threat protection. It provides improved visibility into your network, enabling you to detect potential threats in applications, users, and devices before they can cause damage. The Fortigate 101F Dubai incorporates a wide range of AI/ML security features into a unified security fabric platform, ensuring a secure and automated networking experience. It offers cutting-edge protection for your network, including web, content, and device security, safeguarding it from end to end. Additionally, it simplifies hybrid IT networks with network segmentation and secure SD-WAN, reducing complexity and potential risks. The Universal Zero Trust Network Access (ZTNA) feature ensures strict control, verification, and facilitation of user access to applications, thereby minimizing the risk of lateral threats by granting access only to authorized users. With the Fortigate 101F Dubai, you can experience ultra-fast threat protection and SSL inspection at the edge without compromising performance.
Highlights
- Gartner Magic Quadrant Leader for both Network Firewalls and WAN Edge Infrastructure.
- Security-Driven Networking FortiOS delivers converged networking and security.
- State-of-the-Art Unparalleled Performance with Fortinet’s patented / SPU / vSPU processors.
- Enterprise Security with consolidated AI / ML-powered FortiGuard Services.
- Deep Visibility into applications, users, and devices beyond traditional firewall techniques.
Hardware Features

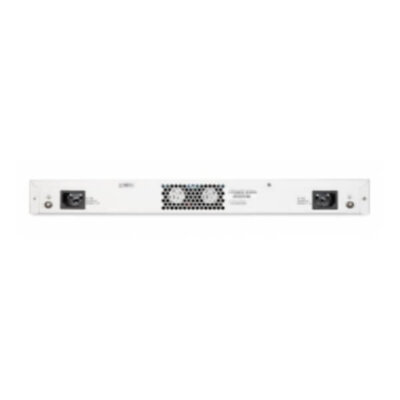

Dual Power Supplies : Power supply redundancy is essential in the operation of mission-critical networks. The FortiGate 101F Dubai offers dual built-in non-hot swappable power supplies.
Access Layer Security : FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.
Specifications
| Interfaces and Modules | |
| Hardware Accelerated GE RJ45 Ports | 12 |
| Hardware Accelerated GE RJ45 Management/ HA/ DMZ Ports | 1 / 2 / 1 |
| Hardware Accelerated GE SFP Slots | 4 |
| Hardware Accelerated 10 GE SFP+ FortiLink Slots (default) | 2 |
| GE RJ45 WAN Ports | 2 |
| GE RJ45 or SFP Shared Ports * | 4 |
| USB Port | 1 |
| Console Port | 1 |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 20 / 18 / 10 Gbps |
| Firewall Latency (64 byte, UDP) | 4.97 μs |
| Firewall Throughput (Packet per Second) | 15 Mpps |
| Concurrent Sessions (TCP) | 1.5 Million |
| New Sessions/Second (TCP) | 56 000 |
| Firewall Policies | 10 000 |
| IPsec VPN Throughput (512 byte) 1 | 11.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
| Client-to-Gateway IPsec VPN Tunnels | 16 000 |
| SSL-VPN Throughput | 1 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 |
| SSL Inspection Throughput (IPS, avg. HTTPS) 3 | 1 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) 3 | 1800 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 | 135 000 |
| Application Control Throughput (HTTP 64K) 2 | 2.2 Gbps |
| CAPWAP Throughput (HTTP 64K) | 15 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 32 |
| Maximum Number of FortiAPs (Total / Tunnel) | 128 / 64 |
| Maximum Number of FortiTokens | 5000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
