Description

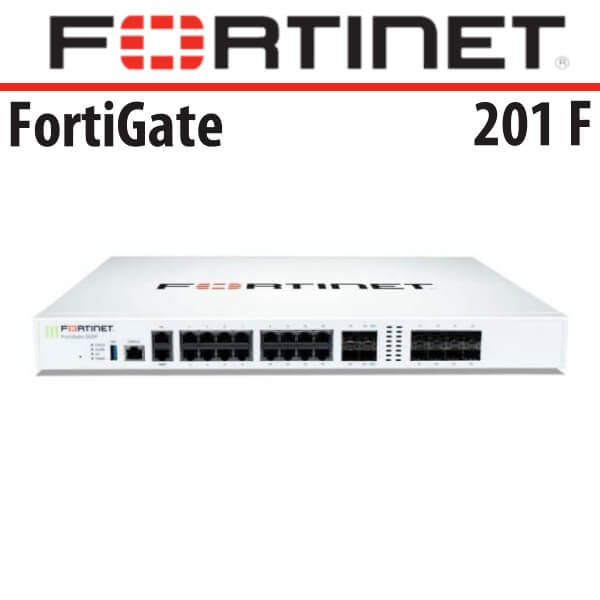

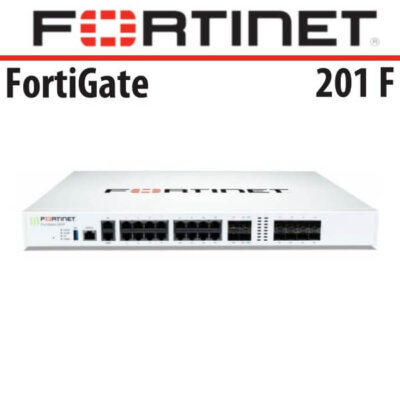

Fortinet Fortigate 201F Firewall Dubai
The Fortigate 201F Dubai Next-Generation Firewall (NGFW) leverages AI-driven security and machine learning to deliver Threat Protection across all scales. It provides an enhanced level of network visibility, allowing you to identify applications, users, and devices proactively before they become security risks. Equipped with a comprehensive suite of AI/ML security features seamlessly integrated into a unified security fabric platform, the Fortigate 201F Dubai guarantees robust, extensive, and automated network security. It safeguards your network from end to end by offering advanced edge protection, covering aspects like web security, content security, and device security. Additionally, it simplifies and reduces risks in hybrid IT networks through network segmentation and secure SD-WAN capabilities.
The Universal Zero Trust Network Access (ZTNA) feature automates control, verification, and user access facilitation to applications, effectively reducing lateral threats by granting access exclusively to authorized users. Furthermore, the Fortigate 201F Dubai ensures ultra-fast Threat Protection and SSL Inspection, ensuring visible edge security without compromising performance.
Fortigate 201F Highlights
- Gartner Magic Quadrant Leader for both Network Firewalls and WAN Edge Infrastructure.
- Security-Driven Networking FortiOS delivers converged networking and security.
- State-of-the-Art Unparalleled Performance with Fortinet’s patented / SPU / vSPU processors.
- Enterprise Security with consolidated AI / ML-powered FortiGuard Services.
- Deep Visibility into applications, users, and devices beyond traditional firewall techniques.
Hardware Features
Trusted Platform Module (TPM)
The Fortigate 201F Dubai features a dedicated module that hardens physical networking appliances by generating, storing, and authenticating cryptographic keys. Hardware-based security mechanisms protect against malicious software and phishing attacks.

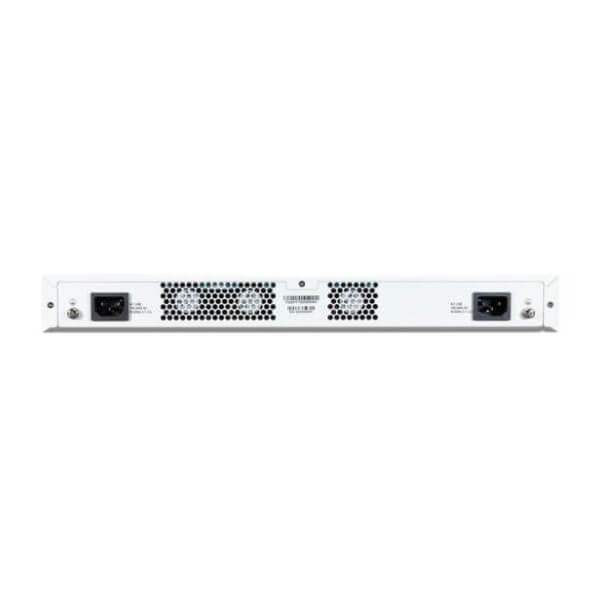

Dual Power Supplies
Power supply redundancy is essential in the operation of mission-critical networks. The Fortigate 201F Dubai offers dual built-in non-hot swappable power supplies.
Access Layer Security
FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.
Specifications
| Interfaces and Modules | |
| GE RJ45 Ports | 16 |
| GE RJ45 Management / HA | 1 / 1 |
| GE SFP Slots | 8 |
| 10 GE SFP+ FortiLink Slots (default) | 2 |
| 10 GE SFP+ Slots | 2 |
| USB Port | 1 |
| Console Port | 1 |
| Onboard Storage | 1x 480 GB SSD |
| Trusted Platform Module (TPM) | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Included Transceivers | 0 |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput 2 | 5 Gbps |
| NGFW Throughput 2, 4 | 3.5 Gbps |
| Threat Protection Throughput 2, 5 | 3 Gbps |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 27 / 27 / 11 Gbps |
| Firewall Latency (64 byte, UDP) | 4.78 μs |
| Firewall Throughput (Packet per Second) | 16.5 Mpps |
| Concurrent Sessions (TCP) | 3 Million |
| New Sessions/Second (TCP) | 280 000 |
| Firewall Policies | 10 000 |
| IPsec VPN Throughput (512 byte) 1 | 13 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
| Client-to-Gateway IPsec VPN Tunnels | 16 000 |
| SSL-VPN Throughput | 2 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 |
| SSL Inspection Throughput (IPS, avg. HTTPS) 3 | 4 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) 3 | 3500 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 | 300 000 |
| Application Control Throughput (HTTP 64K) 2 | 13 Gbps |
| CAPWAP Throughput (HTTP 64K) | 20 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 64 |
