Description

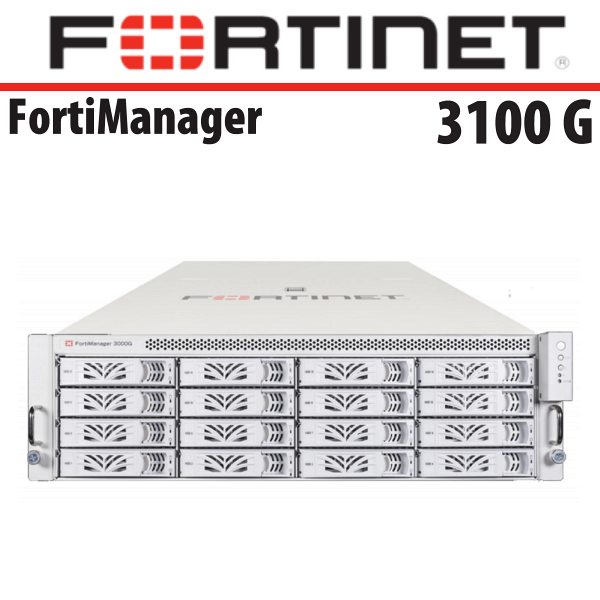

FortiManager3100G Network Management Platform Dubai
The Fortinet FortiManager3100G Dubai, serves as a robust centralized management platform meticulously designed to streamline and enhance the administration of extensive Fortinet security deployments. Tailored for high-performance environments, the FortiManager3100G empowers network administrators to effectively manage complex infrastructures with increased efficiency and ease.
By offering a unified interface, commonly referred to as a “single pane of glass,” it provides comprehensive visibility and centralized control over the entire network. This platform facilitates the efficient provisioning of security devices and policies while incorporating advanced automation tools that optimize management processes and minimize the need for manual intervention. Consequently, the FortiManager3100G enables organizations to establish a more secure, agile, and scalable network infrastructure.
One of the key advantages of the FortiManager3100G Dubai is its scalability, which allows for the seamless management of numerous Fortinet devices and Virtual Domains (VDOMs). Furthermore, the platform boasts advanced reporting capabilities that generate detailed insights into network security, performance, and compliance. It also supports integration with other Fortinet security solutions, such as FortiAnalyzer and FortiGate, thereby facilitating a cohesive and unified security management approach across all Fortinet products.
Specifications:
Capacity and Performance | |
Devices/VDOMs (Default) | 4000 |
Devices/VDOMs (Maximum) | 8000 |
Sustained Log Rates | 150 |
GB/ day | 10 |
Hardware Specifications | |
Storage Capacity | 64 TB (16 x 4TB) |
Usable Storage (after RAID) | 56 TB |
RAID Levels Supported | RAID 0/1,1s/5,5s/6,6s/10/50/60 |
Default RAID Level | 50 |
Hardware Form Factor | 3 RU Rackmount |
Total Interfaces | 2 x GbE RJ45 ports, 2x 25GbE SFP28 ports |
Console Port | DB‑9 |
Removable Hard Drives | ✓ |
Redundant Hot Swap Power Supplies | ✓ |
Trusted Platform Module (TPM) | ✓ |
Dimensions | |
Height x Width x Length (inches) | 5.2 x 17.2 x 25.5 |
Height x Width x Length (cm) | 13.0 x 44.0 x 65.0 |
Weight | 69.6 lbs (31.57 kg) |
Environment | |
AC Power Supply | 100‑127V~/10A, 200‑240V~/5A Hz |
Power Consumption (Average / Maximum) | 395 W / 510 W |
Heat Dissipation | 1740.19 BTU/h |
Operating Temperature | 32°F to 104°F (0°C to 40°C) |
Storage Temperature | ‑40°F to 158°F (‑20°C to 70°C) |
Humidity | 5% to 95% non-condensing |
Forced Airflow | Front to Back |
Operating Altitude | Up to 13 123 ft (4000 m) |
Compliance | |
Safety Certifications | FCC Part 15 Class A, RCM, VCCI, CE, BSMI, KC, UL/cUL, CB, GOST |
