Description

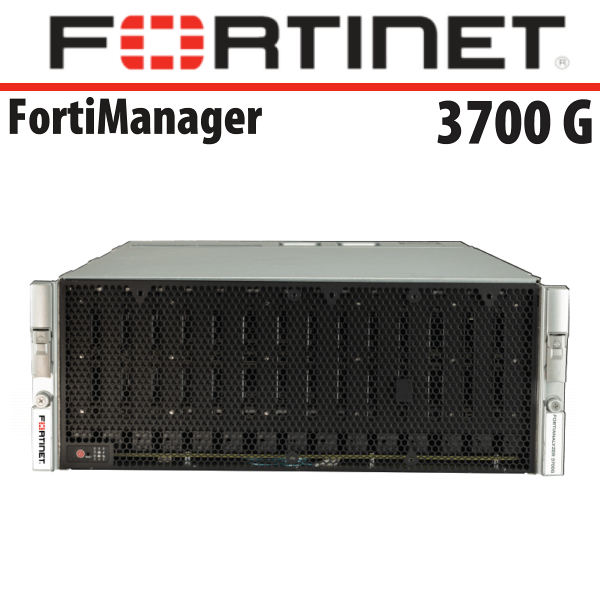

FortiManager3700G Network Management Platform Dubai
The Fortinet FortiManager3700G Dubai is a high-performance centralized management platform specifically engineered to enhance the administration of extensive Fortinet security deployments. This robust solution offers a unified interface—often referred to as a “single pane of glass”—that provides comprehensive visibility and seamless control over the entire network infrastructure. By consolidating management tasks, it simplifies the provisioning process and introduces advanced automation tools, significantly minimizing manual effort and enhancing the efficiency and scalability of network administration for large-scale operations. With its advanced features, the FortiManager3700G Dubai ensures consistent enforcement of security policies and enables rapid adaptation to evolving network requirements.
One of the key advantages of the FortiManager3700G Dubai is its scalability, which facilitates the management of a substantial number of Fortinet devices and Virtual Domains (VDOMs) with ease. Furthermore, the platform boasts advanced reporting capabilities, generating detailed insights on network security, performance, and compliance. It also supports integration with other security solutions, such as FortiAnalyzer and FortiGate, fostering a cohesive and unified approach to security management across all Fortinet products.
Specifications:
Capacity and Performance | |
Devices/VDOMs (Default) | 10 000 |
Devices/VDOMs (Maximum) | 100 000 |
Sustained Log Rates | 150 |
GB/ day | 10 |
Hardware Specifications | |
Storage Capacity | 240TB (60x 4TB) HDD + 19.2TB (6x 3.2TB) NVMe SSD |
Usable Storage (after RAID) | 224 TB |
RAID Levels Supported | RAID 0/1,1s/5,5s/6,6s/10/50/60 |
Default RAID Level | 50 |
Hardware Form Factor | 4 RU Rackmount |
Total Interfaces | 2x 25GE SFP28, 2x 10GE RJ‑45 |
Console Port | DB‑9 |
Removable Hard Drives | ✓ |
Redundant Hot Swap Power Supplies | ✓ |
Trusted Platform Module (TPM) | ✓ |
Dimensions | |
Height x Width x Length (inches) | 7.0 x 17.2 x 30.2 |
Height x Width x Length (cm) | 17.8 x 43.7 x 76.7 |
Weight | 120 lbs (54.6 kg) |
Environment | |
AC Power Supply | 2000W AC 4 |
Power Consumption (Average / Maximum) | 850 W / 1423.4 W |
Heat Dissipation | 4858 BTU/h |
Operating Temperature | 50°F to 95°F (10°C to 35°C) |
Storage Temperature | ‑40°F to 158°F (‑40°C to 70°C) |
Humidity | 5% to 95% non-condensing |
Forced Airflow | Front to Back |
Operating Altitude | Up to 7400 ft (2250 m) |
Compliance | |
Safety Certifications | FCC Part 15 Class A, RCM, VCCI, CE, BSMI, KC, UL/cUL, CB, GOST |
