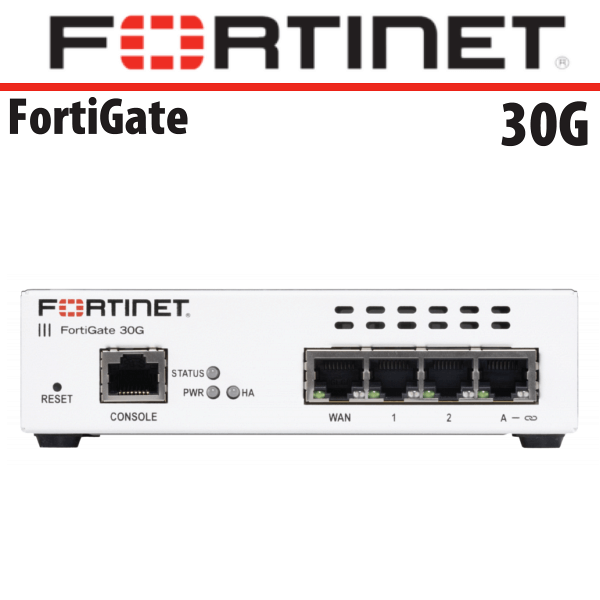

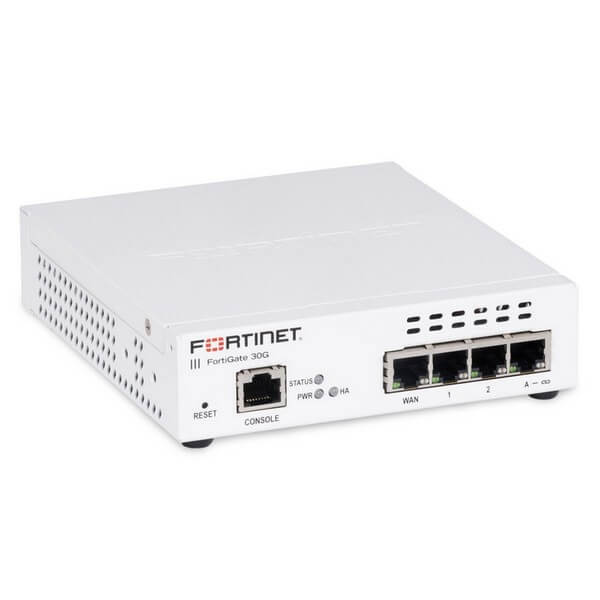

Fortinet30G Dubai

Rating

Fortinet30G Dubai

The Fortinet30G Dubai represents a sophisticated integration of firewall, SD-WAN, and security functionalities within a single appliance, making it an optimal choice for establishing security-driven networks at distributed enterprise locations and transforming WAN architectures across various scales.

Category:

Description

Fortinet30G Firewall Dubai

The Fortinet30G Dubai represents a sophisticated integration of firewall, SD-WAN, and security functionalities within a single appliance, making it an optimal choice for establishing security-driven networks at distributed enterprise locations and transforming WAN architectures across various scales. This device is powered by the FortiOS operating system, featuring the industry’s first converged networking and security solution. This convergence empowers organizations to effectively secure today’s dynamic digital infrastructures.

As a foundational component of the FortiGate Security Fabric platform, the FortiGate Next Generation Firewall (NGFW) seamlessly collaborates with FortiGuard’s AI-powered Security Services to provide coordinated, automated, and real-time threat protection across diverse use cases. The Fortinet30G Dubai is engineered with patented SD-WAN-based ASIC technology, which delivers exceptional performance compared to traditional CPU architectures, all while minimizing costs and power consumption. This application-specific design, combined with an embedded multi-core processor, significantly accelerates the convergence of networking and security functions, optimizing secure connections and enhancing user experiences at branch locations.

The Fortinet30G Dubai includes a comprehensive suite of features designed to bolster network security and performance. Its Next-Generation Firewall (NGFW) offers robust protection against a wide array of cyber threats, including malware, viruses, spyware, and botnets. The device’s SD-WAN capabilities facilitate flexible and efficient WAN connectivity, enabling businesses to enhance network performance while reducing operational costs. Powered by Fortinet’s patented Security Fabric architecture, the Fortinet30G ensures high-performance security without compromising efficiency. Additionally, the device employs AI-driven security measures to detect and block advanced threats in real-time.

An intuitive, web-based interface streamlines configuration and management, enhancing user-friendliness. The Fortinet30G Dubai is also highly scalable, readily adapting to increasing network demands. Furthermore, it supports cloud-based management, enabling centralized monitoring and control of distributed networks.

Specifications:

Hardware Specifications
Hardware Accelerated GE WAN Port 1
Hardware Accelerated GE RJ45 Ports 2
Hardware Accelerated GE RJ45 FortiLink Port (Default) 1
USB Ports
Console Port (RJ45) 1
Trusted Platform Module (TPM)
Bluetooth Low Energy (BLE)
Wireless Interface
System Performance* — Enterprise Traffic Mix
IPS Throughput 800 Mbps
NGFW Throughput 570 Mbps
Threat Protection Throughput 500 Mbps
System Performance
IPv4 Firewall Throughput
(1518 / 512 / 64 byte, UDP)
4/ 4/ 3.9 Gbps
IPv6 Firewall Throughput
(1518 / 512 / 86 byte, UDP)
4/ 4/ 3.9 Gbps
Firewall Latency
(64 byte UDP packets)
2.87 μs
Firewall Throughput
(Packets Per Second)
5.85 Mpps
Concurrent Sessions (TCP) 600,000
New Sessions/Second (TCP) 30,000
Firewall Policies 2000
IPsec VPN Throughput (512 byte) 3.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 250
SSL-VPN Throughput
Concurrent SSL-VPN Users
(Recommended Maximum, Tunnel Mode)
SSL Inspection Throughput
(IPS, avg. HTTPS)
400 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) 260
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 55,000
Application Control Throughput (HTTP 64K) 830 Mbps
CAPWAP Throughput (HTTP 64K) TBA Gbps
Virtual Domains (Default / Maximum) Not Supported
Maximum Number of FortiSwitches Supported 8
Maximum Number of FortiAPs (Total / Tunnel Mode) 16/8
Maximum Number of FortiTokens 500
High Availability Configurations Active-Passive, Active-Active
Dimensions
Height x Width x Length (inches) 1.6 x 5.6 x 6.3
Height x Width x Length (mm) 40.5 x 142 x 160
Weight 1.3 lbs (0.6 kg)
Rack Mount Type NA
Wall Mountable Optional
Form Factor (supports EIA/non‑EIA standards) Desktop
Operating Environment and Certifications
Power Rating 12VDC, 2A
Power Source Powered by external DC power adapter 100-240V AC, 50/60 Hz
Maximum Current 100V/0.11A, 240V/0.055A
Power Consumption (Average / Maximum) 6.8 W / 8.2 W
Heat Dissipation 28 BTU/hr
Operating Temperature 32° to 104°F (0° to 40°C)
Storage Temperature -31° to 158°F (-35° to 70°C)
Humidity 20% to 90% non-condensing
Noise Level N/A
Operating Altitude 10 000 ft (3048 m)
Compliance FCC, IC, CE, UL/cUL, CB, VCCI, BSMI, RCM, UKCA
Certifications USGv6/IPv6
