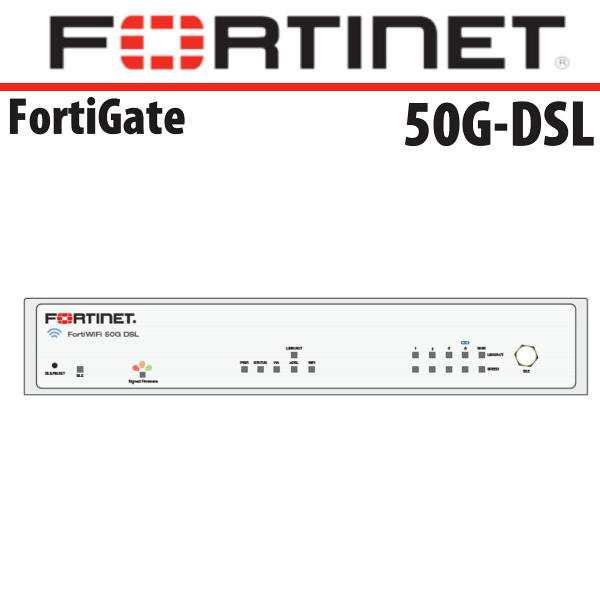

Fortinet50G DSL Dubai

The Fortinet50G DSL Dubai is engineered to facilitate the establishment of security-driven networks across distributed enterprise environments and to transform WAN architecture across various scales.

Category:

Description

Fortinet50G DSL Firewall Dubai

The Fortinet50G DSL Dubai is engineered to facilitate the establishment of security-driven networks across distributed enterprise environments and to transform WAN architecture across various scales. Featuring an extensive array of AI and machine learning-based FortiGuard security services, integrated with the Security Fabric platform, the Fortinet50G DSL Dubai provides a cohesive, automated, and end-to-end threat protection mechanism tailored for diverse use cases. This solution represents the industry’s pioneering implementation of integrated Software-Defined Wide Area Networking (SD-WAN) and Zero Trust Network Access (ZTNA) enforcement within a next-generation firewall (NGFW) framework, all underpinned by a unified operating system. The Fortinet50G DSL Dubai adeptly manages, authenticates, and streamlines user access to applications, thereby ensuring a consistent and optimized user experience.

Equipped with advanced functionalities, the Fortinet50G DSL Dubai offers robust cybersecurity measures and efficient network management capabilities. Its Next-Generation Firewall (NGFW) provides extensive protection against a myriad of cyber threats, encompassing malware, viruses, spyware, and botnets. With integrated SD-WAN capabilities, the device enables flexible and efficient WAN connectivity, empowering organizations to enhance network performance while minimizing operational costs. Leveraging Fortinet’s patented Security Fabric architecture, the high-performance hardware guarantees superior security without sacrificing operational efficiency. Furthermore, the device utilizes AI-driven security mechanisms to identify and neutralize advanced threats in real-time.

Management of the Fortinet50G DSL is streamlined through an intuitive web-based interface, facilitating straightforward configuration and administration. It is designed for scalability to accommodate increasing network demands and incorporates cloud-based management solutions for centralized oversight and control of distributed networks.

Specifications:

Hardware Specifications
Hardware Accelerated GE WAN Port 1
Hardware Accelerated GE RJ45 Ports 1
Hardware Accelerated GE RJ45 FortiLink Port (Default) 1
DSL RJ11 Port 1
USB Ports 1
Console Port (RJ45) 1
Trusted Platform Module (TPM)  Yes
Cellular Modem
Antenna Ports (SMA)
SIM Slots (Nano SIM)
Wireless Interface
System Performance — Enterprise Traffic Mix
IPS Throughput 2.25 Gbps
NGFW Throughput 1.25 Gbps
Threat Protection Throughput 1.1 Gbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 5 / 5 / 4 Gbps
Firewall Latency (64 byte UDP packets) 2.42 μs
Firewall Throughput (Packets Per Second) 6 Mpps
Concurrent Sessions (TCP) 720 000
New Sessions/Second (TCP) 85 000
Firewall Policies 2000
IPsec VPN Throughput (512 byte) 4.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 250
SSL-VPN Throughput
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)
SSL Inspection Throughput (IPS, avg. HTTPS) 1.3 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 699
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 74,000
Application Control Throughput (HTTP 64K) 2.8 Gbps
CAPWAP Throughput (HTTP 64K) 3.8 Gbps
Virtual Domains (Default / Maximum) 5/5
Maximum Number of FortiSwitches Supported 8
Maximum Number of FortiAPs (Total / Tunnel Mode) 16 / 8
Maximum Number of FortiTokens 500
High Availability Configurations Active-Active, Active-Passive, Clustering
Dimensions
Height x Width x Length (inches) 1.7 x 8.5 x 7.0
Height x Width x Length (mm) 42 x 216 x 178
Weight 2.2 lbs (1.0 kg)
Form Factor (supports EIA/non-EIA standards) Desktop
Operating Environment and Certifications
Power Rating 12VDC, 3A
Power Required Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz
Maximum Current 100V/0.2A, 240V/0.1A
Power Consumption (Average / Maximum) 12.43 W / 13.01 W
Heat Dissipation 44.36 BTU/hr
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -31°F to 158°F (-35°C to 70°C)
Humidity 10% to 90% non-condensing
Noise Level Fanless 0 dBA
Operating Altitude Up to 10 000 ft (3048 m)
Compliance FCC, ISED, CE, UL/cUL, CB
Certifications USGv6/IPv6
xDSL Modem Supported Mode
vDSL2  Yes
ADSL2  Yes
ADSL2+  Yes
G.DMT  Yes
T1.413  Yes
G.Lite  Yes
xDSL Modem Supported Type
Annex A, B, I, J, M, L  Yes
Radio Specifications
Multiple User (MU) MIMO
Maximum Wi-Fi Speeds
Maximum Tx Power
5G Modem
Regions
Modem Model
LTE Category
5G Bands
LTE Bands
UMTS/HSPA+
WCDMA
CDMA 1xRTT/EV-DO Rev A
GSM/GPRS/EDGE
Module Certifications
Diversity
MIMO
GNSS Bias
