Description

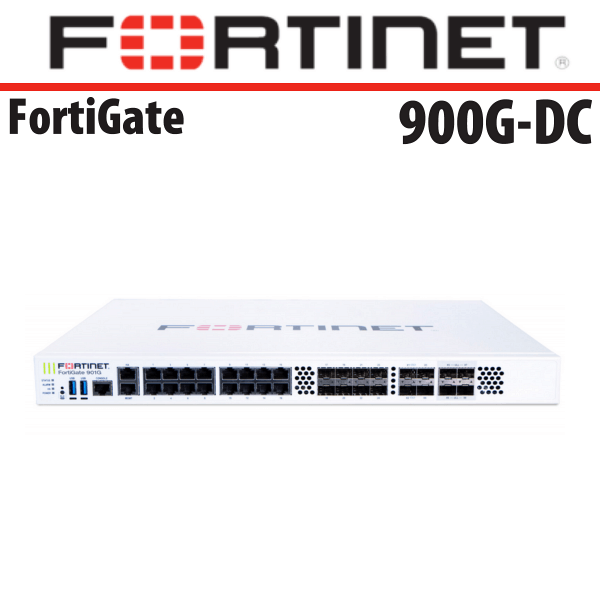

Fortinet900G-DC Next-Generation Firewall Dubai
The Fortinet900G-DC Dubai Next-Generation Firewall (NGFW) is at the forefront of cybersecurity, integrating cutting-edge AI-powered security features and advanced machine learning technologies to provide robust Threat Protection across any operational scale. This powerful firewall empowers organizations with enhanced visibility into their network environments, enabling them to monitor applications, users, and devices comprehensively before they can escalate into potential security threats.
Equipped with a comprehensive suite of AI and machine learning security functionalities, the Fortinet900G-DC Dubai extends its capabilities within a unified security fabric platform. This innovative approach facilitates a secure networking environment that is not only extensive but also intelligent and automated. The firewall ensures comprehensive end-to-end security, featuring advanced edge protection that encompasses web security, content security, and device security. Furthermore, its network segmentation and secure Software-Defined Wide Area Network (SD-WAN) functionalities work to minimize complexity and mitigate risks associated with hybrid IT networks.
One of the standout features of the Fortinet900G-DC is its Universal Zero Trust Network Access (ZTNA). This feature automatically manages, verifies, and streamlines user access to applications, thereby significantly reducing the potential for lateral threats. By allowing access exclusively to authenticated and validated users, organizations can enhance their overall security posture and safeguard sensitive data from unauthorized access.
In addition to these capabilities, the firewall offers ultra-fast Threat Protection and SSL Inspection, ensuring that security measures are seamlessly integrated at the network edge without compromising performance. This dual focus on speed and security allows organizations to maintain operational efficiency while effectively defending against emerging threats. With the Fortinet900G-DC Dubai, businesses can secure their networks with confidence, knowing they have a sophisticated, AI-driven solution at their disposal.
Hardware Features
Trusted Platform Module (TPM)
The Fortinet900G-DC Dubai features a dedicated module that hardens physical networking appliances by generating, storing,and authenticating cryptographic keys. Hardware-based security mechanisms protect against malicious software and phishing attacks.
Access Layer Security
FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.
Specifications
| Interfaces and Modules | |
| Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Ultra Low Latency Slots | 4 |
| Hardware Accelerated 10 GE SFP+ / GE SFP Slots | 4 |
| Hardware Accelerated GE SFP Slots | 8 |
| Hardware Accelerated GE RJ45 Slots | 16 |
| 2.5 GE / GE HA Port | 1 |
| GE Management Port | 1 |
| USB Ports (Client / Server) | 2/2 |
| Console Port | 1 |
| Onboard Storage | No |
| Trusted Platform Module (TPM) | Yes |
| Included Transceivers | 2x SFP SX |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput | 26 Gbps |
| NGFW Throughput | 22 Gbps |
| Threat Protection Throughput | 20 Gbps |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 164 / 163 / 153 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP | 164 / 163 / 153 Gbps |
| Firewall Latency (64 byte, UDP) | 3.78 / 2.5 μs |
| Firewall Throughput (Packet per Second) | 229.5 Mpps |
| Concurrent Sessions (TCP) | 16 Million |
| New Sessions/Second (TCP) | 720 000 |
| Firewall Policies | 10 000 |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
| Client-to-Gateway IPsec VPN Tunnels | 50 000 |
| SSL-VPN Throughput | 10 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 10 000 |
| SSL Inspection Throughput (IPS, avg HTTPS) | 16.7 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 18 000 |
| SSL Inspection Concurrent Session (IPS, avg HTTPS) | 1.6 Million |
| Application Control Throughput (HTTP 64K) | 74.8 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 96 |
| Maximum Number of FortiAPs (Total / Tunnel) | 1024 / 512 |
| Maximum Number of FortiTokens | 5000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Dimensions and Power | |
| Height x Width x Length (inches) | 1.5 x 17.0 x 15.0 |
| Height x Width x Length (mm) | 44.45 x 432 x 380 |
| Weight (maximum) | 15.98 lbs (7.25 kg) |
| Form Factor (supports EIA/non-EIA standards) | Rack Mount, 1RU |
| AC Power Supply | 100–240VAC, 50/60 Hz |
| AC Current (Maximum) | 6A@100VAC |
| DC Power Supply | 48-60VDC |
| DC Current (Maximum) | 7A@48V |
| Power Consumption (Average / Maximum) | 134 W / 252 W |
| Heat Dissipation | 861 BTU/h |
| Power Supply Efficiency Rating | 80Plus Compliant |
| Redundant Power Supplies (Hot Swappable) | Yes (comes with 2PSU default) |
| Operating Environment and Certifications | |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10%–90% non-condensing |
| Noise Level | 58 dBA |
| Forced Airflow | Side and Front to Back |
| Operating Altitude | Up to 10 000 ft (3048 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
