Description

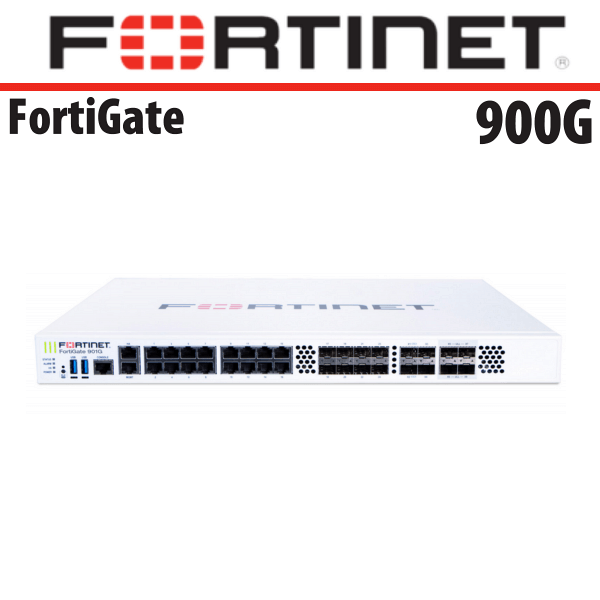

Fortinet900G Next Generation Firewall Dubai
The Fortinet900G Dubai Next-Generation Firewall (NGFW) represents a significant advancement in cybersecurity, integrating state-of-the-art artificial intelligence (AI) and machine learning (ML) capabilities to deliver comprehensive threat protection at any operational scale. This powerful solution enhances network security by offering deeper visibility into network activities, allowing organizations to identify applications, users, and devices proactively, thus mitigating potential threats before they escalate into serious issues.
Equipped with an extensive suite of AI and ML security features, the Fortinet900G Dubai operates as part of an integrated security fabric platform. This integration enables the delivery of secure networking solutions that are not only broad and deep but also highly automated. Organizations can secure their networks comprehensively from end to end, utilizing advanced edge protection mechanisms that encompass web security, content security, and device security. Moreover, the incorporation of network segmentation and secure Software-Defined Wide Area Networking (SD-WAN) significantly simplifies the management of hybrid IT environments, effectively reducing complexity and potential risks.
The Fortinet900G Dubai also features Universal Zero Trust Network Access (ZTNA), a sophisticated mechanism that automatically governs, verifies, and facilitates user access to applications. This approach diminishes lateral threats by ensuring that access is granted only to users who have been thoroughly validated, thereby enhancing the overall security posture of the organization. Furthermore, the device’s ultra-fast threat protection capabilities and robust SSL inspection provide an additional layer of security at the network edge, ensuring that security measures do not compromise performance.
By leveraging the Fortinet900G Dubai, organizations can achieve a resilient security framework that not only protects against current threats but also adapts to emerging challenges in the ever-evolving landscape of cybersecurity.
Hardware Features
Trusted Platform Module (TPM)
The Fortinet900G Dubai features a dedicated module that hardens physical networking appliances by generating, storing,and authenticating cryptographic keys. Hardware-based security mechanisms protect against malicious software and phishing attacks.
Access Layer Security
FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.
Specifications
| Interfaces and Modules | |
| Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Ultra Low Latency Slots | 4 |
| Hardware Accelerated 10 GE SFP+ / GE SFP Slots | 4 |
| Hardware Accelerated GE SFP Slots | 8 |
| Hardware Accelerated GE RJ45 Slots | 16 |
| 2.5 GE / GE HA Port | 1 |
| GE Management Port | 1 |
| USB Ports (Client / Server) | 2/2 |
| Console Port | 1 |
| Onboard Storage | No |
| Trusted Platform Module (TPM) | Yes |
| Included Transceivers | 2x SFP SX |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput | 26 Gbps |
| NGFW Throughput | 22 Gbps |
| Threat Protection Throughput | 20 Gbps |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 164 / 163 / 153 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP | 164 / 163 / 153 Gbps |
| Firewall Latency (64 byte, UDP) | 3.78 / 2.5 μs |
| Firewall Throughput (Packet per Second) | 229.5 Mpps |
| Concurrent Sessions (TCP) | 16 Million |
| New Sessions/Second (TCP) | 720 000 |
| Firewall Policies | 10 000 |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
| Client-to-Gateway IPsec VPN Tunnels | 50 000 |
| SSL-VPN Throughput | 10 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 10 000 |
| SSL Inspection Throughput (IPS, avg HTTPS) | 16.7 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 18 000 |
| SSL Inspection Concurrent Session (IPS, avg HTTPS) | 1.6 Million |
| Application Control Throughput (HTTP 64K) | 74.8 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 96 |
| Maximum Number of FortiAPs (Total / Tunnel) | 1024 / 512 |
| Maximum Number of FortiTokens | 5000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Dimensions and Power | |
| Height x Width x Length (inches) | 1.5 x 17.0 x 15.0 |
| Height x Width x Length (mm) | 44.45 x 432 x 380 |
| Weight (maximum) | 15.98 lbs (7.25 kg) |
| Form Factor (supports EIA/non-EIA standards) | Rack Mount, 1RU |
| AC Power Supply | 100–240VAC, 50/60 Hz |
| AC Current (Maximum) | 6A@100VAC |
| DC Power Supply | 48-60VDC |
| DC Current (Maximum) | 7A@48V |
| Power Consumption (Average / Maximum) | 134 W / 252 W |
| Heat Dissipation | 861 BTU/h |
| Power Supply Efficiency Rating | 80Plus Compliant |
| Redundant Power Supplies (Hot Swappable) | Yes (comes with 2PSU default) |
| Operating Environment and Certifications | |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10%–90% non-condensing |
| Noise Level | 58 dBA |
| Forced Airflow | Side and Front to Back |
| Operating Altitude | Up to 10 000 ft (3048 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
