Description

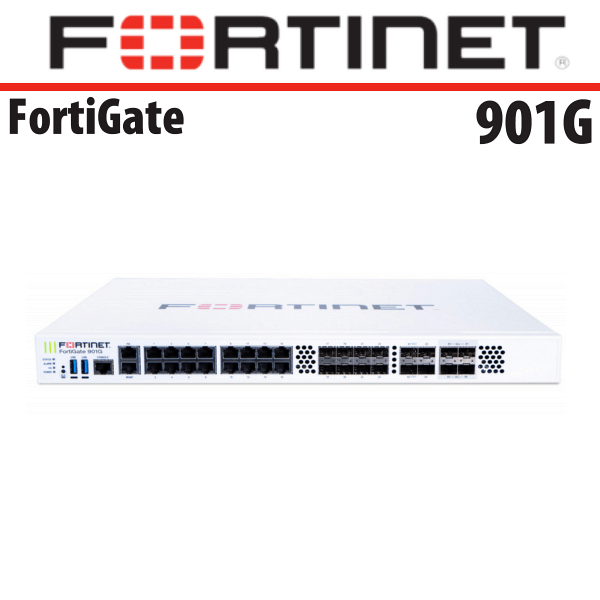

Fortinet901G Next-Generation Firewall Dubai
The Fortinet901G Dubai NGFW integrates advanced AI-powered security and machine learning (ML) algorithms to provide comprehensive threat protection at any scale. This next-generation firewall offers enhanced network visibility, allowing you to proactively monitor applications, users, and devices in real time—identifying potential threats before they can compromise your network.
Leveraging AI/ML-driven intelligence within an integrated security fabric platform, the Fortinet901G Dubai ensures broad, deep, and automated network security across distributed environments. Its end-to-end protection capabilities span multiple layers, including advanced edge security for web filtering, content inspection, and device control. Additionally, intelligent network segmentation and secure SD-WAN functions streamline complex hybrid IT networks, minimizing both operational overhead and security risks.
The Universal ZTNA (Zero Trust Network Access) framework strengthens application security by dynamically verifying user identities and controlling access at every touchpoint. By limiting access to only authenticated and validated users, it reduces the risk of lateral movement across the network. With ultra-fast threat detection and high-performance SSL/TLS inspection, the Fortinet901G offers real-time edge protection without compromising on network speed, ensuring seamless security for even the most demanding environments.
Hardware Features
Trusted Platform Module (TPM)
The Fortinet901G Dubai features a dedicated module that hardens physical networking appliances by generating, storing,and authenticating cryptographic keys. Hardware-based security mechanisms protect against malicious software and phishing attacks.
Access Layer Security
FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.
Specifications
| Interfaces and Modules | |
| Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Ultra Low Latency Slots | 4 |
| Hardware Accelerated 10 GE SFP+ / GE SFP Slots | 4 |
| Hardware Accelerated GE SFP Slots | 8 |
| Hardware Accelerated GE RJ45 Slots | 16 |
| 2.5 GE / GE HA Port | 1 |
| GE Management Port | 1 |
| USB Ports (Client / Server) | 2/2 |
| Console Port | 1 |
| Onboard Storage | 2x 480 GB |
| Trusted Platform Module (TPM) | Yes |
| Included Transceivers | 2x SFP SX |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput | 26 Gbps |
| NGFW Throughput | 22 Gbps |
| Threat Protection Throughput | 20 Gbps |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 164 / 163 / 153 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP | 164 / 163 / 153 Gbps |
| Firewall Latency (64 byte, UDP) | 3.78 / 2.5 μs |
| Firewall Throughput (Packet per Second) | 229.5 Mpps |
| Concurrent Sessions (TCP) | 16 Million |
| New Sessions/Second (TCP) | 720 000 |
| Firewall Policies | 10 000 |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
| Client-to-Gateway IPsec VPN Tunnels | 50 000 |
| SSL-VPN Throughput | 10 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 10 000 |
| SSL Inspection Throughput (IPS, avg HTTPS) | 16.7 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 18 000 |
| SSL Inspection Concurrent Session (IPS, avg HTTPS) | 1.6 Million |
| Application Control Throughput (HTTP 64K) | 74.8 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 96 |
| Maximum Number of FortiAPs (Total / Tunnel) | 1024 / 512 |
| Maximum Number of FortiTokens | 5000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Dimensions and Power | |
| Height x Width x Length (inches) | 1.5 x 17.0 x 15.0 |
| Height x Width x Length (mm) | 44.45 x 432 x 380 |
| Weight (maximum) | 16.53 lbs (7.5 kg) |
| Form Factor (supports EIA/non-EIA standards) | Rack Mount, 1RU |
| AC Power Supply | 100–240VAC, 50/60 Hz |
| AC Current (Maximum) | 6A@100VAC |
| DC Power Supply | 48-60VDC |
| DC Current (Maximum) | 7A@48V |
| Power Consumption (Average / Maximum) | 144 W / 264 W |
| Heat Dissipation | 902 BTU/h |
| Power Supply Efficiency Rating | 80Plus Compliant |
| Redundant Power Supplies (Hot Swappable) | Yes (comes with 2PSU default) |
| Operating Environment and Certifications | |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10%–90% non-condensing |
| Noise Level | 58 dBA |
| Forced Airflow | Side and Front to Back |
| Operating Altitude | Up to 10 000 ft (3048 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
