Description

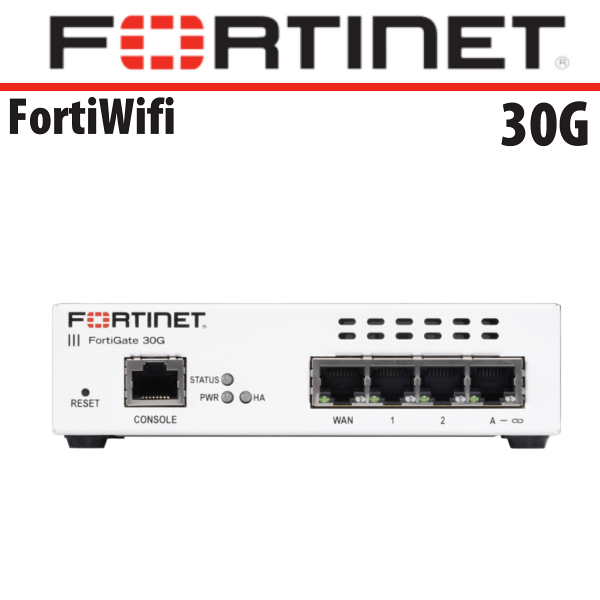

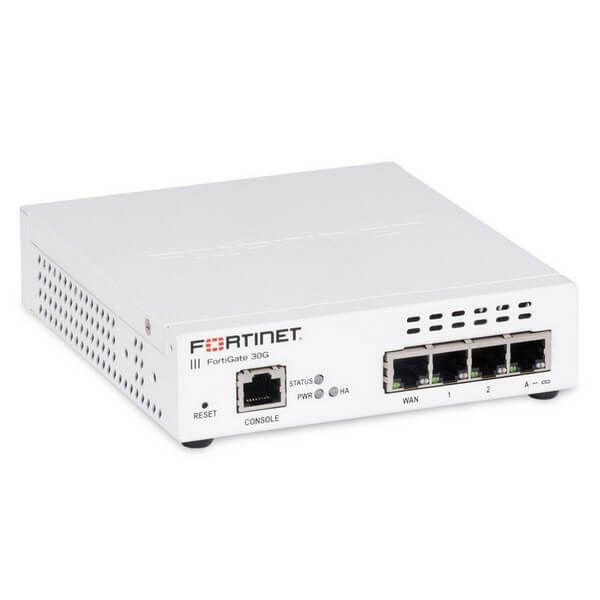

FortiWifi30G Next-Generation Firewall Dubai
The FortiWifi30G Dubai combines firewall capabilities, SD-WAN functionality, and security measures into a single appliance, making it an ideal solution for developing security-driven networks at distributed enterprise locations and revolutionizing WAN architecture across various scales. Powered by the FortiOS operating system, this device represents the industry’s first convergence of networking and security, enabling organizations to effectively safeguard their dynamic digital infrastructures.
As a fundamental component of the Fortiwifi30G Security Fabric platform, the Fortiwifi30G Next Generation Firewall (NGFW) seamlessly integrates with FortiGuard AI-powered Security Services to provide coordinated, automated, and real-time end-to-end threat protection across all scenarios. The Fortiwifi30G is engineered with a patented SD-WAN-based ASIC, delivering superior performance compared to traditional CPU architectures, all while reducing costs and power consumption. Its application-specific design, coupled with an embedded multi-core processor, accelerates the integration of networking and security functions, thereby optimizing secure connections and enhancing user experiences at branch locations.
The FortiWifi30G Dubai is equipped with a suite of essential features aimed at improving both network security and performance. It includes a built-in Next-Generation Firewall (NGFW) that offers comprehensive protection against a broad spectrum of cyber threats, including malware, viruses, spyware, and botnets. To ensure high-speed performance, it supports Wi-Fi 6 standards, providing faster and more reliable wireless connectivity. With dual-band operation on both the 2.4 GHz and 5 GHz frequency bands, the device optimizes performance and coverage. Furthermore, it employs beamforming technology to direct Wi-Fi signals toward specific devices, enhancing both performance and range. The integration of MU-MIMO technology allows multiple devices to connect simultaneously, further boosting speed. Centralized management is simplified through the FortiCloud platform, and an intuitive web-based interface facilitates easy configuration and management.
Specifications:
| Hardware Specifications | |
| Hardware Accelerated GE WAN Port | 1 |
| Hardware Accelerated GE RJ45 Ports | 2 |
| Hardware Accelerated GE RJ45 FortiLink Port (Default) | 1 |
| USB Ports | — |
| Console Port (RJ45) | 1 |
| Trusted Platform Module (TPM) | |
| Bluetooth Low Energy (BLE) | — |
| Wireless Interface | Dual Radio (2.4 GHz/ 5 GHz), 802.11 a/b/g/n/ac/ax |
| System Performance* — Enterprise Traffic Mix | |
| IPS Throughput | 800 Mbps |
| NGFW Throughput | 570 Mbps |
| Threat Protection Throughput | 500 Mbps |
| System Performance | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
4/ 4/ 3.9 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) |
4/ 4/ 3.9 Gbps |
| Firewall Latency (64 byte UDP packets) |
2.87 μs |
| Firewall Throughput (Packets Per Second) |
5.85 Mpps |
| Concurrent Sessions (TCP) | 600,000 |
| New Sessions/Second (TCP) | 30,000 |
| Firewall Policies | 2000 |
| IPsec VPN Throughput (512 byte) | 3.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL-VPN Throughput | — |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
— |
| SSL Inspection Throughput (IPS, avg. HTTPS) |
400 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 260 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS)3 | 55,000 |
| Application Control Throughput (HTTP 64K) | 830 Mbps |
| CAPWAP Throughput (HTTP 64K) | TBA Gbps |
| Virtual Domains (Default / Maximum) | Not Supported |
| Maximum Number of FortiSwitches Supported | 8 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 16/8 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active-Passive, Active-Active |
| Dimensions | |
| Height x Width x Length (inches) | 1.6 x 5.6 x 6.3 |
| Height x Width x Length (mm) | 40.5 x 142 x 160 |
| Weight | 1.5 lbs (0.7 kg) |
| Rack Mount Type | NA |
| Wall Mountable | Optional |
| Form Factor (supports EIA/non‑EIA standards) | Desktop |
| Operating Environment and Certifications | |
| Power Rating | 12VDC, 2A |
| Power Source Powered by external DC power adapter | 100-240V AC, 50/60 Hz |
| Maximum Current | 110V/0.17A, 240V/0.085A |
| Power Consumption (Average / Maximum) | 11.3 W / 13.6 W |
| Heat Dissipation | 46 BTU/hr |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | -31° to 158°F (-35° to 70°C) |
| Humidity | 20% to 90% non-condensing |
| Noise Level | N/A |
| Operating Altitude | 10 000 ft (3048 m) |
| Compliance | FCC, IC, CE, UL/cUL, CB, VCCI, BSMI, RCM, UKCA |
| Certifications | USGv6/IPv6 |
