Description

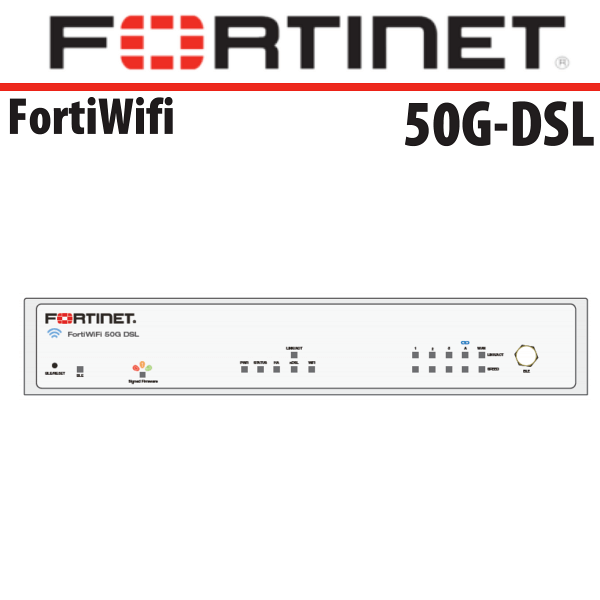

FortiWiFi50G DSL Next-Generation Firewall Dubai
The FortiWiFi50G DSL Dubai is expertly engineered for developing security-focused networks across distributed enterprise locations and enhancing WAN architecture on any scale. It leverages a comprehensive suite of AI/ML-driven FortiGuard security services integrated within the Security Fabric platform. This integration provides coordinated, automated, end-to-end threat protection suitable for various applications. Notably, the FortiWiFi50G is the industry’s first solution to incorporate integrated SD-WAN and zero-trust network access (ZTNA) enforcement within a next-generation firewall (NGFW) framework, all powered by a unified operating system. It automatically manages, verifies, and streamlines user access to applications, ensuring a consistent and optimized user experience.
Key features of the FortiWiFi50G DSL Dubai are meticulously designed to bolster network security and enhance performance. Its built-in Next-Generation Firewall (NGFW) offers robust protection against a diverse array of cyber threats, including malware, viruses, spyware, and botnets. Supporting Wi-Fi 6 standards, the device ensures high-speed performance with faster, more reliable wireless connectivity. The dual-band operation effectively utilizes both 2.4 GHz and 5 GHz frequency bands for superior performance and coverage. Additionally, the FortiWiFi50G DSL is equipped with beamforming technology, which directs Wi-Fi signals toward specific devices to enhance performance and range. With the integration of MU-MIMO technology, it allows multiple devices to connect simultaneously, resulting in faster data speeds. For convenience, the device can be centrally managed through Fortinet’s FortiCloud platform, complemented by an intuitive web-based interface that simplifies configuration and management tasks.
Specifications:
Hardware Specifications | |
Hardware Accelerated GE WAN Port | 1 |
Hardware Accelerated GE RJ45 Ports | 1 |
Hardware Accelerated GE RJ45 FortiLink Port (Default) | 1 |
DSL RJ11 Port | 1 |
USB Ports | 1 |
Console Port (RJ45) | 1 |
Trusted Platform Module (TPM) | Yes |
Cellular Modem | — |
Antenna Ports (SMA) | 3 |
SIM Slots (Nano SIM) | — |
Wireless Interface | Dual Radio (2.4 GHz/ 5 GHz), 802.11 a/b/g/n/ac/ax |
System Performance — Enterprise Traffic Mix | |
IPS Throughput | 2.25 Gbps |
NGFW Throughput | 1.25 Gbps |
Threat Protection Throughput | 1.1 Gbps |
System Performance | |
Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 5 / 5 / 4 Gbps |
Firewall Latency (64 byte UDP packets) | 2.42 μs |
Firewall Throughput (Packets Per Second) | 6 Mpps |
Concurrent Sessions (TCP) | 720 000 |
New Sessions/Second (TCP) | 85 000 |
Firewall Policies | 2000 |
IPsec VPN Throughput (512 byte) | 4.5 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 200 |
Client-to-Gateway IPsec VPN Tunnels | 250 |
SSL-VPN Throughput | — |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | — |
SSL Inspection Throughput (IPS, avg. HTTPS) | 1.3 Gbps |
SSL Inspection CPS (IPS, avg. HTTPS) | 699 |
SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 74,000 |
Application Control Throughput (HTTP 64K) | 2.8 Gbps |
CAPWAP Throughput (HTTP 64K) | 3.8 Gbps |
Virtual Domains (Default / Maximum) | 5/5 |
Maximum Number of FortiSwitches Supported | 8 |
Maximum Number of FortiAPs (Total / Tunnel Mode) | 16 / 8 |
Maximum Number of FortiTokens | 500 |
High Availability Configurations | Active-Active, Active-Passive, Clustering |
Dimensions | |
Height x Width x Length (inches) | 1.6 x 8.5 x 6.3 |
Height x Width x Length (mm) | 40.5 x 216 x 160 |
Weight | 2.2 lbs (1.0 kg) |
Form Factor (supports EIA/non-EIA standards) | Desktop |
Operating Environment and Certifications | |
Power Rating | 12VDC, 3A |
Power Required | |
Maximum Current | 100V/0.3A, 240V/0.15A |
Power Consumption (Average / Maximum) | 17.74 W / 19.0 W |
Heat Dissipation | 64.79 BTU/h |
Operating Temperature | 32°F to 104°F (0°C to 40°C) |
Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
Humidity | 10% to 90% non-condensing |
Noise Level | |
Operating Altitude | Up to 10 000 ft (3048 m) |
Compliance | FCC, ISED, CE, UL/cUL, CB |
Certifications | USGv6/IPv6 |
xDSL Modem Supported Mode | |
vDSL2 | Yes |
ADSL2 | Yes |
ADSL2+ | Yes |
G.DMT | Yes |
T1.413 | Yes |
G.Lite | Yes |
xDSL Modem Supported Type | |
Annex A, B, I, J, M, L | Yes |
Radio Specifications | |
Multiple User (MU) MIMO | 2 x 2 |
Maximum Wi-Fi Speeds | 1201 Mbps @ 5 GHz, 574 Mbps @ 2.4 GHz |
Maximum Tx Power | 21.0 dBm per chain @ 2.4GHz, 19.5 dBm per chain @ 5GHz |
5G Modem | |
Regions | — |
Modem Model | — |
LTE Category | — |
5G Bands | — |
LTE Bands | — |
UMTS/HSPA+ | — |
WCDMA | — |
CDMA 1xRTT/EV-DO Rev A | — |
GSM/GPRS/EDGE | — |
Module Certifications | — |
Diversity | — |
MIMO | — |
GNSS Bias | — |
