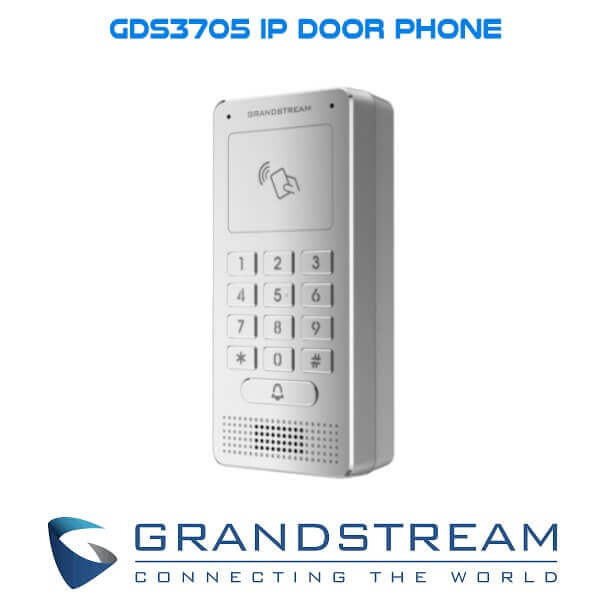

Grandstream GDS3705 IP Door Phone Dubai

The Grandstream GDS3705 Dubai IP audio gateway from Grandstream is an ideal access control solution for installations focused on audio and security monitoring, suitable for environments of any size. It is designed for users seeking a robust audio-only facility access and security monitoring system. The GDS3705 features dual microphones, HD loudspeakers with advanced AEC for intercom functionality, support for SIP calls to IP phones, and a built-in RFID chip reader and keypad for secure keyless or keyed entry.

Equipped with high-quality dual microphones, the GDS3705 ensures clear audio capture from external parties. Its 2-watt HD loudspeaker provides high-quality sound with up to a 3-meter audio range. This system includes an intercom with dual microphones and an HD speaker utilizing advanced AEC technology for effective communication. It also supports SIP calls to IP phones and features an RFID card reader and keypad for secure access.

The Grandstream GDS3705 Dubai IP Door Phone has a durable zinc alloy metal casing, making it weatherproof and vandal-resistant. It offers alarm-in and alarm-out support for integration with existing security devices. The device integrates with Grandstream’s free management software, GDS Manager, allowing full management of RFID card information and the device itself. It seamlessly integrates with other Grandstream endpoints like GXP IP phones, GXV video phones, portable WiFi and DECT IP phones, and the Grandstream Wave mobile app, providing a comprehensive solution for access control, audio intercom, and security.

In networks without a DHCP server or where the Grandstream GDS3705 Dubai cannot obtain an IP address from the DHCP server, users can connect the GDS3705 directly to a computer using a static IP for configuration. For environments such as remote warehouses, grocery stores, or small restaurants, a LAN can be formed using a static IP with a PoE switch and Grandstream’s GXP21XX/17XX/16XX series audio phones. This setup meets basic intercom and door-opening needs and offers an upgrade to traditional analog intercom systems, requiring only a power source, a switch or PoE switch, and Grandstream audio phones.

For large deployments requiring multiple GDS3705 units, an IPPBX or a SIP Proxy is necessary as peered connections are not feasible. When connecting the GDS3705 to a door strike, it is recommended to use an EMF protection diode in reverse polarity for secure operation. Ensure that the GND of the Wiegand device is connected to the GDS3705 Wiegand port. In Wiegand input mode, LED and Beep pins require the Wiegand device to support these interfaces, but they will not affect the Wiegand bus if not connected.

If the power source is 12VDC, the Wiegand device can share the same power source as the GDS3705. However, users must verify the maximum power consumption and capacity of the power source. If the Wiegand device uses 5VDC, the GDS3705 Wiegand port can provide 5VDC with a maximum of 500mA to power the Wiegand device. When the GDS3705’s Wiegand output is connected, it acts as the signal receiver for third-party Wiegand devices, connecting to a door controller. The primary wiring includes GND, D0, and D1. Due to the high current and power consumption of door controllers, a separate power supply is recommended.

Features

HD audio options with up to 1.5m of audio input and 3m of audio output
Built-in RFID chip reader for keyless entry
Supports SIP calls to IP phones to facilitate communication
Built with a metal casing to make it weatherproof and vandal resistant
Integrated PoE to power the device and provide a network connection
Built-in dual microphone and HD loudspeaker with advanced AEC offers intercom functionality.

Components and Specifications

Network 10M/100M Auto-sensing
PoE PoE IEEE 802.3af Class3
Supply Voltage 12VDC /1A (AC power adapter not included)
SIP/VoIP Support Yes, broad interoperability
Voice Codecs G.711μ/a-law, G.722, DTMF (RFC2833, SIP INFO), AEC, ANS
Audio Input Integrated dual microphones up to 1.5m
Audio Output HD loudspeaker 2W, up to 3m
Built-in Key Pad 12+1 Metal keys with Blue LED backlight
RFID EM4100 (125kHz)
RFID Number Supported Up to 2,000 recommended
Input 2 Optocoupler Input, Vin < 15V, for door sensor or other low voltage devices
Output 2 Relay, 125VAC/0.5A or 30VDC/2A, Normal Open or Normal Close, for electric lock, light switch or other relative high voltage devices
Expansion Interface RS485, Wiegand (26 bits) input and output
Waterproof Certification IP66 (EN60529)
Vandal Resistance IK09 (IEC62262)
Temperature Range -30°C to 60°C
Mounting Wall-Surface, In-Wall
Dimension (HxWxD) and Weight In wall 217mm x 120mm x 11.6mm; On Wall 173mm x 80mm x 36mm 0.635Kg
Compliance FCC: Part 15 subpart B;Part15C;MPE CE: EN55032 Class B; EN61000-3-2; EN61000-3-3; EN50130; EN300 330; EN301 489-1/-3; EN60950-1; EN62311 RCM: AS/NZS CISPR32;AS/NZS4268;AS/NZ60950 IC:ICES-003;RSS310
