Grandstream GWN7000 Dubai

The Grandstream GWN7000 Dubai serves as an enterprise-grade VPN router and wireless access point management unit. It features two Gigabit WAN ports for failover protection and load balancing, plus an additional configurable port that can function as WAN, LAN, or VoIP.

Description

Grandstream GWN7000 Router Dubai

The Grandstream GWN7000 Dubai serves as an enterprise-grade VPN router and wireless access point management unit. It features two Gigabit WAN ports for failover protection and load balancing, plus an additional configurable port that can function as WAN, LAN, or VoIP. It also includes four auto-sensing Gigabit LAN ports, one of which can power the router using PoE. Dual USB 3.0 ports support peripherals like NAS storage or printers and enable WiFi uplink with a USB dongle. The GWN7000’s embedded controller manages over 300 compatible Grandstream GWN wireless access points via a web-based UI. This enterprise router offers VPN control using PPTP, L2TP/IPSec, and OpenVPN, along with firewall features like NAT, DMZ, Port Forwarding, SPI, and UPnP. It is an affordable networking solution for SMBs, education, hospitality, retail, and more.

The Grandstream GWN7000 Dubai boasts hardware-accelerated VPN, including PPTP, L2TP/IPSec, and OpenVPN. It is ideal for enterprises, SMBs, retail, education, hospitality, and medical markets. The router supports comprehensive Wi-Fi network management software and VPN solutions across multiple locations. With high-performance routing and switching capabilities, the GWN7000 includes a hardware-accelerated VPN client/server for secure inter-office connectivity. It maximizes network reliability with traffic load balancing and failover. The integrated controller and automated provisioning master can manage up to 300+ GWN series Wi-Fi Access Points, operable through an intuitive web browser user interface, providing a central panel to monitor and control the entire network.

The Grandstream GWN7000 Dubai Router handles up to 1 million packets per second and offers 10Gbps aggregate switching power. It features an embedded controller to manage 300+ GWN WiFi APs and includes seven Gigabit ports: 2 WAN and 5 LAN ports. The router’s intuitive web GUI configuration interface simplifies management, offering access to all setup configurations. Embedded HTML pages allow configuration through web browsers like Microsoft IE, Mozilla Firefox, and Google Chrome.

The Grandstream GWN7000 Dubai supports up to 16 different LAN groups separated as VLANs, with the ability to pair GWN76xx Access Points to each LAN, mapped to an SSID by VLAN tagging. The router complies with FCC/CE and various safety standards, with a UL-compliant power adapter.

Grandstream’s VPN router unifies business locations by creating high-speed VPN tunnels, enhancing security to protect users and data. The solution is easily expandable and scalable.

Product Features

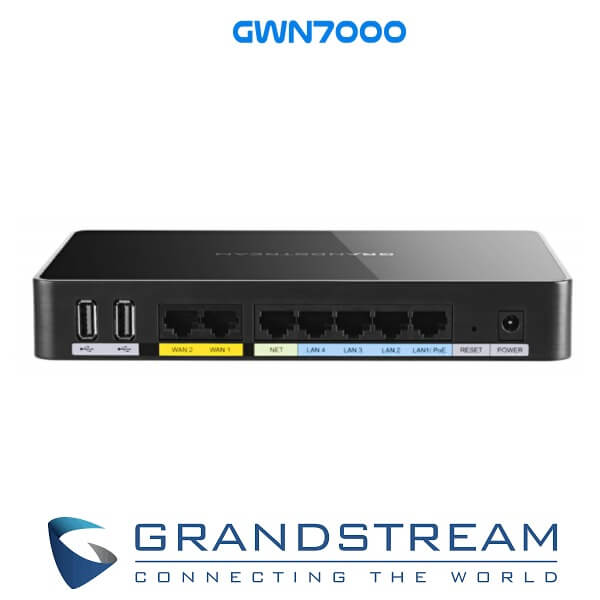

  • (7) Gigabit ports (2 WAN + 5 LAN)
  • Hardware accelerated VPN including PPTP, L2TP/IPSec, and OpenVPN
  • Embedded controller to manage 300+ GWN WiFi APs
  • Multi-WAN ports with load balancing and failover to maximize connection reliability
  • Intuitive Web Interface to centrally monitor/provision the entire network
  • 1 million packets/second routing & 10Gbps aggregate switching power
  • Rich peripheral support (printer, NAS, file server, etc.) through USB ports
  • 3G/4G/LTE wireless uplink via a USB dongle (pending)
  • Rich firewall features including NAT, DMZ, Port Forwarding, SPI and UPnP

Product Specifications

  • Networking Interfaces: (2) Autosensing 10/100/1000Mbps WAN Ports (1) Autosensing 10/100/1000Mbps configurable as LAN, WAN, or VoIP Port (4) Autosensing 10/100/1000Mbps LAN Ports
  • WAN: DHCP, Static IP, PPPoE, Load balance & failover, Rule bases routing
  • LAN: DHCP server, DNS Cache, Multiple zones, VLAN
  • Routing Performance: Up to 1 million packets/second with 64-byte packet size
  • USB: 3G/4G/LTE as WAN, Printer sharing, File sharing
  • Auxiliary Ports: (2) USB 3.0 ports, (1) Reset Pinhole
  • Mounting: Indoor wall mount, Desktop
  • LED: 8 green-color LEDs for device tracking and status indication
  • Network Protocols: IPv4, IPv6, 802.1Q, 802.1p
  • QoS: VLAN, TOS, supports multiple traffic classes, filter by port, IP address, DSCP, and policing
  • Firewall: NAT, DMZ, Port Forwarding, SPI, UPnP
  • VPN: Protocols: PPTP, L2TP/IPSec, OpenVPN Client, Server, or pass-through
  • Auto-Provisioning Capability: Embedded provisioning controller to manage up to 300+ GWN series WiFi APs
  • Management: Web, CLI
  • Power: 802.3at PoE Included Power Supply: 12V/2A Max Power Consumption: 16W
  • Operating Temperature: 0 to 50°C
  • Storage Temperature: -10 to 60°C
  • Humidity: 10 to 90% non-condensing
  • Unit Dimensions: 200 x 136 x 37mm
  • Package Dimensions: 324 x 163.5 x 54mm
  • Unit Weight: 570g
  • Package Weight: 930g
  • Compliance: FCC, CE, RCM, IC
