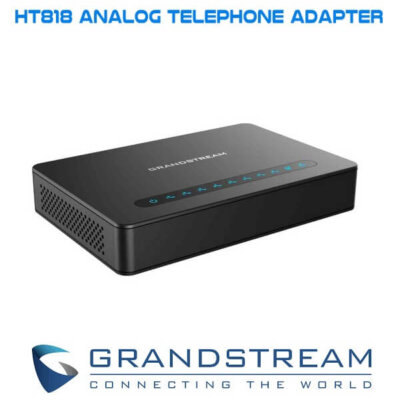

Grandstream HT818 Analog Telephone Adapter Dubai

The Grandstream HT818 Dubai Analog Telephone Adapter offers an array of features, including 3-way conferencing, high-definition audio quality, and robust encryption with unique security certificates for each unit. It supports automated provisioning for large-scale deployments and simplifies device management, ensuring strong performance in enterprise networks. With Layer 2 and Layer 3 QoS control, you can optimize data flow for exceptional audio quality during calls. This high-performance gateway incorporates Grandstream’s renowned SIP ATA gateway technology, making it an excellent choice for those looking to invest in a reliable analog-to-VoIP converter.

Features

8 FXS Ports

FXS stands for Foreign Exchange Subscriber or Foreign Exchange Station. This port in gateways is used to connect an analog endpoint like a fax machine or an analog phone. A device that has an FXS port is capable of allowing an analog device to connect to a VoIP network. The Grandstream HT818 Dubai is equipped with 8 FXS ports which allow for easy connection of your analog device to a VoIP network so that you can enjoy making and receiving fast calls over the internet.

3-Way Voice Conferencing per port

The Grandstream HT818 Dubai is equipped with 8 FXS ports, each of which supports 3-way HD audio conferencing. This enables you to seamlessly connect and collaborate with colleagues from different geographical locations. It is a cost-effective means of communication that maximizes efficiency as well as boosts productivity.

Integrated NAT Router

Grandstream HT818 Dubai comes with an integrated NAT router with dual Gigabit Ethernet ports which allow you to share a broadband connection between multiple devices on your LAN without interfering with connection speed.

Fax Support

The Grandstream HT818 Dubai is configured to support T.38 Fax which enables you to create Fax-over-IP. 38 is an ITU protocol that dictates how fax audio traverses a packet-switched network, such as the Internet or a company’s LAN/WAN, reliably. In order for fax audio to traverse a packet-switched network like the Internet, the analog signal used by fax machines must be converted into digital packets.

Cloud Management

Grandstream provides a reliable and secure cloud service to deliver connectivity to its users at cheaper maintenance costs while enhancing operation and maintenance efficiency. The cloud service on the internet enables customers to gain direct access to Grandstream devices available on private networks such as IP-PBXs, audio gateways, and IP phones, therefore allowing simple remote maintenance and management of Grandstream devices. This kind of cloud service is specifically designed to meet the needs of large-scale installation, configuration, and maintenance and operation. Auto-provisioning and configuration backup, online update, real-time monitoring and alert enable users to achieve efficient operation and maintenance, thus maximizing productivity in organizations.

Layer 2 & Layer 3 QoS Control

Quality of Service (QoS) is a strong feature which is integrated in routers and switches so as to control traffic flow thus delivering an overall smooth performance improvement for critical network traffic. It simply prioritizes more important traffic by letting it pass first. Whenever there are high volumes of traffic, the Grandstream HT818 VoIP Gateway in Dubai uses this feature to eliminate delays, thus maximizing productivity.

Automated – Provisioning – TFTP/HTTP/HTTPS

The Grandstream HT818 Dubai has the ability to deploy information technology or telecommunications service by using embedded pre-defined procedures that are carried out electronically without requiring any human intervention, thus making it very reliable and convenient.

HD Voice Quality

The Grandstream HT818 series in Dubai supports a number of voice compression codecs including 711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC,and OPUS. It also uses noise suppression technologies such as Echo Cancellation and Jitter Buffer to deliver crystal clear sounds while filtering out any background noises which may interfere with communication during voice calls.

Maximum Security

Grandstream HT818 VoIP Gateway Dubai uses a number of leading security protocols including TLS and SRTP security encryption technology to safeguard your VoIP accounts and calls from access by unauthorized persons and devices. This prevents the loss of important data or corruption of files due to access by malicious hackers.

Call Features

• Call Transfer: This advanced feature of the Grandstream HT818 gateway allows the user to relocate an inbound call to another phone or messaging system by using a dedicated call transfer button, or software that has been configured for use on the Gateway.
• Call Waiting: You can hear another incoming call when you are already on an active phone call (beep). With the Grandstream HT818 Dubai, you can also turn off call waiting so that incoming calls are directly sent to voicemail during moments you are active on another phone call.
• Call Holding: You can easily place an active phone call on hold in order to make or pick another incoming call using the premium Grandstream HT818 VoIP Gateway Dubai.

Key Features

• 8 FXS ports
• Strong AES encryption
• Automated & secure provisioning options using TR069
• 3-way voice conferencing per port
• Wideband HD codec
• Supports T.38 Fax for reliable Fax over-IP
• Supports dual Gigabit network ports

Technical Specifications

Interfaces

• Telephone Interfaces: Eight (8) RJ11 FXS ports
• Network Interface: Two (2) 10/100/1000Mbps RJ45 ports
• LED Indicators: POWER, LAN, WAN, PHONE1, PHONE2, PHONE3, PHONE4, PHONE5, PHONE6, PHONE7, PHONE8
• Factory Reset Button: Yes

Voice, Fax, Modem

• Telephony Features: Caller ID display or block, call waiting, flash, blind or attended transfer, forward,hold, do not disturb, 3-way conference
• Voice Codecs: G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC,OPUS, dynamic jitter buffer, advanced line echo cancellation
• Fax over IP: T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
• Short/Long Haul Ring Load: 2 REN, up to 1km on 24AWG line
• Caller ID: Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
• Disconnect Methods: Busy Tone, Polarity Reversal/Wink, Loop Current

Signalling

• Network Protocols: TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP,TFTP, SSH, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069
• QoS: Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS)
• DTMF Method: In-audio, RFC2833 and/or SIP INFO
• Provisioning and Control: HTTP, HTTPS, SSH, TFTP, TR-069, secure and automated provisioning using AES encryption, Syslog

Security

• Media: SRTP
• Control: TLS/SIPS/HTTPS
• Management: Syslog support, SSH, remote management using web browser

Physical

• Universal Power Supply:
  • Input: 100-240VAC, 50-60Hz
  • Output: 12V/1.5A
• Environmental:
  • Operational: 32o – 104oF or 0º – 40ºC
  • Storage: 14o – 140oF or -10º – 60ºC
  • Humidity: 10 – 90% Non-condensing
• Dimension and Weight: (L)180mm(W)120mm*(H)36mm, 356g
