Description

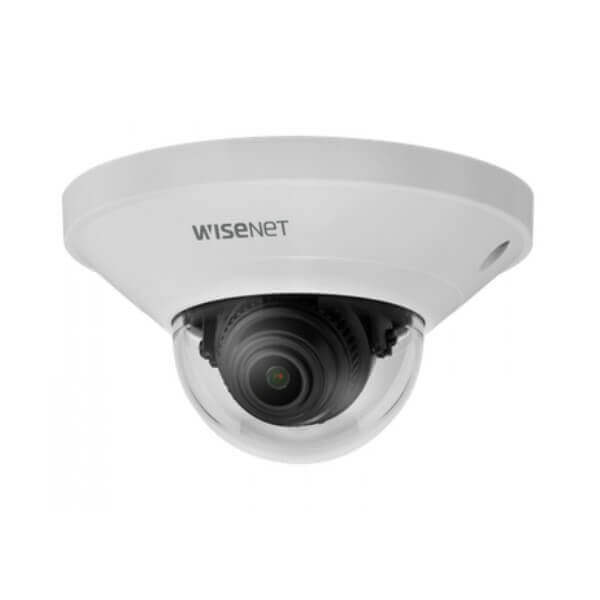

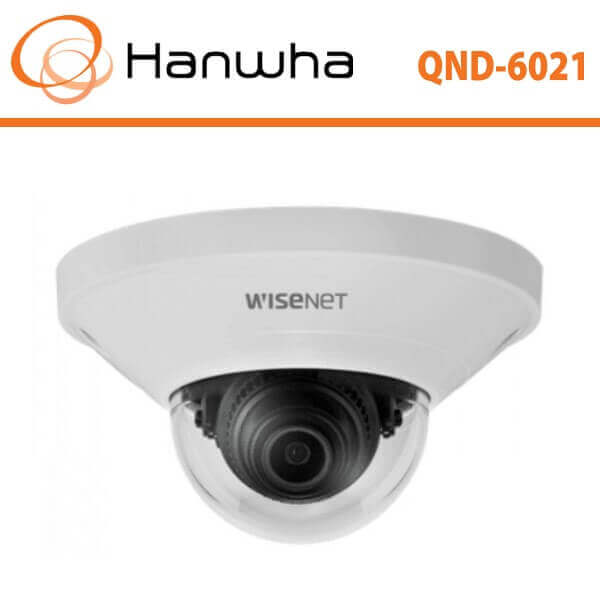

Hanwha QND6021 Indoor Dome Camera
The Hanwha QND6021 is a high-performance mini indoor dome camera designed to deliver superior surveillance capabilities with advanced technology. Featuring full HD imaging, intelligent analytics, and seamless system integration, this compact yet powerful security camera is the perfect choice for businesses, retail stores, offices, and other indoor environments requiring reliable and efficient video monitoring. Its discreet design ensures unobtrusive installation, making it ideal for locations where aesthetics and security must go hand in hand.
The 2-megapixel CMOS sensor in the QND6021 provides full HD video resolution (1920×1080) with exceptional clarity, ensuring detailed footage of faces, objects, and critical events. Whether monitoring hallways, entrances, or customer interactions, this camera delivers high-definition imaging, allowing businesses to enhance their security infrastructure, reduce risks, and improve incident response.
For businesses seeking data-driven insights, the Hanwha QND6021 includes intelligent people counting technology. This built-in feature accurately tracks foot traffic, offering valuable insights for retail stores, offices, and hospitality environments. By analyzing visitor patterns, businesses can optimize staffing, enhance customer service, and streamline operations, ultimately improving efficiency and profitability.
One of the most critical aspects of security monitoring is visibility in varied lighting conditions. The 120dB Wide Dynamic Range (WDR) technology in the QND6021 ensures balanced exposure across high-contrast scenes, such as entrances exposed to direct sunlight or areas with fluctuating indoor lighting. This advanced feature prevents overexposure in bright areas and underexposure in dark areas, ensuring every detail is captured with precision.
Uninterrupted surveillance is crucial for security, and the Hanwha QND6021 includes built-in local edge storage with a micro SD/SDHC/SDXC memory card slot. This feature ensures continuous recording, even during network failures or connectivity issues, providing reliable data redundancy. Businesses can rest assured that their security footage is securely stored and accessible when needed.
Integration with existing security infrastructures is effortless with the Hanwha QND6021. It supports Video Management Systems (VMS) and Network Video Recorders (NVRs), ensuring seamless compatibility with various platforms. Its ONVIF compliance allows for flexible and scalable integration, making it a future-proof investment for businesses looking to expand their security networks.
Designed for discreet indoor surveillance, the compact dome design of the QND6021 blends seamlessly into any indoor setting without drawing unwanted attention. Its intuitive setup process and user-friendly interface make installation and operation hassle-free, allowing businesses to quickly deploy and manage their security system without requiring extensive technical expertise.
Beyond standard surveillance, the Hanwha QND6021 is equipped with intelligent analytics to enhance proactive security measures. Features such as motion detection, tampering detection, and defocus detection provide real-time alerts, enabling swift responses to security threats. The motion detection system instantly notifies security personnel of any unauthorized movement. Tampering detection sends alerts if the camera is obstructed, covered, or interfered with, while defocus detection ensures that image quality remains sharp at all times.
Why Choose the Hanwha QND6021 for Your Surveillance Needs?
The Hanwha QND6021 mini indoor dome camera is more than just a standard security camera—it is a comprehensive surveillance solution designed to deliver exceptional video quality, actionable insights, and seamless system integration. Whether for business security, loss prevention, operational analytics, or customer behavior tracking, this camera offers cutting-edge technology that enhances security while providing valuable business intelligence.
For businesses looking to future-proof their security systems, the QND6021 is a trusted and reliable investment that ensures uncompromised security, continuous monitoring, and seamless operation.
Key Features
- Max. 2Megapixel (1920 x 1080) resolution
- 4mm fixed lens
- 0.03Lux (Color), WDR (120dB)
- Max. 30fps@2MP (H.265 / H.264)
- H.265, H.264, MJPEG codec support, Multiple streaming
- Tampering, Motion detection, Defocus detection
- Micro SD / SDHC / SDXC memory slot (Max. 128GB)
- Hallway view, WiseStream II support
- LDC, PoE
SPECIFICATION
| Video | |
| Imaging Device | 1/2.8″ 2MP CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color: 0.03Lux(F1.6, 1/30sec) |
| Video Out | None |
| Lens | |
| Focal Length (Zoom Ratio) | 4.0mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 87.6 / V: 46.4° / D: 104.5° |
| Min. Object Distance | None |
| Focus Control | Fixed |
| Lens Type | None |
| Mount Type | None |
| Optional Lens | None |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0˚~350˚ / 0˚~69˚ / 0˚~355˚ |
| Pan Range | None |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Azimuth | None |
| Auto Tracking | None |
| Operational | |
| IR Viewable Length | None |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Digital Image Stabilization | None |
| Defog | None |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Digital PTZ | None |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Motion detection, Tampering |
| Business Intelligence | People counting |
| Serial Interface | None |
| Alarm I/O | None |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers |
| Audio In | None |
| Audio Out | None |
| IR Illuminator (Optional) | None |
| Wiper | None |
| Coaxial Protocol | None |
| Video Transmission Distance | None |
| Radiometry | |
| Temperature detect range | None |
| Temperature accuracy | None |
| Temperature detection | None |
| Additional | None |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Resolution | 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
| Smart Codec | WiseStreamⅡ |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Quality Level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Audio Compression | None |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OSx10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OSxonly) |
| Memory | 512MB RAM, 256MB Flash |
| Environmental | |
| Operating Temperature / Humidity | -10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP42, IK08 |
| Electrical | |
| Input Voltage | PoE(IEEE802.3af, Class2) |
| Power Consumption | PoE: Max 4.80W, typical 2.80W |
| Mechanical | |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Product dimensions / weight | Ø99.0×56.0mm(Ø3.9×2.2″), 145g(0.32 lb) |
| Conduit hole | None |
| Hanging mount(Dome) | None |
| Skin cover(Dome) | None |
| Weather cap(Dome) | None |
| Power module | None |
| Backbox | None |
| DORI | |
| Detect (25PPM/ 8PPF) | 40.0m(131.36ft) |
| Observe (63PPM/ 19PPF) | 16.0m(52.54ft) |
| Recognize (125PPM/ 38PPF) | 8.0m(26.27ft) |
| Identify (250PPM/ 76PPF) | 4.0m(13.14ft) |
