Description

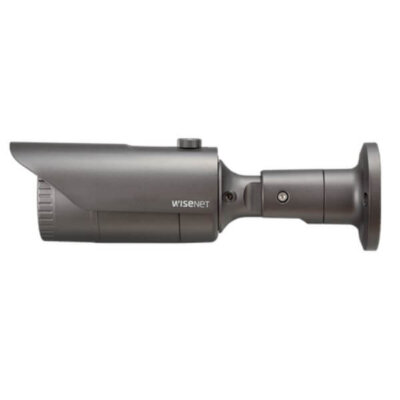

Hanwha QNO7032R Bullet Camera
The Hanwha QNO7032R bullet camera is a robust and high-performance surveillance solution designed to meet the evolving needs of commercial, industrial, and institutional security. Known for its durability, reliability, and image clarity, the QNO7032R is well-suited for locations that demand around-the-clock monitoring. Whether it’s securing a retail environment, monitoring an industrial zone, or protecting government and educational facilities, this camera delivers outstanding performance in a wide range of challenging conditions.
At the heart of the Hanwha QNO7032R is a fixed 6mm lens that offers a 51-degree horizontal field of view, making it ideal for monitoring specific points of interest such as building entrances, perimeters, and access ways. Its precision-focused coverage ensures that important visual details are captured without distortion, making it particularly effective for high-priority zones where clear and reliable imaging is crucial for security operations.
The camera is equipped with 120dB Wide Dynamic Range (WDR), a powerful feature that ensures optimal visibility in complex lighting environments. Whether there is intense backlighting, shadows, or fluctuating brightness levels, the WDR technology balances exposure across the image, resulting in clear, high-quality footage. This is especially important in areas like entrances or windows where lighting conditions can change rapidly throughout the day.
For environments requiring uninterrupted surveillance at night, the Hanwha QNO7032R offers impressive infrared night vision capabilities with a range of up to 30 meters. This enables the camera to capture clear and detailed video in total darkness, providing consistent monitoring during nighttime hours. It’s a critical feature for outdoor areas like parking lots, warehouses, and industrial yards where lighting may be limited or nonexistent.
One of the most valuable aspects of the QNO7032R is its built-in intelligent video analytics, which significantly enhance security automation and situational awareness. The camera supports motion detection, virtual line crossing detection, intrusion detection, and defocus detection. These smart analytics allow for real-time alerts and proactive responses to potential threats, minimizing the need for constant human supervision and reducing the risk of missed incidents.
The QNO7032R also stands out with its efficient video compression technology, supporting H.265, H.264, and MJPEG formats. With H.265 compression, users benefit from lower bandwidth usage and reduced storage requirements while maintaining excellent video quality. This results in cost-effective, scalable video storage solutions—especially important for larger surveillance systems or long-term data retention needs.
Integration is made easy with the QNO7032R, thanks to its compatibility with major Video Management Systems (VMS) and Network Video Recorders (NVRs). As an ONVIF-compliant camera, it can be seamlessly integrated into existing multi-vendor environments, making it a versatile choice for expanding or upgrading surveillance infrastructure. This level of interoperability ensures maximum flexibility and future-proofing for any security system.
The versatility of the Hanwha QNO7032R makes it suitable for a wide range of applications. In retail and commercial environments, it helps monitor entrances, parking areas, and customer zones, reducing theft and enhancing operational safety. In educational institutions, it supports campus security by monitoring perimeters and entry points. Industrial and manufacturing sites benefit from its ability to track operations and ensure safety compliance, while government and institutional buildings can use the QNO7032R to protect sensitive areas and maintain public safety.
Overall, the Hanwha QNO7032R is a powerful surveillance camera that combines advanced imaging technology, intelligent features, and flexible integration capabilities. It delivers the performance, reliability, and clarity required in today’s demanding security environments. With features like wide dynamic range, IR night vision, and smart video analytics, this bullet camera ensures that no critical detail goes unnoticed—day or night.
If you’re looking to upgrade your surveillance system with a dependable and feature-rich security camera, the Hanwha QNO7032R is an excellent choice. Its combination of smart technology, efficiency, and ease of integration makes it a standout solution for modern security challenges. Contact us today to learn more about how the QNO7032R can strengthen your security infrastructure.
SPECIFICATION
| Video | |
| Imaging Device | 1/3″ CMOS |
| Resolution | 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps (@4MP Max. 2fps) |
| Min. Illumination | Color : 0.15Lux (F2.0, 1/30sec) B/W : 0Lux (IR LED On) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 6.0mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 49°, V: 28°, D: 56°˚ |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~360° / 0°~100° / 0°~360° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum/Maximum/Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Motion detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction) |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover(PTZ preset) |
| Audio In | Selectable(mic in/line in) |
| Light Type | IR LED (850nm) |
| Light Viewable Length | 30m (98.42ft) |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264 : Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Smart Codec | Manual (5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTP API) |
| Security | |
| OS / Firmware Protect | Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C (-40°F ~ +131°F) / 0~95% RH ＊Start up should be done at -30°C or above |
| Storage Temperature / Humidity | -40°C~+60°C (-40°F~+140°F) / 0~95% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 10.7W, typical 8W 12VDC: Max 9.1W, typical 6.8W |
| Mechanical | |
| Color / Material | Dark grey / Aluminum |
| Product Dimensions / Weight | ø70.0×246.0mm(ø2.76×9.69″), 700g(1.54 lb) |
| Compatible Conduit hole / Gangbox | Single, Double, 4″Octagon |
| Backbox | SBO-100B1, SBO-147B |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 112.3m(368.60ft) |
| Observe (63PPM/ 19PPF) | 44.9m(147.44ft) |
| Recognize (125PPM/ 38PPF) | 22.5m(73.72ft) |
| Identify (250PPM/ 76PPF) | 11.2m(36.86ft) |
