Description

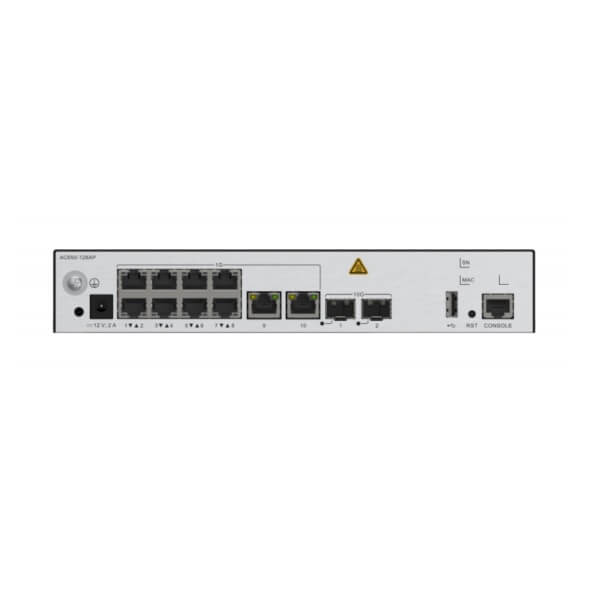

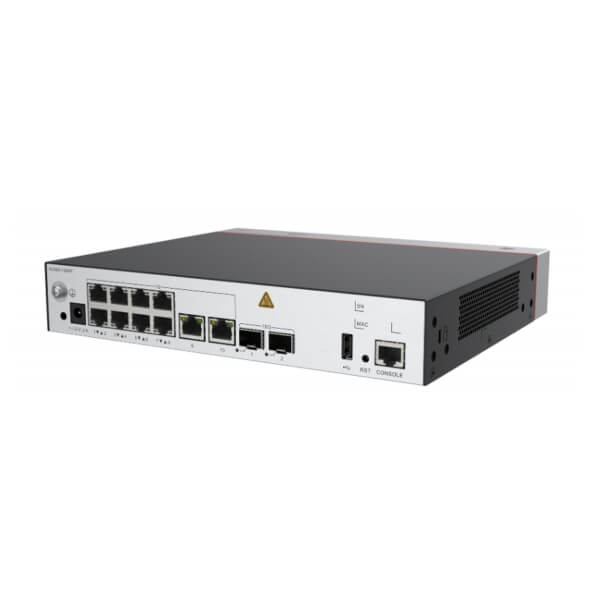

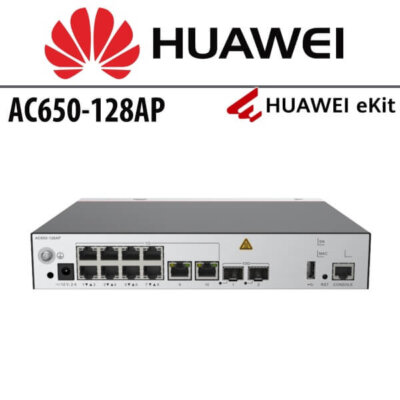

Huawei AC650-128AP Wireless Access Controller Dubai
The Huawei AC650-128AP Dubai is an advanced wireless access controller (AC) specifically engineered by Huawei for the SME Network sector. This device works harmoniously with Huawei access points (APs) to establish powerful wireless networks that cater to a wide range of environments, including small campus networks, office networks for small businesses, and extensive hotspot coverage areas. Capable of managing up to 128 access points, the Huawei AC650-128AP Dubai supports up to 2048 simultaneous STAs (Station Access Points), ensuring reliable and efficient network connectivity across multiple devices. This makes it a perfect choice for small to medium-sized enterprises seeking to build or enhance their wireless networking infrastructure.
Technical Specifications
| Description | AC650-128AP mainframe (10*GE ports, 2*10GE SFP+ ports, with the AC/DC adapter) |
| Part Number | 02355NCG |
| Model | AC650-128AP |
| First supported version | V200R022C10 |
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic: 43.6 mm x 250 mm x 210 mm (1.72 in. x 9.84 in. x 8.27 in.)
Maximum: 43.6 mm x 250 mm x 215 mm (1.72 in. x 9.84 in. x 8.46 in.) |
| Weight without packaging [kg(lb)] | 1.9kg |
| Storage | Nand FLASH 1GB |
| Console port | RJ45 |
| Maximum power consumption [W] | 23.58 W |
| Maximum heat dissipation [BTU/hour] | 80.45 BTU/hour |
| Power supply mode | DC adapter |
| Service port surge protection | 6 kV in common mode |
| Types of fans | None |
| Maximum number of physical ports on the entire device | 2 x 10GE (SFP+) + 10 x GE (RJ45) |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | Ground |
| USB | 1 x USB 2.0 (host type A) port |
| MTBF [year] | 50 year |
| MTTR [hour] | 2 hour |
