Description

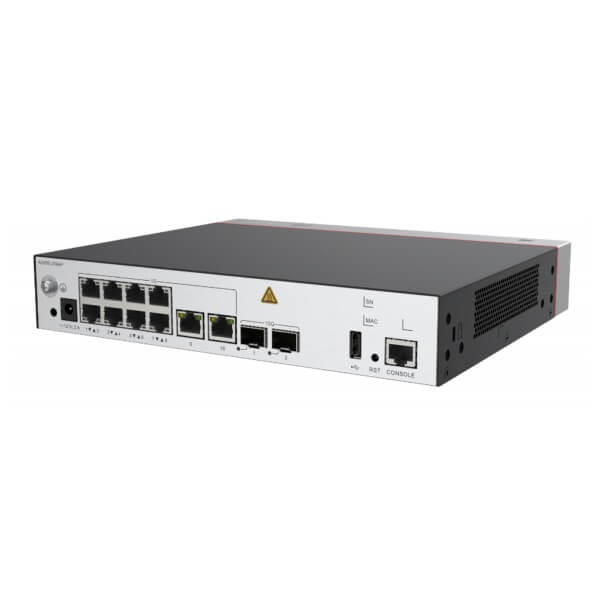

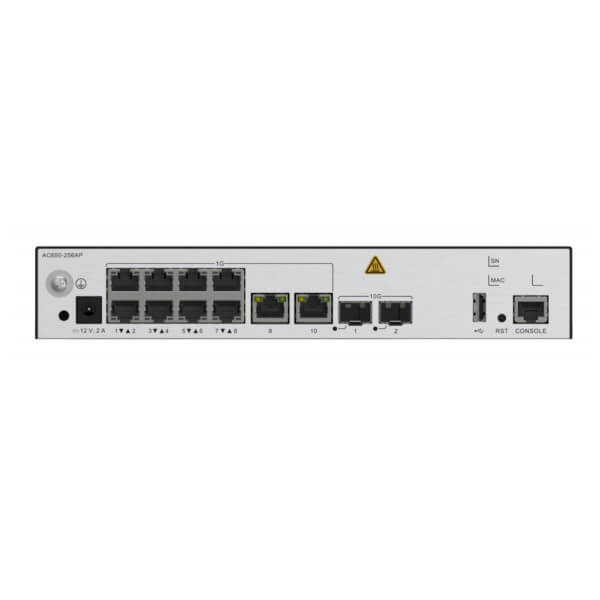

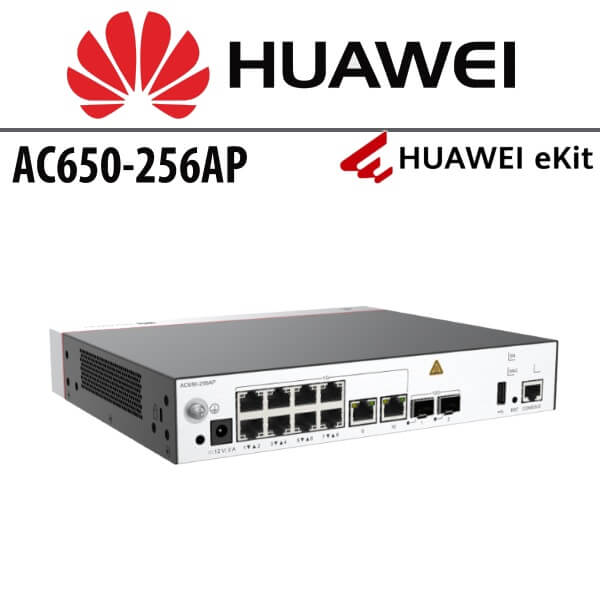

Huawei AC650-256AP Wireless Access Controller Dubai
The Huawei AC650-256AP Dubai is an advanced wireless access controller (AC) designed by Huawei, tailored to address the specific demands of small and medium-sized enterprises (SMEs) within the network market. This cutting-edge device works seamlessly with Huawei’s access points (APs) to create reliable, high-performance wireless networks. It is ideal for various environments, including small campus networks, office networks for smaller enterprises, and locations requiring efficient hotspot coverage. The Huawei AC650-256AP Dubai has the capability to manage up to 256 access points, ensuring consistent and robust network performance and connectivity. Additionally, it can support up to 2048 simultaneous stations (STAs), providing extensive coverage and stable connections for a large number of devices. This makes it an excellent choice for enterprises seeking to enhance their network infrastructure.
Technical Specifications
| Description | AC650-256AP mainframe (10*GE ports, 2*10GE SFP+ ports, with the AC/DC adapter) |
| Part Number | 02355NCH |
| Model | AC650-256AP |
| First supported version | V200R022C10 |
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic: 43.6 mm x 250 mm x 210 mm (1.72 in. x 9.84 in. x 8.27 in.)
Maximum: 43.6 mm x 250 mm x 215 mm (1.72 in. x 9.84 in. x 8.46 in.) |
| Weight without packaging [kg(lb)] | 1.9kg |
| Storage | Nand FLASH 1GB |
| Console port | RJ45 |
| Maximum power consumption [W] | 23.58 W |
| Maximum heat dissipation [BTU/hour] | 80.45 BTU/hour |
| Power supply mode | DC adapter |
| Service port surge protection | 6 kV in common mode |
| Types of fans | None |
| Maximum number of physical ports on the entire device | 2 x 10GE (SFP+) + 10 x GE (RJ45) |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | Ground |
| USB | 1 x USB 2.0 (host type A) port |
| MTBF [year] | 50 year |
| MTTR [hour] | 2 hour |
