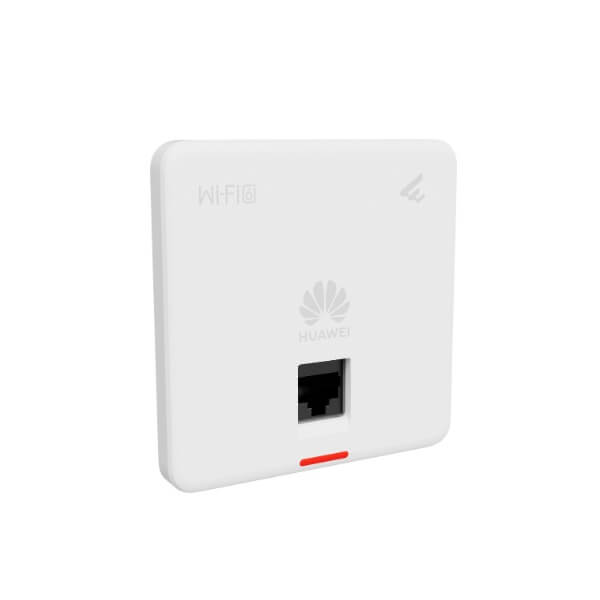

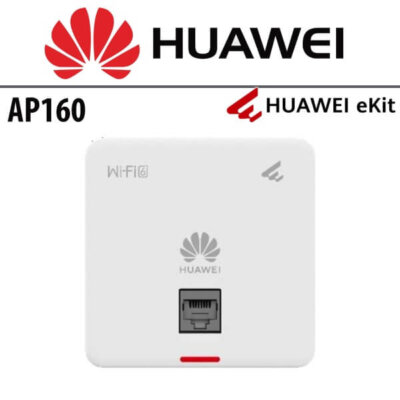

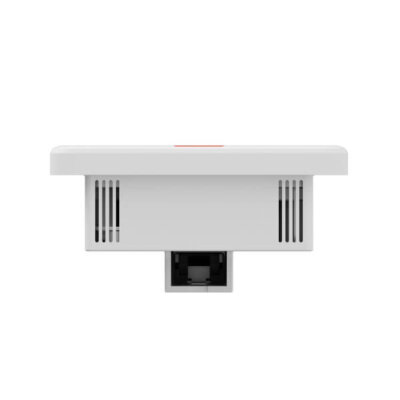

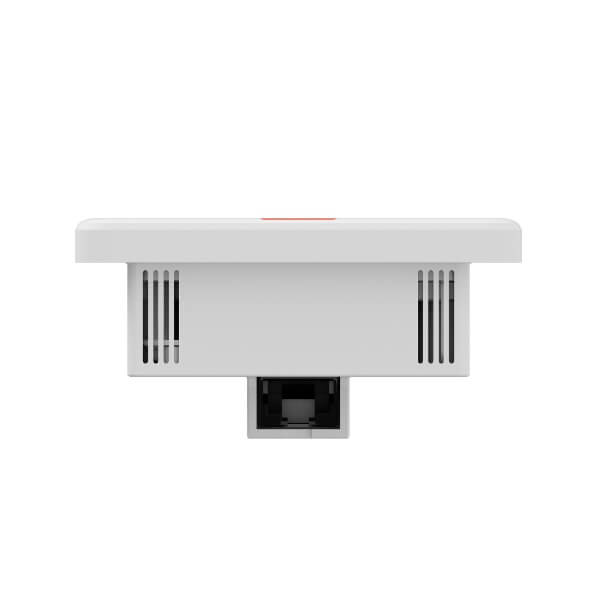

Huawei AP160 Access Point Dubai
The Huawei AP160 Dubai is a state-of-the-art Wi-Fi 6 (802.11ax) wall plate access point engineered to deliver high-speed, reliable wireless connectivity. Designed to operate concurrently on both the 2.4 GHz (2×2) and 5 GHz (2×2) frequency bands, it ensures optimal performance across a wide range of devices, catering to the needs of modern users.
With its high bandwidth capabilities and support for numerous concurrent connections, the Huawei AP160 Dubai is exceptionally well-suited for high-traffic environments. Whether in small- and medium-sized offices, homes, or hotels, this access point excels at maintaining strong, consistent connections, making it an ideal choice for demanding settings. Its compact and versatile design also facilitates flexible deployment options, helping to reduce overall customer investment.
In indoor coverage scenarios, the Huawei AP160 Dubai offers robust and consistent Wi-Fi coverage, making it an excellent solution for enhancing wireless networks in business environments or ensuring seamless, uninterrupted internet access in residential and hospitality settings. Its performance and reliability make it a valuable asset in any space where strong and dependable Wi-Fi is essential.
Features
- Working simultaneously on the 2.4 GHz (2×2) + 5 GHz (2×2) frequency bands
- Uplink: 1 x GE electrical port; downlink: 1 x GE electrical port
- Standard dimensions of 86 mm x 86 mm, allowing for junction box (86 mm) mounting and facilitating deployment
- Built-in smart antennas to provide precise coverage for STAs, reduce interference, and improve signal quality
- Working modes: Fit, Fat, and cloud management
Technical Specifications
| Description | AP160(11ax indoor,2+2 dual bands,smart antenna) |
| Part Number | 50086816 |
| Model | AP160 |
| First supported version | V200R023C00 |
| Installation Type | Junction Box |
| Dimensions without packaging (H x W x D) [mm(in.)] | 86 mm x 86 mm x 42.5 mm (3.39 in. x 3.39 in. x 1.67 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 98 mm x 117 mm x 73 mm (3.86 in. x 4.61 in. x 2.87 in.) |
| Weight without packaging [kg(lb)] | 0.14 kg (0.31 lb) |
| Weight with packaging [kg(lb)] | 0.24 kg (0.53 lb) |
| Storage | NAND Flash 256 MB |
| Console port | None |
| Maximum power consumption [W] | 9.1 W |
| Maximum heat dissipation [BTU/hour] | 29.5 BTU/hour |
| Power supply mode | PoE |
| Input voltage range [V] | PoE: 802.3af |
| Service port surge protection | PoE port:
|
| Maximum number of physical ports on the entire device | GE (RJ45) x 2, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | floating ground |
| BLE | Not supported |
| Radio number | 2 |
| Operating frequency band |
|
| MIMO spatial streams | Radio 0 (2.4 GHz): 2×2
Radio 1 (5 GHz): 2×2 |
| Wi-Fi standard |
|
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4 GHz:
5 GHz:
|
| Maximum transmit power | 2.4G:
5G:
|
| Singal radio transmit power [dBm] |
|
| MTBF [year] | 446 year |
| MTTR [hour] | 2 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3bt power supply description | No function is limited. |
| 802.3at power supply description | No function is limited. |
| 802.3af power supply description | No function is limited. |
| DC power supply description | Not supported |
