Huawei AP263 Dubai

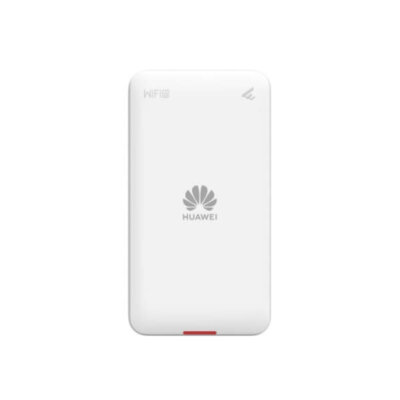

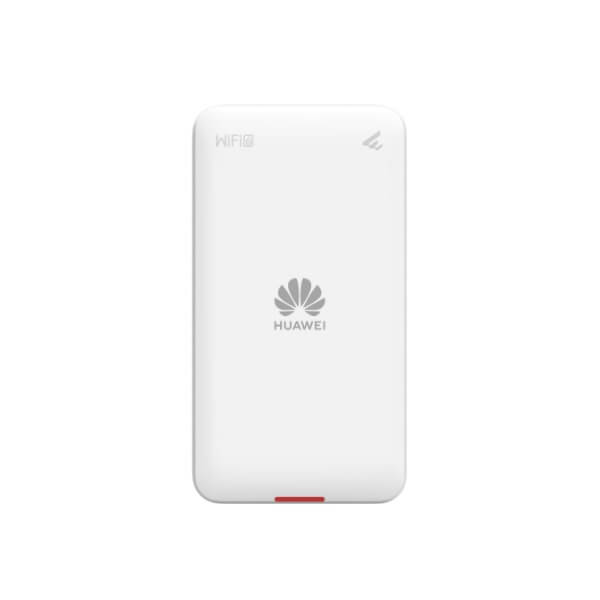

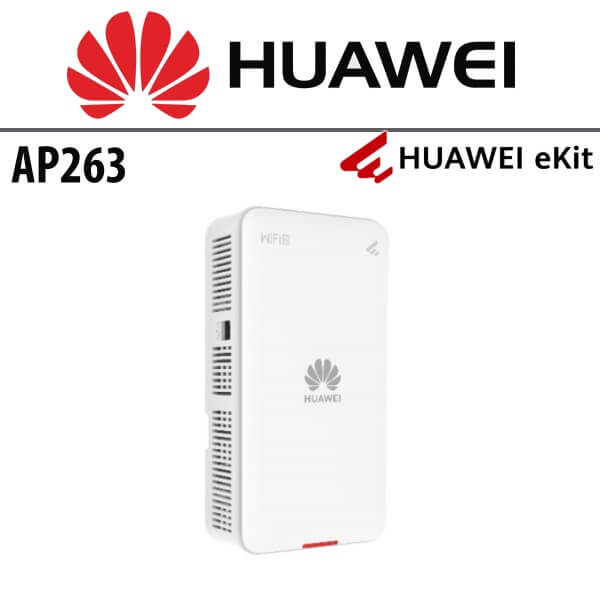

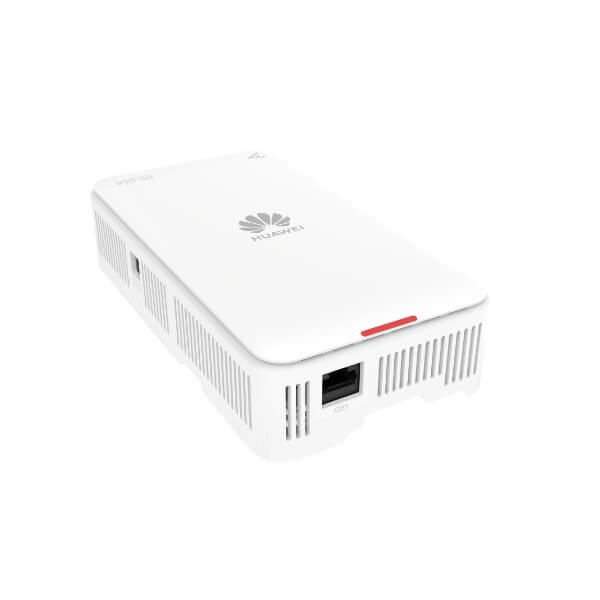

The Huawei AP263 Dubai is a sophisticated Wi-Fi 6 (802.11ax) wall plate access point, meticulously designed by Huawei to meet the demands of modern wireless connectivity.

Description

Huawei AP263 Access Point Dubai

The Huawei AP263 Dubai is a sophisticated Wi-Fi 6 (802.11ax) wall plate access point, meticulously designed by Huawei to meet the demands of modern wireless connectivity. This access point is distinguished by its remarkable high bandwidth and the ability to handle a large number of concurrent connections, making it ideal for environments where multiple devices need to be connected simultaneously without any performance degradation. Its compact and sleek design not only allows for flexible and discreet installation but also contributes to significant space optimization and cost savings for customers. This makes the Huawei AP263 particularly beneficial for enhancing indoor coverage in the small and medium-sized enterprise (SME) sector. It is perfectly suited for a wide range of settings, including small and medium-sized business (SMB) offices, hospitals, cafes, and other environments where reliable and efficient wireless connectivity is a critical requirement.

Features

  • Working simultaneously on the 2.4 GHz (2×2) + 5 GHz (2×2) frequency bands
  • Uplink: 1 x GE electrical port; downlink: 1 x GE electrical port
  • Various installation modes for easy deployment, including wall-mounting and plate-mounting
  • Built-in smart antennas to provide precise coverage for STAs, reduce interference, and improve signal quality
  • USB port for external IoT expansion (supporting protocols such as ZigBee, and RFID)
  • Bluetooth serial interface-based O&M through built-in Bluetooth by collaborating with CloudCampus APP
  • Working modes: Fit, Fat, and cloud management

Technical Specifications

Description AP263(11ax indoor,2+2 dual bands,smart antenna,USB,BLE)
Part Number 50084981
Model AP263
First supported version V200R021C01
Installation Type
  • Desk
  • Wall
  • Ceiling
  • Junction Box
Dimensions without packaging (H x W x D) [mm(in.)] 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 75 mm x 205 mm x 115 mm (2.95 in. x 8.07 in. x 4.53 in.)
Weight without packaging [kg(lb)] 0.320 kg (0.705 lb)
Weight with packaging [kg(lb)] 0.542 kg (1.195 lb)
Storage NAND Flash 256 MB
Console port BLE console
Maximum power consumption [W] 12 W
Maximum heat dissipation [BTU/hour] 41 BTU/hour
Power supply mode
  • DC adapter
  • PoE
Rated input voltage [V] 12 V
Input voltage range [V] 12±10%

PoE: 802.3at/af

Service port surge protection PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B

Maximum number of physical ports on the entire device GE (RJ45) x 2, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa – 106kPa ETSI 300 019-2-3
Ground floating ground
USB USB 2.0 (supporting 5 W power supply)
BLE BLE5.0
Radio number 2
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams Radio 0 (2.4 GHz): 2×2

Radio 1 (5 GHz): 2×2

Wi-Fi standard
  • 2.4 GHz: 802.11b/g/n/ax
  • 5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain 2.4G:
  • 2 dBi/chain (peak value)
  • 1 dBi (combined gain)

5G:

  • 3 dBi/chain (peak value)
  • 1 dBi (combined gain)
  • BLE: 4 dBi
Maximum transmit power 2.4G:
  • 20 dBm/chain
  • 23 dBm (combined power)

5G:

  • 20 dBm/chain
  • 23 dBm (combined power)
  • BLE: < 10 dBm
Singal radio transmit power [dBm]
  • 2.4G: -10 dBm to 20 dBm/chain
  • 5G: -10 dBm to 20 dBm/chain
MTBF [year] 69.7 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3at power supply description No function is limited.
802.3af power supply description The USB function is unavailable.
DC power supply description No function is limited.
