Description

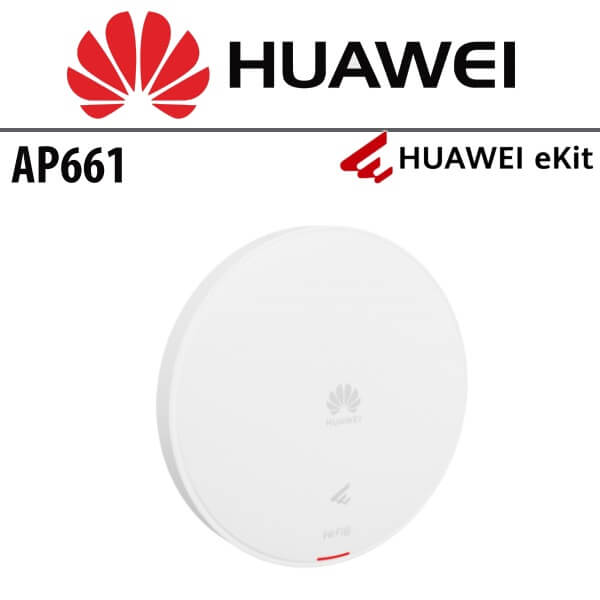

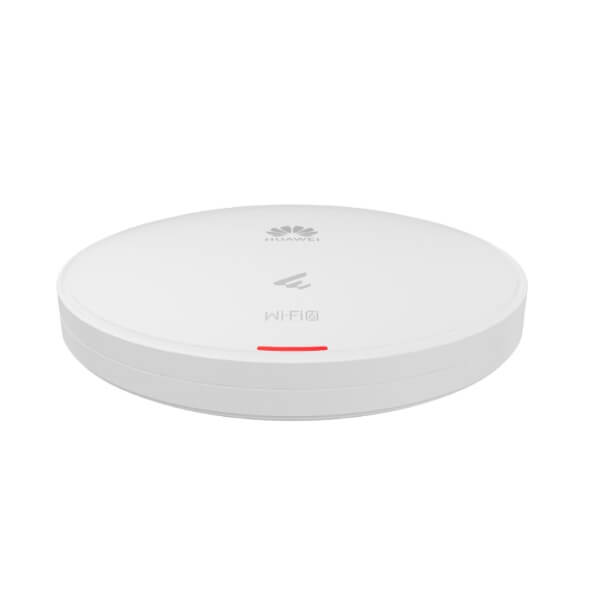

Huawei AP661 Access Point Dubai
The Huawei AP661 Dubai is an advanced wireless access point (AP) that aligns with the latest Wi-Fi 6 standard, delivering top-tier performance. This cutting-edge AP is engineered to operate simultaneously across three different frequency bands: the 2.4 GHz band with 2×2 MIMO, the 5 GHz band with 2×2 MIMO, and an additional 5 GHz band equipped with 4×4 MIMO technology. The integration of built-in smart antennas plays a crucial role in maintaining strong and consistent Wi-Fi signals, significantly enhancing the overall wireless network experience for users. This makes the Huawei AP661 Dubai an ideal choice for settings with high user density, including mobile offices, educational institutions, and large-scale venues like stadiums. With its robust design and high-capacity capabilities, this AP ensures reliable and seamless connectivity in demanding environments.
Features

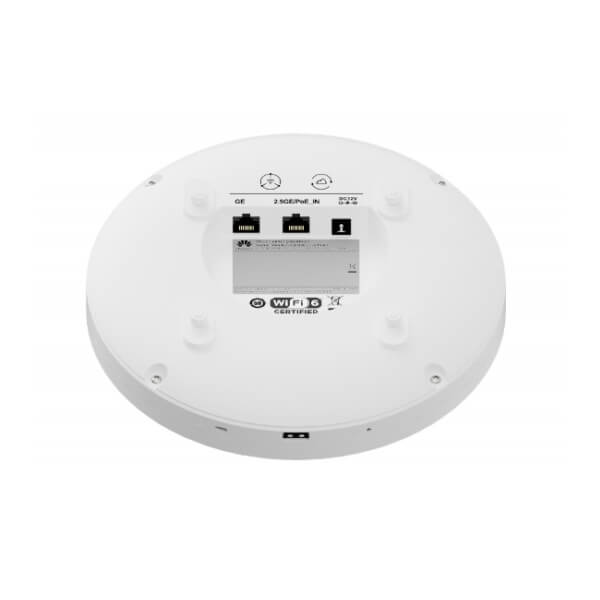

- 1 x 2.5GE electrical port + 1 x GE electrical port
- Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the application environment change, and provide accurate and stable coverage as STAs move
- USB port for IoT expansion (such as ZigBee and RFID)
- Bluetooth serial interface-based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags
- Working modes: Fit, Fat, and cloud management
Technical Specifications
| Description | AP661(11ax indoor,2+2+4 tri bands,smart antenna,USB,BLE) |
| Part Number | 02355VFC |
| Model | AP661 |
| First supported version | V200R023C10 |
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | Diameter x depth: 220 mm x 50 mm (8.66 in. x 1.97 in.) |
| Weight without packaging [kg(lb)] | 1.08 kg (2.38 lb) |
| Storage | NAND Flash 512 MB |
| Console port | BLE console |
| Maximum power consumption [W] | 21.2 (excluding USB), 802.3at/af power supply |
| Power supply mode |
|
| Rated input voltage [V] | 12 V |
| Input voltage range [V] |
|
| Service port surge protection | PoE port:
|
| Maximum number of physical ports on the entire device |
|
| Long-term operating temperature [°C(°F)] | –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | floating ground |
| USB | USB 2.0 |
| BLE | BLE5.2 |
| Radio number | 3 |
| Operating frequency band |
|
| MIMO spatial streams |
|
| Wi-Fi standard |
|
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4G:
5G:
|
