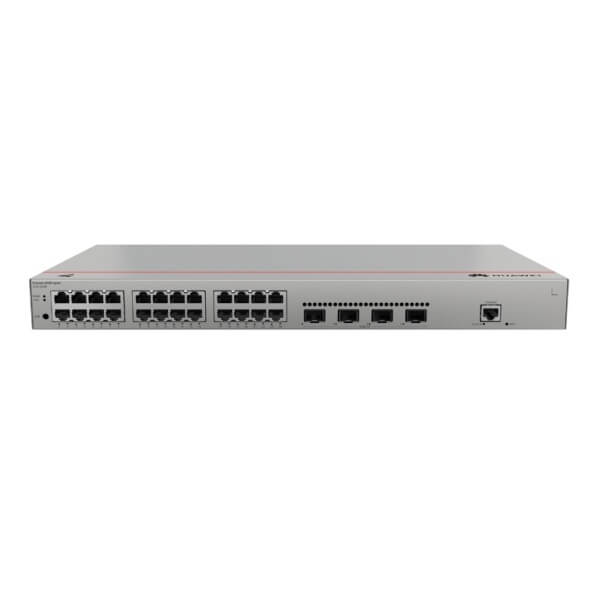

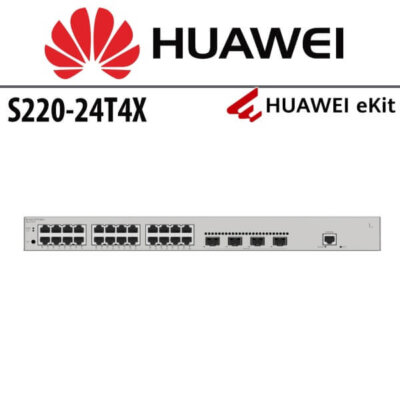

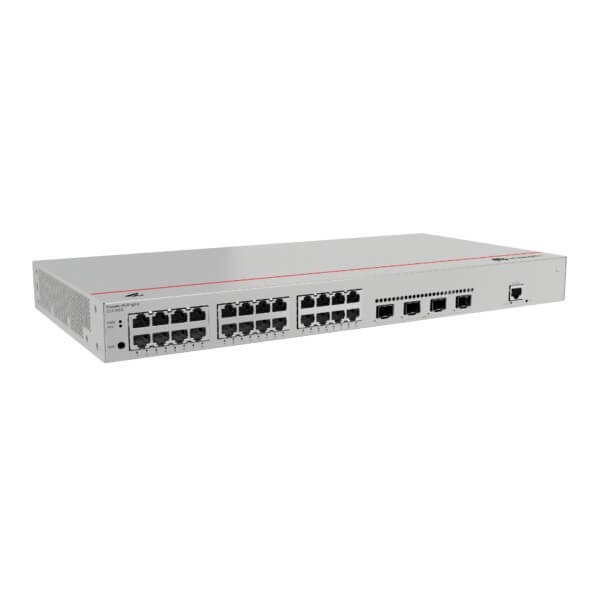

Huawei S220-24T4X Network Switch Dubai
The Huawei S220-24T4X Dubai fixed Ethernet switches are meticulously engineered to seamlessly merge access and transmission functionalities within enterprise networks. These switches have earned a reputation for their reliable access and exceptional transmission quality, making them a top choice for businesses that demand both efficiency and durability in their network solutions. Built on a unified hardware platform, the switches feature a well-integrated system that includes the chassis, power module, fan module, and Switch Control Unit (SCU), all working together to ensure consistent and dependable performance.
As unmanaged switches, the Huawei S220-24T4X Dubai switches are designed without the inclusion of web-based management interfaces or Simple Network Management Protocol (SNMP) capabilities, which are typically used for remote administration. This intentional design choice underscores simplicity and ease of use, making these switches ideal for straightforward network environments that do not necessitate complex management. They provide a practical, efficient, and highly reliable solution for enterprises that prioritize straightforward installation and hassle-free operation. Businesses seeking a no-fuss experience will find these switches particularly advantageous, as they offer a dependable and uncomplicated network solution without the need for advanced management features. The Huawei S220-24T4X Dubai switches present a robust and effective networking option tailored to the needs of modern enterprises, ensuring seamless integration, high performance, and reliable operation within any enterprise environment.
Technical Specifications
| Description | S220-24T4X (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, built-in AC power) |
| Part Number | 98012375 |
| Model | S220-24T4X |
| First supported version | V600R023C00 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 2.32 kg (5.11 lb) |
| Weight with packaging [kg(lb)] | 3.44 kg (7.58 lb) |
| Typical power consumption [W] | 27.27 W |
| Typical heat dissipation [BTU/hour] | 93.05 BTU/hour |
| Maximum power consumption [W] | 35.04 W |
| Maximum heat dissipation [BTU/hour] | 119.56 BTU/hour |
| Static power consumption [W] | 19.00 W |
| MTBF [years] | 70.75 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 47 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 35 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 1 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Uplink ports | 4 x 10GE SFP+ ports |
| Downlink ports | 24 x 10/100/1000BASE-T ports |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Devices cannot start when the temperature is lower than 0°C (32°F). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Maximum input current [A] | 0.8 A |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
