Huawei S220-48T4S Dubai

The Huawei S220-48T4S Dubai fixed Ethernet switches offer an integrated solution for both access and transmission within enterprise networks, ensuring reliable access and high-quality service transmission.

Description

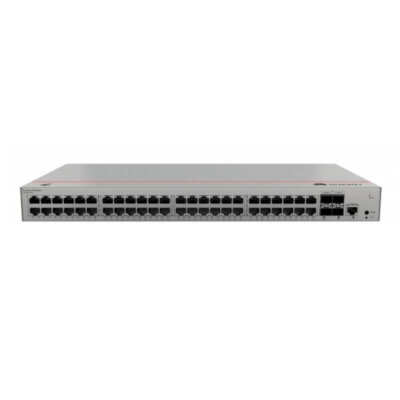

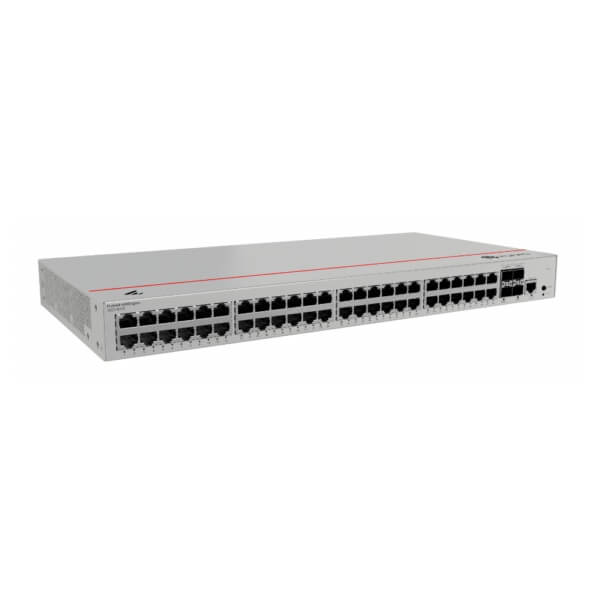

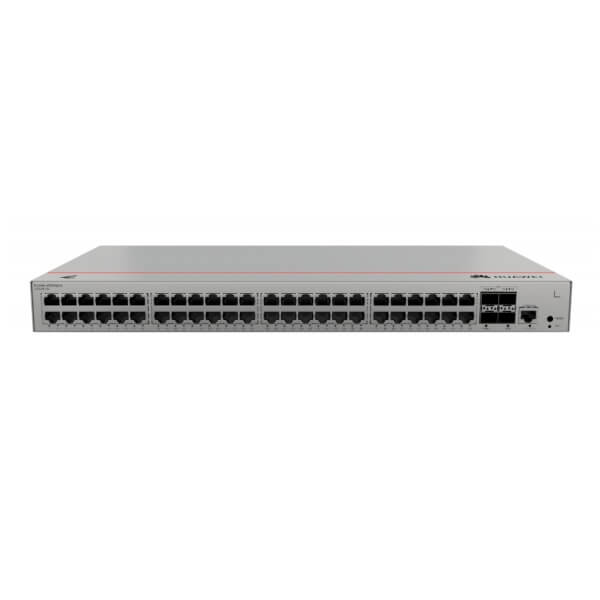

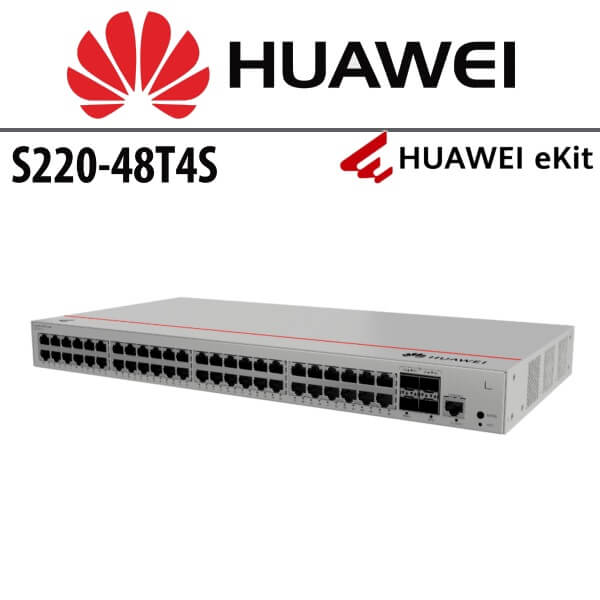

Huawei S220-48T4S Network Switch Dubai

The Huawei S220-48T4S Dubai fixed Ethernet switches offer an integrated solution for both access and transmission within enterprise networks, ensuring reliable access and high-quality service transmission. These switches are built on a unified hardware platform, which encompasses a robust hardware system including the chassis, power module, fan module, and the Switch Control Unit (SCU). As unmanaged switches, the Huawei S220-48T4S Dubai models do not provide support for web-based management interfaces or SNMP-based management protocols. This design emphasizes simplicity and reliability for straightforward network setups, making them ideal for environments where advanced management features are not required.

Technical specifications

Description S220-48T4S (48*10/100/1000BASE-T ports, 4*GE SFP ports, built-in AC power)
Part Number 98012380
Model S220-48T4S
First supported version V600R023C00
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)

Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U] 1 U
Chassis material Metal
Weight without packaging [kg(lb)] 2.71 kg (5.97 lb)
Weight with packaging [kg(lb)] 3.59 kg (7.91 lb)
Typical power consumption [W] 36.15 W
Typical heat dissipation [BTU/hour] 123.35 BTU/hour
Maximum power consumption [W] 43.3 W
Maximum heat dissipation [BTU/hour] 147.74 BTU/hour
Static power consumption [W] 18.8 W
MTBF [years] 40.61 years
MTTR [hours] 2 hours
Availability > 0.99999
Noise at normal temperature (acoustic power) [dB(A)] 46.6 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 34.6 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 1
Switching capacity To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
Packet forwarding rate To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
Uplink ports 4 x GE SFP ports
Downlink ports 48 x 10/100/1000BASE-T ports
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Devices cannot start when the temperature is lower than 0°C (32°F).

The operating temperature ranges from –5°C (23°F) to +45°C (113°F) when optical modules with transmission distances greater than or equal to 60 km are used.

The device does not support dying gasp when the ambient temperature is higher than 40°C (104°F).

Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] AC input: 100–240 V AC; 50/60 Hz
Input voltage range [V] AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz
Maximum input current [A] 1.6 A
Memory 2 GB
Flash memory Physical space: 1 GB
Console port RJ45
Eth Management port Not supported
USB Not supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] Differential mode: ±6 kV; common mode: ±6 kV
Ingress protection level (dustproof/waterproof) IP20
Types of fans Built-in
Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction Air intake from left and air exhaust from right
PoE Not supported
Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification
