Huawei S310-24T4X Dubai

Rating

Huawei S310-24T4X Dubai

The Huawei S310-24T4X Dubai fixed Ethernet switches are designed to effortlessly combine both access and transmission functions, providing dependable access, aggregation, and the delivery of high-quality services for enterprise networks.

Description

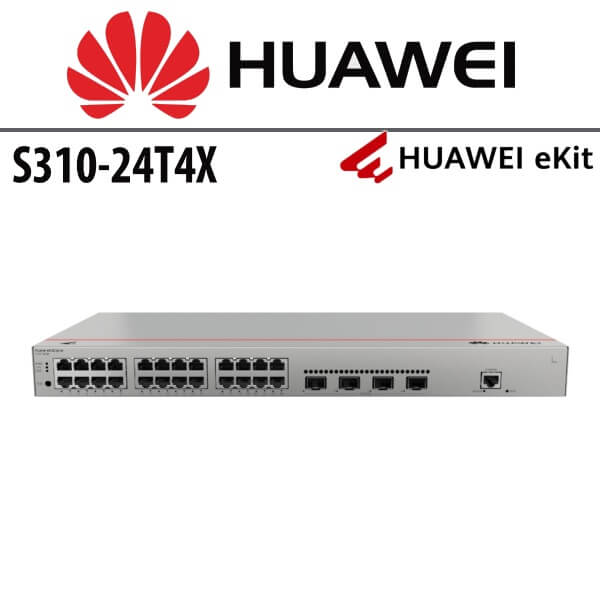

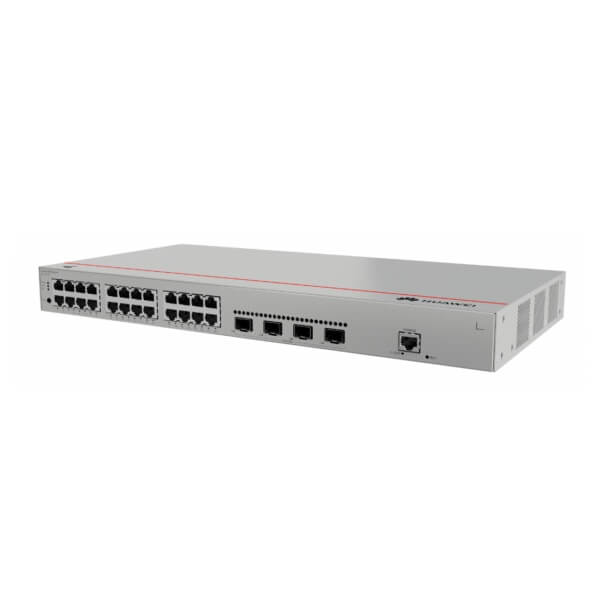

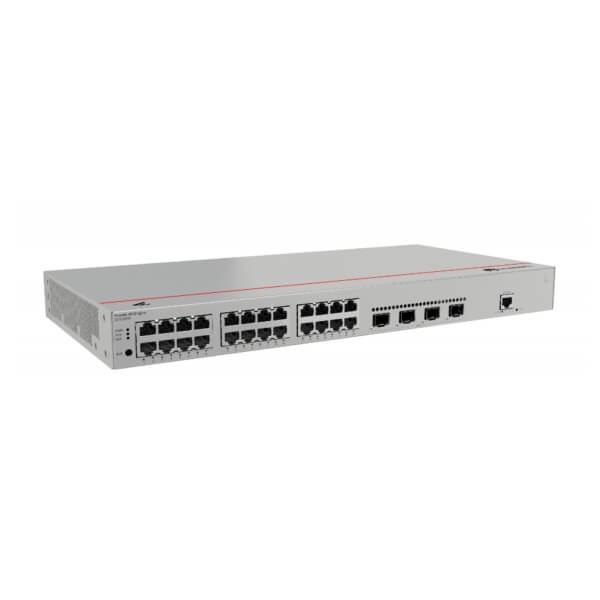

Huawei S310-24T4X Network Switch Dubai

The Huawei S310-24T4X Dubai fixed Ethernet switches are designed to effortlessly combine both access and transmission functions, providing dependable access, aggregation, and the delivery of high-quality services for enterprise networks. Built on a solid and unified hardware platform, these switches include crucial components such as the chassis, power module, fan module, and Switch Control Unit (SCU). The Huawei S310-24T4X Dubai switches are classified as unmanaged switches, meaning they do not support web-based management interfaces or SNMP-based management, which underscores their focus on simplicity and ease of operation. These features make them particularly well-suited for environments where straightforward, plug-and-play functionality is a priority.

Technical Specifications

Description S310-24T4X (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, built-in AC power)
Part Number 98012381
Model S310-24T4X
First supported version V600R023C00
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)

Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U] 1 U
Chassis material Metal
Weight without packaging [kg(lb)] 2.32 kg (5.11 lb)
Weight with packaging [kg(lb)] 3.44 kg (7.58 lb)
Typical power consumption [W] 27.27 W
Typical heat dissipation [BTU/hour] 93.05 BTU/hour
Maximum power consumption [W] 35.04 W
Maximum heat dissipation [BTU/hour] 119.56 BTU/hour
Static power consumption 19.00
MTBF [years] 70.75 years
MTTR [hours] 2 hours
Availability > 0.99999
Noise at normal temperature (acoustic power) [dB(A)] 47 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 35 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 1
Switching capacity To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
Packet forwarding rate To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Devices cannot start when the temperature is lower than 0°C (32°F).

Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] AC input: 100–240 V AC; 50/60 Hz
Input voltage range [V] AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz
Maximum input current [A] 0.8 A
Memory 2 GB
Flash memory Physical space: 1 GB
Console port RJ45
Eth Management port Not supported
USB Not supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] Differential mode: ±6 kV; common mode: ±6 kV
Ingress protection level (dustproof/waterproof) IP20
Types of fans Built-in
Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction Air intake from left and front, air exhaustion from right
PoE Not supported
Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification
