Description

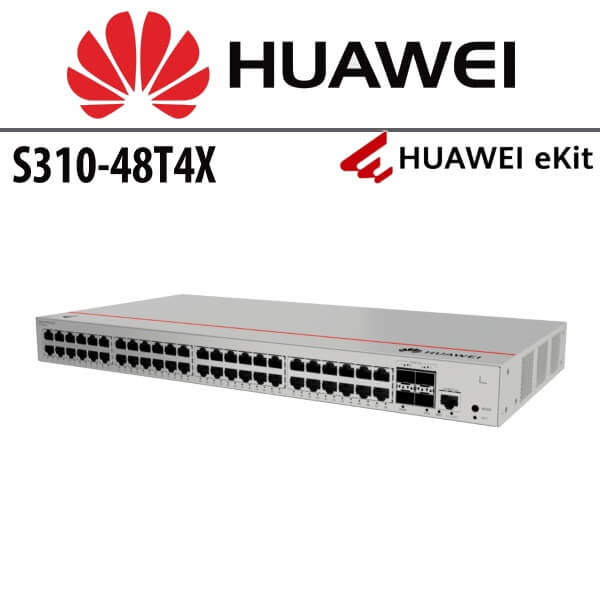

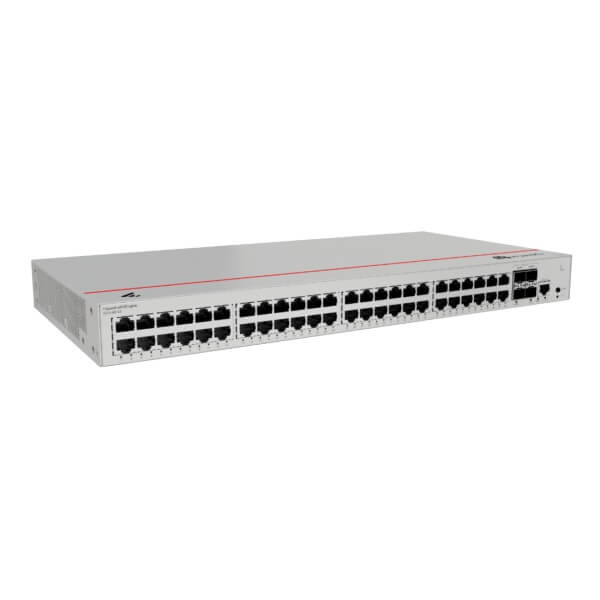

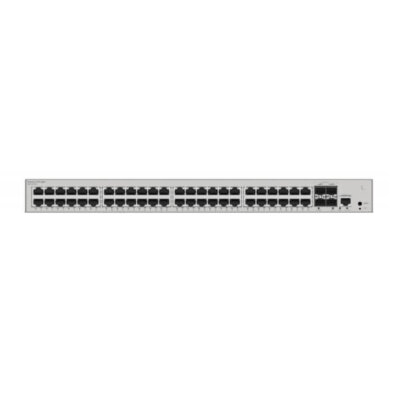

Huawei S310-48T4X Network Switch Dubai
The Huawei S310-48T4X Dubai fixed Ethernet switches are designed to seamlessly integrate both access and transmission functionalities, making them an ideal choice for providing reliable access, aggregation, and high-quality service transmission within enterprise networks. These switches are constructed on a robust, unified hardware platform that incorporates essential components such as the chassis, power module, fan module, and Switch Control Unit (SCU), ensuring consistent performance and durability.
Purposefully designed as unmanaged switches, the Huawei S310-48T4X Dubai switches are crafted with simplicity and ease of use in mind. Unlike managed switches, they do not support web-based management interfaces or SNMP-based management, which streamlines their deployment and minimizes the need for extensive configuration. This makes them an excellent option for environments where straightforward installation and minimal ongoing maintenance are critical. By focusing on providing a hassle-free experience for network administrators, these switches are well-suited to scenarios where the priority is efficient and reliable network operation with minimal intervention.
Technical Specifications
| Description | S310-48T4X (48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, built-in AC power) |
| Part Number | 98012383 |
| Model | S310-48T4X |
| First supported version | V600R023C00 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 2.71 kg (5.97 lb) |
| Weight with packaging [kg(lb)] | 3.59 kg (7.91 lb) |
| Typical power consumption [W] | 36.95 W |
| Typical heat dissipation [BTU/hour] | 126.07 BTU/hour |
| Maximum power consumption [W] | 44.3 W |
| Maximum heat dissipation [BTU/hour] | 151.15 BTU/hour |
| Static power consumption | 18.8 |
| MTBF [years] | 40.61 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 46.6 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 34.6 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 1 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Devices cannot start when the temperature is lower than 0°C (32°F). The operating temperature ranges from –5°C (23°F) to +45°C (113°F) when optical modules with transmission distances greater than or equal to 60 km are used. The device does not support dying gasp when the ambient temperature is higher than 40°C (104°F). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Maximum input current [A] | 1.6 A |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and air exhaust from right |
| PoE | Not supported |
| Certification |
|
