Description

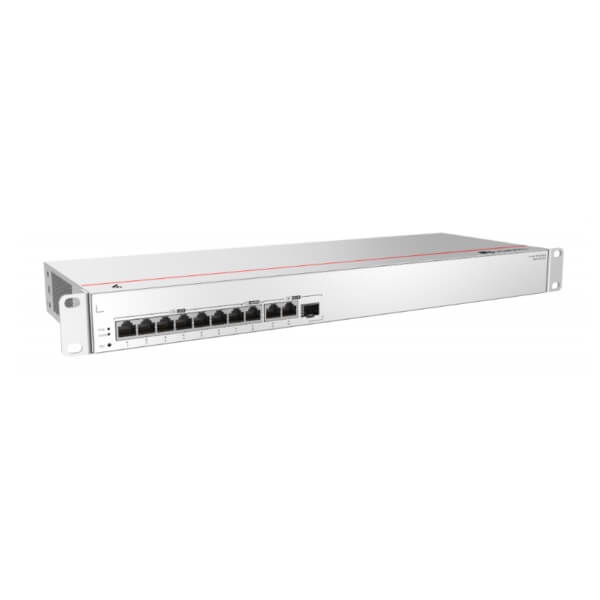

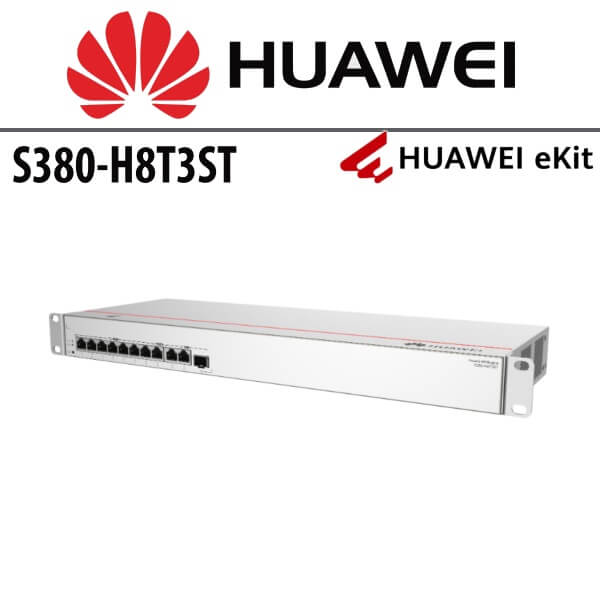

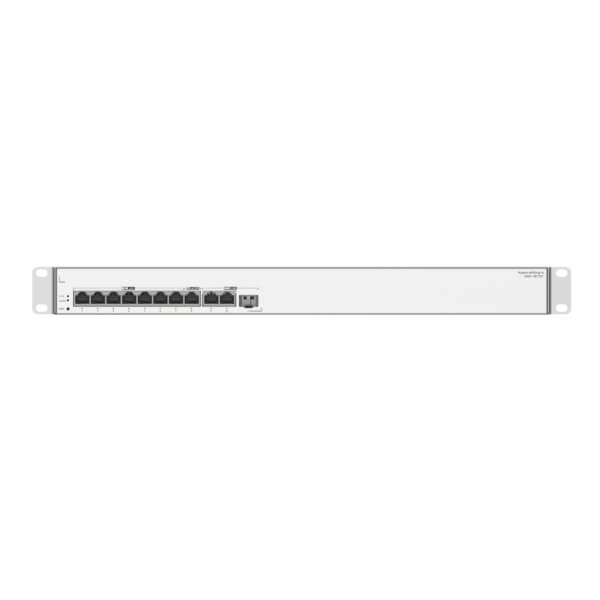

Huawei S380-H8T3ST Multi-Service Gateway Dubai
The Huawei S380-H8T3ST Dubai Multi-Service Gateways represent the pinnacle of modern networking technology, seamlessly combining routing, switching, and wireless access control (WAC) into a single, comprehensive unit. These advanced gateways are available in a variety of configurations, each designed to meet diverse network requirements. Depending on the model, users can choose from options featuring either 4 or 8 downlink GE electrical ports, with configurations that include both Power over Ethernet (PoE) and non-PoE ports, allowing for tailored solutions to fit specific needs. Additionally, certain models come equipped with GE uplink ports, further enhancing the gateways’ flexibility and performance.
Engineered for ease of use, the Huawei S380-H8T3ST Dubai Multi-Service Gateways support versatile Ethernet networking, streamlining installation and deployment processes. Their user-friendly design makes them an ideal choice for a wide range of indoor applications. These gateways are particularly advantageous for small and medium-sized enterprises (SMEs), including small office/home office (SOHO) environments, budget-conscious hotels, manufacturing plants, primary and secondary educational institutions, and building security systems. Their impressive versatility ensures that the Huawei S380-H8T3ST Dubai can effectively cater to the varied networking needs of different business sectors, delivering reliable and efficient performance across multiple applications.
Additionally, the Huawei S380-H8T3ST gateways are designed for scalability, allowing businesses to easily upgrade and expand their network infrastructure as they grow and their networking requirements evolve. The incorporation of advanced security features provides robust protection against potential threats, ensuring the integrity and confidentiality of the network. This blend of features makes the Huawei S380-H8T3ST Dubai Multi-Service Gateways an ideal choice for businesses seeking a reliable, high-performance networking solution capable of adapting to their changing needs. With these gateways, companies can confidently expand their network infrastructure, assured of a dependable and versatile solution that supports both growth and operational efficiency.
Technical Specifications
| Description | S380-H8T3ST, 2*GE WAN, 1*GE(SFP) WAN, 8*GE LAN |
| Part Number | 98012181 |
| Model | S380-H8T3ST |
| First supported version | V600R022C10 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 160.0 mm (1.72 in. x 17.4 in. x 6.3 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 166.7 mm (1.72 in. x 17.4 in. x 6.56 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 260.0 mm (3.54 in. x 21.65 in. x 10.24 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 1.6 kg (3.53 lb) |
| Weight with packaging [kg(lb)] | 2.1 kg (4.63 lb) |
| Typical power consumption [W] | 11.25 W |
| Typical heat dissipation [BTU/hour] | 38.4 BTU/hour |
| Maximum power consumption [W] | 11.5 W |
| Maximum heat dissipation [BTU/hour] | 39.2 BTU/hour |
| Static power consumption | 6.49 |
| MTBF [years] | 63.71 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| WAN ports | 2 x GE WAN, 1 x GE (SFP) WAN |
| LAN ports | 8 x GE LAN |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Maximum input current [A] | 0.8 A |
| Memory | DDR4: 1 GB |
| Flash memory | NAND Flash: 512 MB |
| Console port | Not supported |
| Eth Management port | LAN port |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±4 kV |
| Power supply surge protection [kV] | Power adapter: ±6 kV in differential mode and ±6 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Not supported |
| Certification |
|
