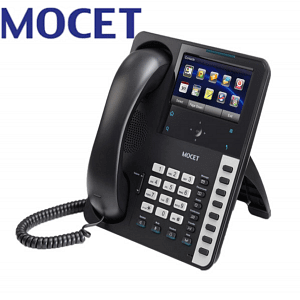

MOCET IP3072
MOCET IP3072 supports android-like interface for easy-use by users. It supports six lines and 24 call appearances to satisfy the executive business users. Utilizing a next generation resistive touch 4.3″ LCD screen and capacitive sensitivity smart-phone-like control panel design, the touch-based user interface simplifies even the most complicated calling features. The IP3072 can be positioned at three tilt angles with a wall mount option, as well as it has a built-in two ports Gigabit Ethernet switch with Class 2/3 power over Ethernet (PoE) support, and eight programmable keys. The IP3072 can be automatically provisioned from a local or Internet based server using the built-in MOCET auto-provisioning and management protocols.
It supports HD acoustic and laud speakerphone for hands-free application and also wideband quality audio to handset and headset users. Besides, an IP-EHS box can be an option that can connect with an external wireless Blue tooth headset for mobility in office. And also an IP-EDMX extended dial module accessory can be connected to IP3072 to increase more powerful programmable features and BLF/SLA status monitoring and control.
The IP3072 supports many advanced features including call hold, transfer, forwarding, 3-way conferencing, MWI, CWI, music on-hold (MOH), do not disturb (DND), and auto-answer and is compliant with industry-standard SIP protocols and many servers including those based on Broadsoft, Asterisk, 3CX, Kerio, Metaswitch, Freeswitch and more. Therefore, the IP3072 can be deployed and used anywhere there is a suitable local area network (LAN) with Internet access and a local or remotely hosted SIP server.
There is built-in support for video applications using stand-alone remote IP cameras, making the IP3072 a perfect solution for office automation, security or hospitality applications. It can be used for door phone or video conference or surveillance purpose. In addition, the IP3072 supports SD card for multi-media data storage, USB port for add-on peripherals (including Flash memory, keyboard, and more) and IP-EDMX extended dial modules for extended programmable keys and features.
XML Software Development Kit Available
The IP3072 SDK is available for developer. It provides complete documentation, programming source code examples, and several functional applications so that the programmer can start easily with the implementation and deliver their XML-based valuable services to their users in a short time. The XML-based App can communicate with IP3072 to display all messages as XML Web browsing. And IP3072 will execute the commands from App to control the phone operation and provide higher powerful application.
IP 3072 Features
- Elegant innovative design with the latest technologies
- Complete VoIP and networking protocol support
- 4.3″ color LCD with resistive touch screen
- HD audio chamber design in handset and speakerphone
- 6 SIP lines with support up to 24 call appearances
- Multimedia coprocessor for music, video, and picture applications
- Extensive IP networking support including VLAN, VPN, and IPv6
- Supports up to 2 IP-EDMX programmable button modules
- Asterisk, Freeswitch, Metaswitch and Broadsoft interoperability
- XML SDK for custom applications and user experience programming
- Support IP camera* for video applications
Display
- Resistive touchscreen
- 4.3 inch TFT LCD (480×272 pixels)
- Graphic user interface
- Wallpaper changeable
- Brightness adjustable
- Line and Phone status indication icons
- Date and time
- English language support
LED
- 1 message waiting indication LED
- 1 handset LED to indicate urgent call and link failure
- 8 programmable keys with LEDs
- Function key LEDs for speaker, mute, hold and headset
Configuration and Management
- Embedded Web (HTTP Server) for management
- Auto-provisioning, security, encryption support
- Remote and local configuration and upgrade through FTP, TFTP and HTTP server
- Engineering trace log
- Asterisk, Freeswitch, Metaswitch and Broadsoft interoperability
Audio
- Codecs: G.711(A-law and u-law), G.722, G.723.1*, G.726, G.729A/B*, LINPCM256
- Individual volume settings with visual indication for handset, headset, hand-free and ringer
- Voice activity detection (VAD)
- Comfort noise generation (CNG)
- Acoustic gain and echo cancellation (AGC, AEC)
- Adaptive jitter buffers and packet loss concealment (PLC)
- DTMF tone generation (RFC2833, in-band and SIP-INFO)
- Near full-duplex speakerphone
Network
- IETF SIP V2 (RFC3261)
- STUN NAT, DHCP, TFTP, Telnet, DNS, SNTP, HTTP, SNMPv2
- IPv4 and IPv6 protocol
- Security: IEEE 802.1x, HTTPs, TLS, SSL, SRTP, SIPS, VPN IPsec
- Instant messaging: SIMPLE
- Support XML based applications
- Email: POP3 & SMTP protoco
Call Features
- 6 lines appearances
- 3-way conference
- Caller ID with picture, call timer, CLIP/CLIR
- Call hold, call transfer(blind and attended), call forward, call waiting with indicator tones
- Music on hold, speed dial, redial
- Distinctive incoming call treatment
- DND, BLF
Applications
- Alarm clock
- Calendar
- World clock
- MemoPad
- Voice recorder
- Painting board
- Answering machine
- Digital photo frame player
- Multimedia player
- File manager
- XML browser
- SIMPLE-based instant messageing with text, picture, and multi-media support
- Video application: preprogrammed call party, door phone and surveillance
I/O Ports
- Two 10/100/1000M Ethernet RJ-45 ports for LAN and PC
- Built-in auto sensing IEEE802.3af PoE with a slide Class2/3 switch control
- Two RJ-9 ports for handset and headset
- One DC jack port for power adapter
- One EDM port for extended dial module
- One USB1.1 type A port for keyboard
- One MicroSD card slot
Conformance
- FCC Class B and CE Class B
- Safety: U/L and LVD
- Environment: RoHS and WEEE
- Optional Accessories
- IP-WMKX: wall mount kit
- IP-EDMX: extended dial module
- PA-5V2A: AC/DC power adapter (5V/2A)
- WR211N: wireless 802.11 b/g/n Ethernet bridge/router
Physical Specification
- Weight of product: 930g
- Dimension: 233 x 200 x 45 mm
- Operating temperature: 0oC to 40oC (32oF to 104oF);
- Storage temperature: -20oC to 60oC (-4oF to 140oF)
- Operating relative humidity(non-condensing): 15% to 85%
