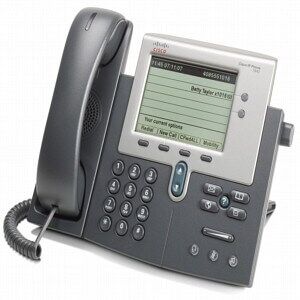

Cisco CP-7942G IP Phone

Cisco IP Phone 7942G model is a full-featured telephone that provides voice communication over the same data network that is used by computers, allows you to make and receive calls and transfer calls, make conference calls, etc. In addition to the basic functions call handling, IP phone 7942G can provide specialized or advanced telephony features that extend your call-handling capabilities. Four dynamic soft keys in conjunction with the display allow easy and rapid access to relevant functions. IP Phone 7942G also offers many useful security features, and the ability to use IEEE 802.3af protocol in order to use Power over Ethernet (PoE), Cisco inline power, or using the optional AC adapter.



Category:

Description

Cisco CP-7942G

The basic IP phone designed for integrators, small, medium and large enterprises.

Product Features

  • 2 lines
  • LCD Display (Black): 5 “/ 320 x 240 px in 4bitowej grayscale
  • Supported signaling protocols:  SCCP (Call Manager) / SIP (after an additional license)
  • Headset Jack:  RJ-9
  • 2-port 10 / 100BASE-T RJ-45 Ethernet (IEEE 802.3)
  • Wideband audio codec support G.722 compliant with TIA 920, the ability to support a headset and loudspeaker
  • Supported codecs: G.711a, G.711u, G.729a, G.729ab, G.722 and iLBC audio compression codecs
  • Speaker: Full-duplex with noise correction function
  • Function Keys: 8
  • QoS: DSCP service and standards 802.1.Q / p
  • Security – The phones are supplied with factory-installed X.509v3 certificate, AES-128, service EAPOL pass-through
  • Call Control Compatibility: Supported by Cisco Unified Communications Manager Versions 4.1 (3) sr5b, 4.2 (3) sr2b, 4.3 (1), 5.1.1 (b), 5.1 (2) 6.0 (1) and later, supported by Cisco Unified Communications Express and SRST Version 4.1
  • Compliant with IEEE 802.3af PoE   (Class II), optional 48VDC power supply can be connected.
  • Dimensions: 20.32 (W) 26.67 x (w) x 15.24 (G) cm
  • Weight: 1.6kg
  • Color: dark gray with silver frame
  • Material: Plastic ABS
  • Required phone software: 8.3 (2) and later
  • Permissible temperature 0 ° C ~ 40 ° C
  • Operating humidity 10 to 95% (non-condensing)
