Description

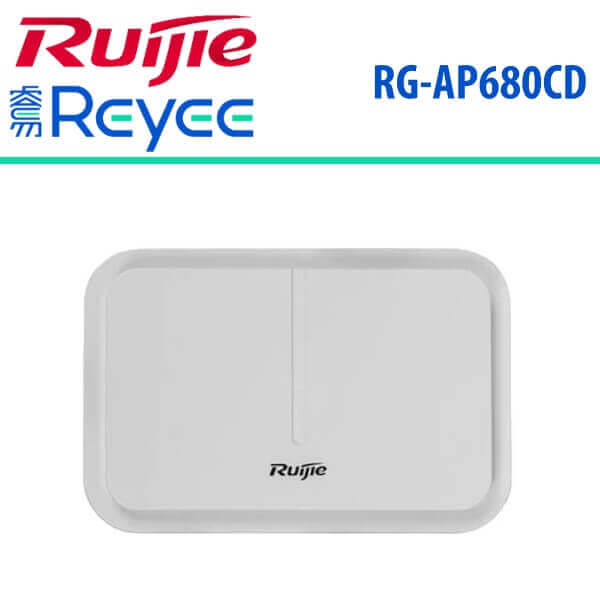

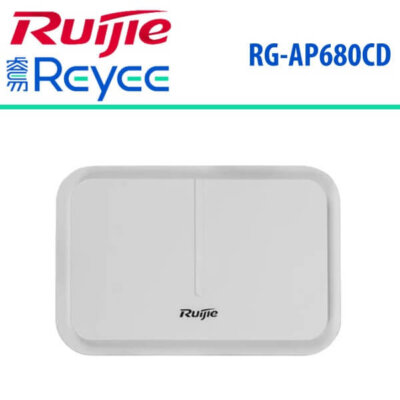

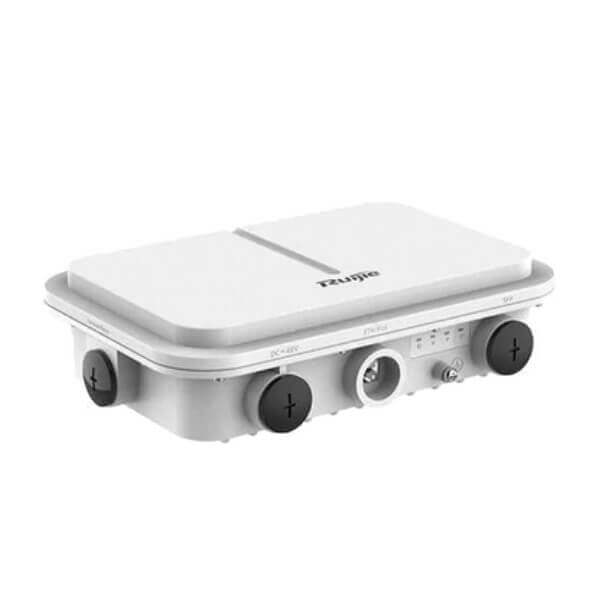

Ruijie RG-AP680CD Accesspoint Dubai
The Ruijie RG-AP680CD Accesspoint Dubai is a high-performance, enterprise-grade Wi-Fi 6 outdoor access point (AP) with an IP68 rating for extreme weather conditions. It offers dual-band speeds of up to 2.4Gbps, 4 spatial streams, and a built-in directional antenna. The RG-AP680CD can be used in standalone mode or managed by a Ruijie RG-WS Wireless Controller Series or Cloud AC.
The RG-AP680CD’s IP68 rating makes it ideal for use in harsh outdoor environments such as stadiums, parks, campuses, and city streets. It can withstand extreme temperatures, dust, rain, snow, and other harsh environmental conditions. This makes it a reliable choice for providing Wi-Fi access in challenging environments.
The RG-AP680CD’s built-in directional antenna provides long-range Wi-Fi coverage, making it a good choice for covering large areas. The RG-AP680CD also supports multi-hop and point-to-multipoint bridge features, which makes it easy to deploy in complex environments.
Ruijie offers a variety of wireless controller options for the RG-AP680CD, depending on your needs and budget:
- Public Cloud: Ruijie Cloud is a cloud-based wireless management platform that is ideal for small and medium-sized businesses. It offers integrated features such as a captive portal, authentication, and reporting.
- Hybrid Cloud: RG-WS6000 Series Wireless Controllers are on-premises appliances that offer a wide range of wireless management features, including support for up to 5000 APs per cluster. You can also add cloud management functionality to RG-WS6000 Controllers for additional features such as centralized device configuration and monitoring, AI-powered RF optimization, and reporting.
- Private Cloud: RG-MACC Software Controllers are ideal for ISPs, MSPs, government agencies, and multinational corporations with diverse customer sites and complex integration needs. RG-MACC supports unified device management for wireless access points, switches, and gateway devices.
In addition to the features mentioned above, the Ruijie RG-AP680CD Accesspoint Dubai also supports a variety of other advanced features, such as:
- Guest networking: Allows you to create separate Wi-Fi networks for guests, with different access permissions and security settings.
- Bandwidth management: Allows you to control the amount of bandwidth that each user or device can consume.
- Security features: Supports a variety of security features, such as WPA2-Enterprise and 802.1x authentication.
The Ruijie RG-AP680CD Accesspoint Dubai is a powerful and versatile Wi-Fi 6 outdoor AP that is suitable for a wide range of applications. It is backed by a variety of wireless controller options to meet your specific needs and budget.
Here are some specific examples of how the Ruijie RG-AP680CD Accesspoint Dubai can be used:
- Stadiums
- Parks
- Campuses
- City streets
- Public transportation hubs
- Retail stores
- Hotels
- Hospitals
- Manufacturing facilities
- Warehouses
- And other challenging outdoor environments
The Ruijie RG-AP680CD Accesspoint Dubai is a reliable and powerful Wi-Fi 6 outdoor AP that can be used to provide high-speed wireless access in a variety of challenging environments.
Features
- Wi-Fi 6 Certified
- Max 2.4Gbps with concurrent dual-band Design
- Max 1024 Client connections
- Built-in Smart Directional Antenna
- Outstanding Environmental Adaptability (IP68, -40-65°C, Surge Protection upto 9kV)
- OFDMA, MU-MIMO and BSS Technology for minimal wireless signal interference
- Hybrid Management : support standalone AP to over thousands of APs with deployment options of appliances, private cloud or public cloud service
- Mobility Management : Free mobile app available for RG-MACC-Base private cloud or Ruijie Public Cloud customers
Wi-Fi 6 (802.11ax) Technology
Ruijie RG-AP680CD Accesspoint Dubai adopts the dual-band dual-radio 802.11ax design with up to 4 spatial streams and built-in directional antenna. The first radio offers up to 0.575Gbps access rate at 2.4G and supports switching to 5G with up to 1.2Gbps access rate, while the second radio offers up to 1.2Gbps access rate at 5G. The AP offers a maximum wireless access rate of 2.4Gbps. 2.4G + 5G is recommended, which offers access rate of 1.775Gbps.
OFDMA High-density User Access
Ruijie RG-AP680CD Accesspoint Dubai supports OFDMA of 802.11ax, which divides the WLAN channel into multiple narrower subchannels, with each user occupying one or more subchannels. By scheduling multiple users to receive and send packets concurrently via the AP, user competition and back-off can be reduced, thereby reducing network latency and improving network efficiency.
Spatial Reuse with BSS Color
Ruijie RG-AP680CD Accesspoint Dubai supports spatial reuse with basic service set (BSS) color of 802.11ax to identify the BSSs of different WLANs in the network by different coloring (BSS color), and further divide them into internal (BSS which belongs to the device) and external BSS. Different packet receiving and sending thresholds can be maintained. When receiving packets, BSS coloring is used to quickly identify the packet of external BSS. If the signal strength is lower than the receiving threshold of external BSS, the packet will be ignored. The transmission of the internal BSS packets will be not affected. This technology can implement channel reuse in a high-density scenario, greatly reducing the impact of co-channel interference for the actual network deployment.
Industry-leading Local Forwarding Technology
Employing Ruijie’s intelligent local forwarding technology, Ruijie RG-AP680CD Accesspoint Dubai eliminates the traffic bottleneck of wireless access controllers. Deploying with the Ruijie RG-WS Wireless Controller Series, users can flexibly configure the data forwarding mode for Ruijie RG-AP680CD Accesspoint Dubai . The AP also controls whether the data will be forwarded via the wireless controller according to the SSID or user VLAN, or directly sent to the wired network for data exchange. The local forwarding technology can classify and forward delay-sensitive data which requires real-time transmission through the wired network to greatly alleviate the traffic pressure on the wireless controllers and better meet the high traffic transmission requirements of the 802.11n and 802.11ac network.
Abundant QoS Policies
Ruijie RG-AP680CD Accesspoint Dubai supports a wide variety of QoS policies. For example, it provides WLAN/AP/STA-based bandwidth limitations which prioritize important and critical data transmission over others for bandwidth guarantee. With the multicast-to-unicast technology, Ruijie RG-AP680CD Accesspoint Dubai resolves the video lagging problem due to packet loss or high latency in the wireless network, and highly enhances user experience of the multicast video services of wireless networks.
Specifications
| Hardware Specifications | |
| Model | RG-AP680(CD) |
| Radio | Dual-radio dual-band：
|
| Protocol |
|
| Operating Bands |
(Note : the operating bands varies according to different countries) |
| Antenna | Built-in directional antenna |
| Antenna Loba Orientation |
|
| Antenna Gain | 9dBi |
| Spatial Streams | 4 spatial streams, MU-MIMO |
| Max Throughput |
|
| Modulation |
|
| Receiver Sensitivity |
|
| Maximum Transmit Power | 28dBm
(Note : The actual transmit power varies according to different countries and regions) |
| Adjustable Power | 1dBm |
| Dimensions | 251mm × 168mm × 64mm (without mounting bracket) |
| Weight | <1.5kg |
| Service Ports |
|
| Management Port | 1 console port |
| Bluetooth | Support switching between Bluetooth serial port and iBeacon |
| Power Supply |
|
| Power Consumption | <12.95W |
| Operating Environment |
|
| Installation Mode | Wall/pole-mount installation |
| IP Rating | IP68 |
| MTBF | 250,000 hours |
| Surge Protection | Common mode +/-9kV |
| Safety Standard | GB4943, EN/IEC 60950-1 |
| EMC Standard | GB9254, EN301 489 |
| Radio Standard | SRRC, EN300 328, EN301 893 |
| Wi-Fi Alliance |
|
| Software Features | ||
| WLAN | Maximum clients per AP | 1024 |
| SSID capacity | Up to 32 | |
| SSID hiding | Support | |
| Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID | Support | |
| Remote Intelligent Perception Technology (RIPT) | Support | |
| Smart device recognition | Support | |
| Intelligent load balancing based on the number of users or traffic | Support | |
| STA control | SSID/radio-based | |
| Bandwidth control | STA/SSID/AP-based speed control | |
| Security | PSK and web authentication | Support |
| Data encryption | WPA (TKIP), WPA-PSK, WPA2 (AES), WEP (64 / 128-bit) | |
| WeChat authentication | Support | |
| QR code authentication | Support | |
| SMS authentication | Support | |
| PEAP authentication | Support | |
| Data frame filtering | Whitelist, static/dynamic blacklist | |
| User isolation | Support | |
| Rogue AP detection and countermeasure | Support | |
| Dynamic ACL assignment | Support | |
| RADIUS | Support | |
| CPU Protection Policy (CPP) | Support | |
| Network Foundation Protection Policy (NFPP) | Support | |
| Routing | IPv4 address | Static IP address or DHCP |
| IPv6 address | IPv6 terminal access authentication, ICMPv6 | |
| Management and Maintenance | Supported wireless LAN controllers | Ruijie WS Series Wireless Controller
Ruijie MACC-Base Software Controller Ruijie Cloud (Public Cloud) |
| Management protocol | Telnet, SSH, TFTP, Web | |
| Wireless Intelligent AI Optimization Service (WIS) | Support | |
| SNMP | SNMPV1,V2c,V3 | |
| Syslog / Debug | Support | |
| FAT/FIT/MACC mode switching | Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management | |
