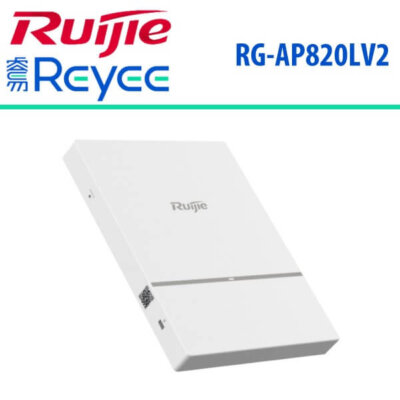

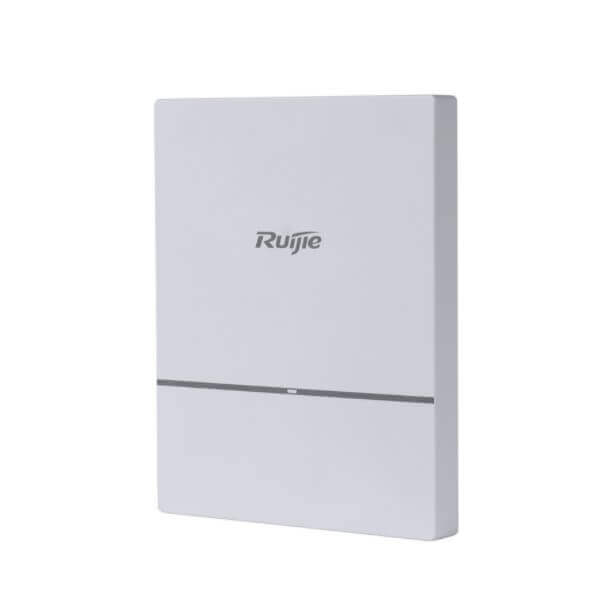

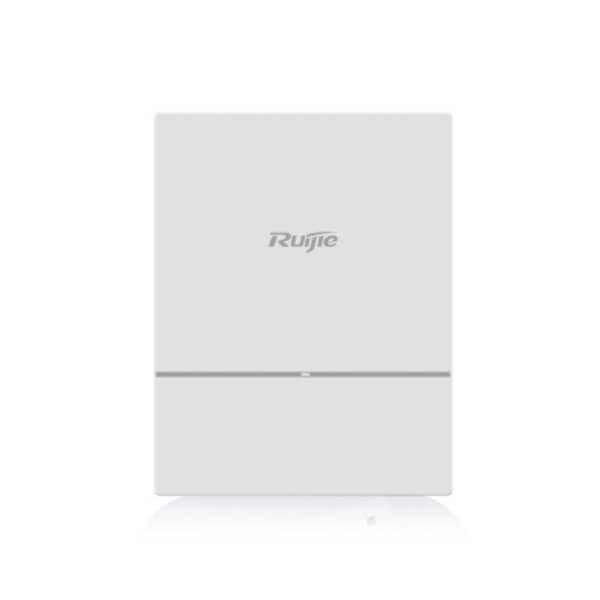

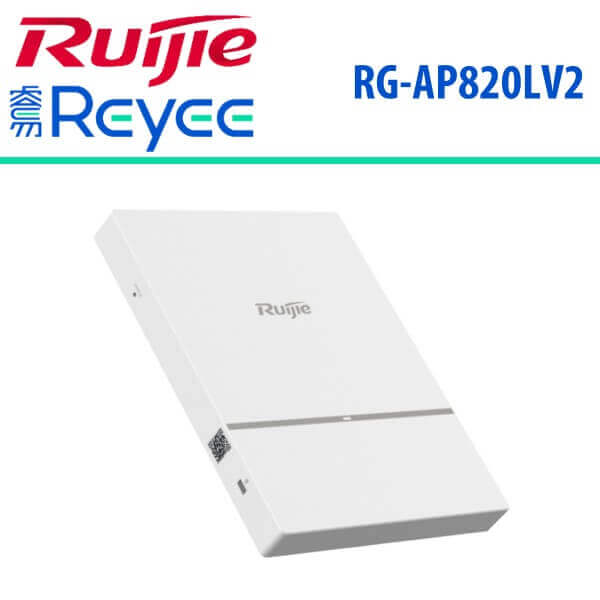

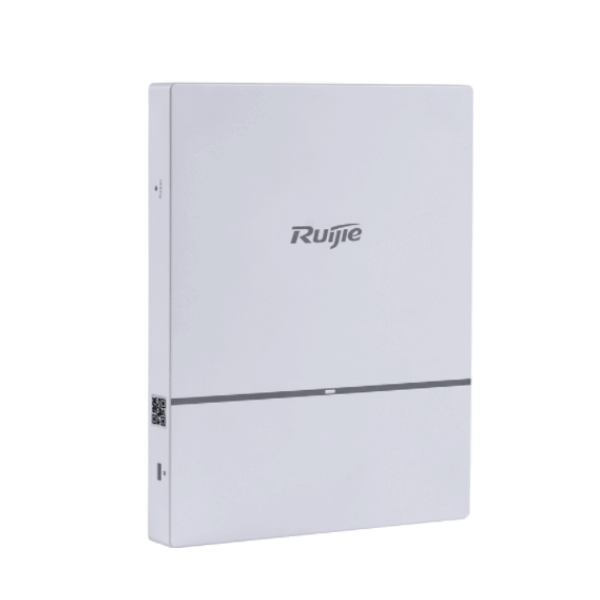

Ruijie RG-AP820LV2 Access Point Dubai
The Ruijie RG-AP820LV2 Accesspoint Dubai stands out as Ruijie’s top-performing entry-level Wi-Fi 6 indoor access point for enterprises. It has been certified by Tolly’s latest Test Report, confirming its capability to handle up to 1024 Wi-Fi clients and providing up to 65% higher total throughput in legacy Wi-Fi 5 environments. With its sleek design, the Ruijie RG-AP820LV2 Accesspoint Dubai features a slim form factor, measuring only 26mm in height, and incorporates a hidden LAN cabling design.
This access point offers selectable dual-band dual-radio modes (2.4G + 5G or 5G+5G) to ensure optimal compatibility and performance. In the high-performance mode with dual 5G radios, it delivers a maximum wireless throughput of 2.4Gbps. In the normal 2.4G+5G mode, it achieves up to 1.775Gbps throughput. The Ruijie RG-AP820LV2 Accesspoint Dubai fully complies with Wi-Fi 6 OFDMA Modulation, MU-MIMO, and BSS Color Spatial Reuse, ensuring minimal signal interference and supporting a maximum of 1024 client connections.
Additionally, the Ruijie RG-AP820LV2 Accesspoint Dubai is IoT-ready with an integrated BLE module, eliminating the need for external modules and additional investments. It provides nearly line-rate throughput at 955Mbps wireless performance through its built-in Gigabit uplink port, as verified by Tolly Test Report. Management efficiency and wireless security are simplified, as Ruijie enterprise APs support hybrid management mode. Whether deployed as standalone AP (Fat mode) or managed AP (Fit mode), the AP automatically detects the operation mode without requiring extra effort for firmware upgrades.

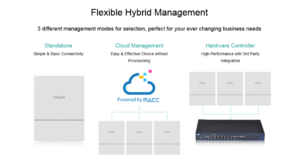

For enhanced services, users have the option to choose from the following :
- Public Cloud : Ruijie Cloud – Ruijie Public Cloud service (powered by RG-MACC) is designed for SMEs, offering an integrated captive portal, various authentication methods (PPSK for employees, Facebook, vouchers, accounts, etc.), and reporting features. SME customers can provision and manage their networks conveniently using the Ruijie Cloud Mobile App.
- Hybrid Cloud : RG-WS6000 Series Wireless Controller (on-premises) Plus Cloud Management (Optional) – This option is tailored for enterprise offices and campuses with single or multiple sites and high-density AP deployments. The controller appliances are installed at the customer’s site, supporting up to 5000 APs per cluster. Additionally, the cloud management platform offers centralized device configuration, monitoring, AI radio (RF) optimization, and reporting.
- Private Cloud : RG-MACC Software Controller – Designed for ISPs/MSPs, government entities, or multinational corporations (MNCs) with diverse customer sites and integration needs for billing, portals, and security systems. The RG-MACC supports unified device management, not only for wireless access points but also for switches and gateway devices.
Features
- Access point WiFi6 device, ceiling-mounted, wall –mounted
- Speed up to 1.775Gbps (Radio1：4G 0.574Gbps, Radio2：5G 1.2Gbps)
- Supports 2 bands 2.4GHz and 5GHz standard 802.11a/b/ g/n/ac/ax Wave1/Wave2, MU-MIMO
- Antenna 2.4G : 3dBi, 5G : 3dBi. Stream Up to 4 : 2×2 : 2 in 2.4GHz, 2×2 : 2 in 5GHz
- Supports up to 1024 users | Up to 32 SSIDs
- Recommended number of concurrent users 300+
- 1 10/100/1000M Uplink port (supports PoE power), 1 Console port
- Supports 802.3af power (15.4W)
- Support DC 48V/1A power source
- LEDs for signal & operation status (red, green, blue)
- Ruijie Cloud service support allows quick, simple configuration, easy management and monitoring
Specifications
| Model | RG-AP820-L(V2) |
| Hardware specifications | |
| Radio | Dual-radio dual-band ：
|
| Protocol | Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac |
| Operating Bands |
|
| Spatial Streams | Up to 4: 2×2:2 in 2.4GHz , 2×2:2 in 5GHz |
| Max Throughput | Maximum throughput (5G+5G mode) per AP : 2.4Gbps
2.4G+5G operation mode, maximum throughput per AP : 1.775Gbps
|
| Modulation |
|
| Receiver Sensitivity |
|
| Antenna | Integrated antenna design |
| Antenna Gain |
|
| Service Ports | 1 10/100/1000M Ethernet ports, PoE In |
| Management Port | 1 console port |
| Reset Button | Support |
| Anti-theft Lock | Support |
| LED Indicator | 1 LED indicator (Support red, green, blue, orange and flashing mode, which indicates device access) |
| Transmit Power | ≤100mw（20dBm） (vary depending on different countries) |
| Adjustable Power | 1dBm |
| Power Supply |
|
| Power Consumption | ＜12.95W |
| Physical Specifications | |
| Temperature |
|
| Humidity |
|
| Installation Mode | Ceiling/wall-mountable |
| Dimensions (W x D x H) | 153mm ×193mm x26mm（Height of the AP only, excluding the mount kit） |
| Weight | ≤0.5kg (include mount kit) |
| IP Rating | IP41 |
| MTBF | 250,000 hours |
| Certifications and Compliance | |
| Wi-Fi Alliance |
|
| Safety Standard | GB4943, EN/IEC 62368-1 |
| EMC Standard | GB9254, EN301 489 |
| Radio Standard | SRRC, EN300 328, EN301 893 |
| Software Specifications | ||
| WLAN | Maximum clients per AP | 1024 |
| BSSID capacity | Up to 32 | |
| SSID hiding | Support | |
| 5G Priority (Band Steering) | Support | |
| Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID | Support | |
| Remote Intelligent Perception Technology (RIPT) | Support | |
| Intelligent device recognition technology | Support | |
| Intelligent load balancing based on the number of users or traffic | Support | |
| STA control | SSID/radio-based | |
| Bandwidth control | STA/SSID/AP-based bandwidth control | |
| Data encryption | WPA（TKIP）, WPA-PSK, WPA2（AES）, WPA3, WEP（64/128 bits） | |
| PSK and web authentication | Support | |
| PPSK authentication (For Employee) | Support (require wireless controller) | |
| 802.1x authentication | Support | |
| PEAP authentication | Support | |
| Data frame filtering | Whitelist, static/dynamic blacklist | |
| User isolation | Support | |
| Rogue AP detection and countermeasure | Support | |
| Dynamic ACL assignment | Support | |
| RADIUS | Support | |
| CPU Protection Policy (CPP) | Support | |
| Network Foundation Protection Policy (NFPP) | Support | |
| IP | IPv4 and IPv6 address | Support |
| Multicast routing | Multicast to unicast conversion | |
| DHCP service | DHCP Snooping, Option 82, Server, Client | |
| Management and Maintenance | Supported wireless LAN controllers |
|
| Management protocol | Telnet, SSH, TFTP, Web | |
| Wireless Intelligent AI Optimization Service (WIS) | Support | |
| SNMP | SNMPV1,V2c,V3 | |
| LLDP | LLDP, LLDP-MED, LLDP-POE | |
| Syslog / Debug | Support | |
| FAT/FIT/MACC mode switching | Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management | |
