Ruijie RG-E120GE Dubai

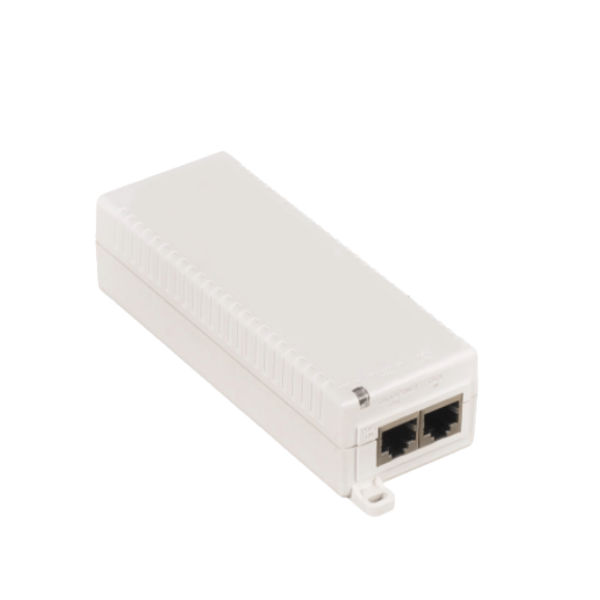

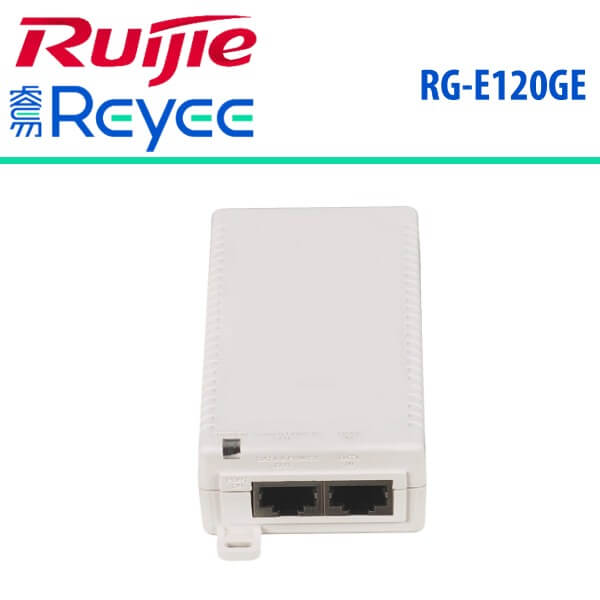

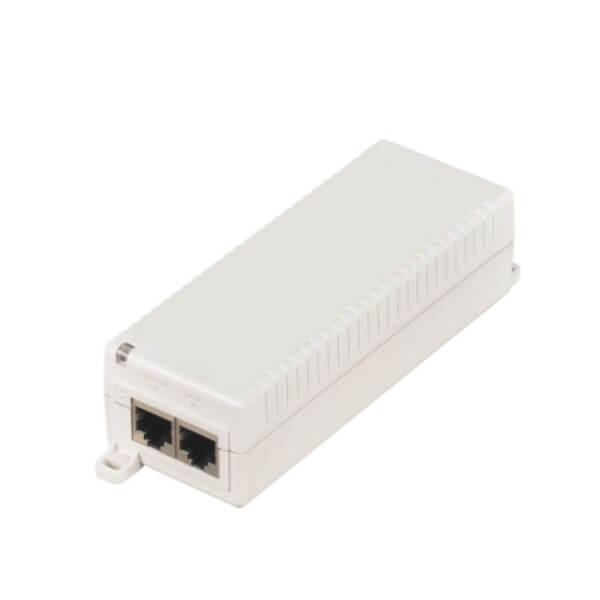

The Ruijie RG-E120GE Dubai Power Injector is in compliance with the IEEE 802.3at standard for Power over Ethernet (PoE). It is capable of supplying power to remote management devices such as wireless access points, SOHO switches, IP phones, webcams, and more.

Description

Ruijie RG-E120GE Power Injector Dubai

The Ruijie RG-E120GE Dubai Power Injector is in compliance with the IEEE 802.3at standard for Power over Ethernet (PoE). It is capable of supplying power to remote management devices such as wireless access points, SOHO switches, IP phones, webcams, and more. The Power Injector’s RJ45 ports support automatic cable recognition, and it can transmit power through the cable for up to 100m, allowing for flexible deployment of powered devices. The Ruijie RG-E120GE Dubai Power Injector offers excellent short circuit protection and features intelligent automated PD recognition. This ensures that the Power Injector detects whether the connected device is a PD, eliminating any potential harm that a non-PoE device may face from a PSE appliance. With its modern and elegant design, the Ruijie RG-E120GE Dubai Power Injector provides significant cost savings and is well-suited for a variety of network settings such as large-scale campuses, enterprise environments, public hotspots, sports stadiums, and more. Its sleek design and impressive features make it an ideal choice for hotels, shops, and small to medium offices.

Features

  • Up to 15.4W of Power
  • Compatible with all IEEE 802.3af standards
  • Safe: Low Power Devices Receive Only the Power They Need
  • Safe and Reliable Power to WLAN Access Points
  • Automatic Detection and Protection of Non–standard Ethernet Terminals
  • Supports 10/100/1000Base-T Applications
  • Compact Design Fits Easily in WLAN Access Point Installations

 Specifications

Model RG-E-120(GE)
Ports

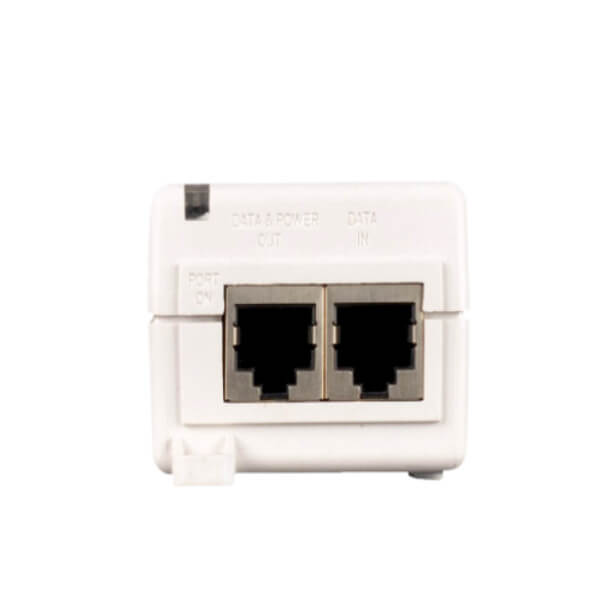

  • 10/100/1000 Mbps Copper port (RJ-45)
  • 10/100/1000 Mbps PoE Copper port (RJ-45)
Power
  • Output Power Voltage : 50V DC
  • Output Port Power : 15.4W
Dimensions
(W x H x L) (mm)
53 x 32.5 x 140
Weight 200g
Temperature
  • Operating Temperature : 0°C to 45°C
  • Storage Temperature : -30°C to 85°C
Humidity
  • Operating Humidity : 5% to 90% (non-condensing)
  • Storage Humidity : 5% to 95% (non-condensing)
Altitude Operating Altitude : 0 to 3048m
Regulatory Compliance IEEE 802.3afRoHS Compliant, WEEE Compliant, CE
MTBF >100,000 hours @25°C
Electromagnetic Emission & Immunity Safety Approval FCC Part 15, EN 55022 Class B (Emissions) EN 55024 (Immunity), VCCI, UL/cUL Per EN 60950-1, GS Mark Per EN 60950-1
