Description

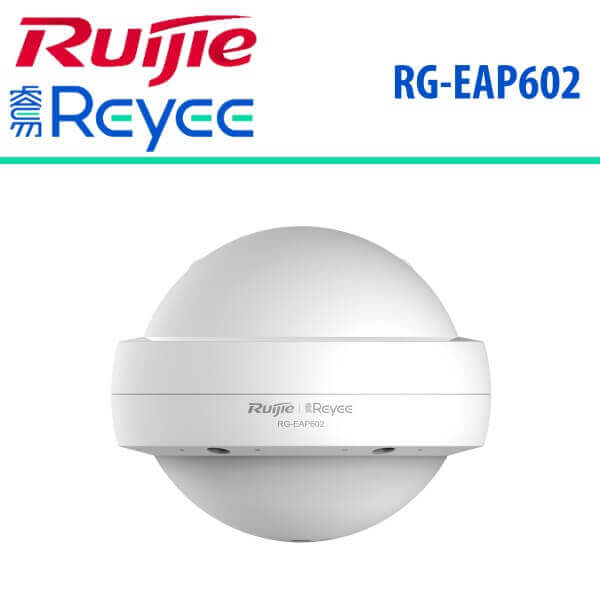

Ruijie Reyee RG-EAP602 Access Point Dubai
The Ruijie RG-EAP602 Accesspoint Dubai is a high-performance outdoor dual-band 802.11b/g/n/ac wireless access point (WAP) designed for large public spaces such as villages, villas, parks, scenic spots, and plazas. It supports concurrent 2.4GHz and 5GHz bands with dual-band dual-stream MIMO technology, providing maximum speeds of 300Mbps and 867Mbps, respectively, for a total aggregate throughput of up to 1167Mbps. The WAP also features built-in high-gain omnidirectional antennas for wide coverage.
The Ruijie RG-EAP602 Accesspoint Dubai supports Self-Organizing Network (SON) features, enabling auto-discovery, auto-networking, and auto-configuration of devices without the need for controllers or Internet access. This simplifies deployment and management of large-scale networks.
The WAP can also be managed remotely using the Ruijie Cloud platform or a mobile app, providing convenient network monitoring and troubleshooting capabilities.
Overall, the Ruijie RG-EAP602 Accesspoint Dubai is a powerful and versatile outdoor WAP that is ideal for a variety of demanding applications.
Features
- 11ac Wave2 technology
- 300m coverage radius
- Auto-provisioning via Self-Organizing Network: Supports Ruijie’s self-developed smart networking feature, which breaks through the product limitations and realizes auto-discovery, auto-networking and auto-configuration between routers, switches, and wireless APs without the need for controllers or Internet access;
- Lifetime free Ruijie Cloud management: Remote fault alarm, one-click optimizing and maintenance on Ruijie Cloud App;
- Stable wireless service under harsh environment： Surge Protection 6KV | IP Rating IP68 Operating temperature: -30°C～65°C
- Industrial Design

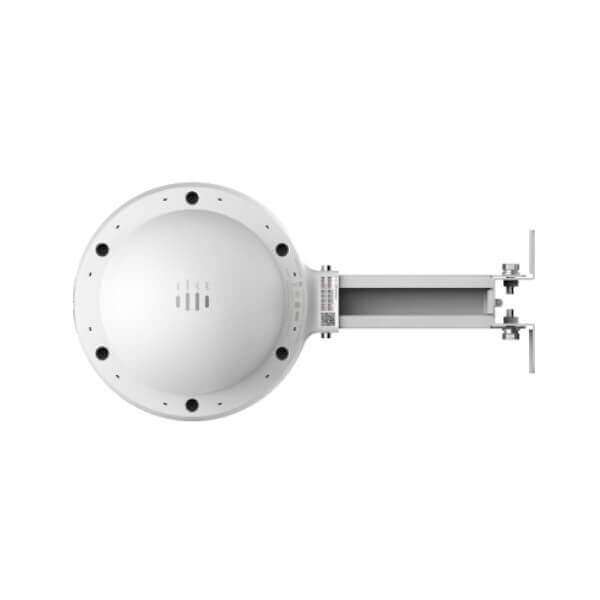

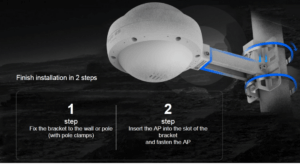

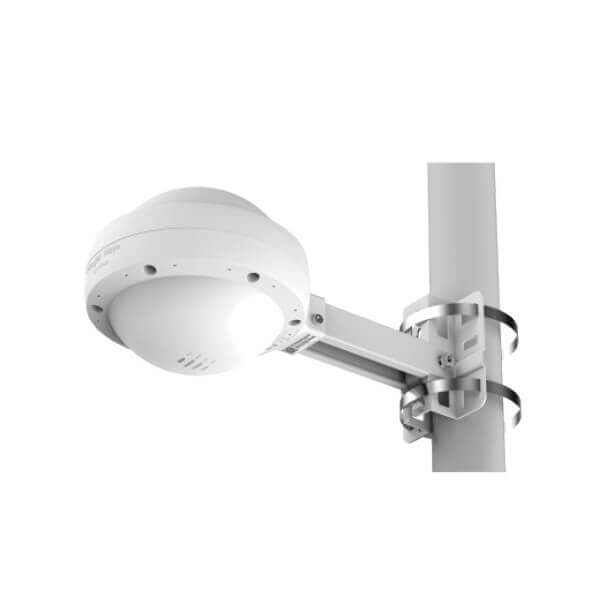

Separate mounting bracket installation
With the separate mounting bracket installation, Ruijie RG-EAP602 Accesspoint Dubai installation can be completed quickly in two steps, reducing the difficulty of working at heights.

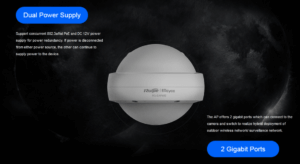

Dual power supply
Ruijie RG-EAP602 Accesspoint Dubai supports 802.3af/at PoE and DC12V local power supply. The two power supply modes can be connected concurrently to offer power redundancy, avoiding power failure caused by lightning damage to the power supply and greatly improving outdoor operation reliability.
Dual Ethernet ports
This Access Point Dubai is ideal choice for the hybrid deployment of outdoor wireless coverage and outdoor surveillance. The 2 gigabit Ethernet ports can directly connect to cameras or cascade switches, which greatly enriches the outdoor networking solutions and application scenarios.
Smart networking
The Ruijie RG-EAP602 Accesspoint Dubai supports 3 networking modes including router management, Ruijie Cloud platform management and smart network management. It can work with Reyee routers, smart PoE switches and APs for unified discovery, networking, configuration and management. It can also operate under routers of any brand without hardware controller, thereby reducing the cost of network construction or transformation.
High-performance wireless access
The RG-EAP602 Access Point supports 802.11n@2.4GHz and 802.11ac@5GHz, offering access rate of 300Mbps at 2.4Ghz, 867Mbps at 5GHz and up to 1167Mbps per AP. The superior wireless performance greatly optimizes the wireless users’ network experience. The 164 maximum concurrent clients and up to 300m coverage radius also significantly improve the deployment result of outdoor wireless scenarios.
Excellent environmental adaptability
The Ruijie RG-EAP602 Accesspoint Dubai offers an IP68-rated enclosure that fulfills waterproof, dustproof, damp-proof and flame-retardant requirements to withstand harsh environments such as wind erosion, rain and high humidity. The features greatly lengthen the equipment life span and effectively reduce the maintenance cost. The industrial-grade components and enclosure can withstand a wide temperature range from -30°C to 65°C without any influence on the stability and life span, which is very suitable for the harsh outdoor environments including the cold weather and humid weather.
AI network optimization
Intelligent network management and optimization can be achieved through artificial intelligence, other network smart features include:
- Automatically recognize and add the new equipment to the network
- Automatically avoid WAN address conflict
- Smart network topology displays and diagnosis
- Network optimization and radio frequency adjustment
Specifications
| Hardware specifications | |
| Model | RG-EAP602 |
| Radio | 2.4GHz & 5GHz dual-band dual-stream |
| Protocol |
|
| Spatial Streams |
|
| Max Throughput |
|
| Transmit Power | ≤500mw（27dBm，RF transmit power only） |
| Dimensions | 200mm*220mm*166mm (excluding mounting kits) |
| Weight | 1kg (excluding mounting kits) |
| Service Ports |
|
| Reset | 1 DC 12V power socket |
| LED Indicators |
|
| Power Supply |
|
| Built-in Antennas | Built-in omnidirectional antennas (basic gain 3dBi) |
| Power Consumption | ＜12.95W |
| Coverage Radius | Open and unobstructed direction : 2.4G 100m，5G 300m
(the actual coverage distance may vary according to different obstruction situations and different performances of wireless terminals） |
| Surge Protection | 6000V |
| IP Rating | Above IP68 |
| MTBF | >250000H |
| Environment |
|
| Security |
|
| Software Features | |
| WLAN |
|
| Routing | Support static IP address and DHCP |
| Management and maintenance |
|
| Platform management features |
|
