Description

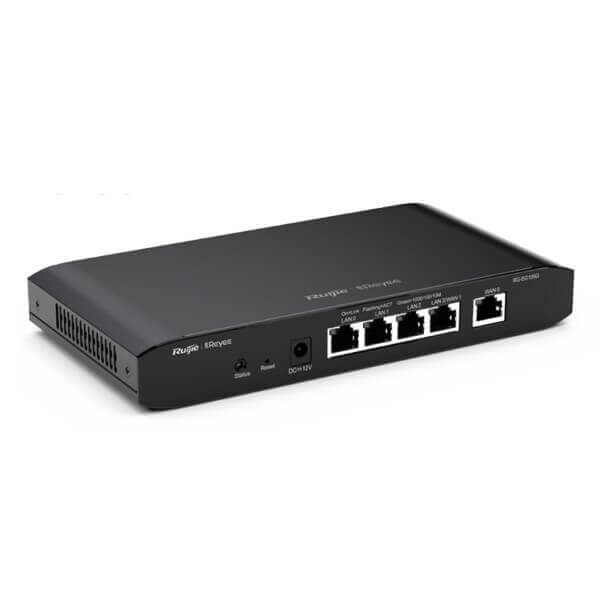

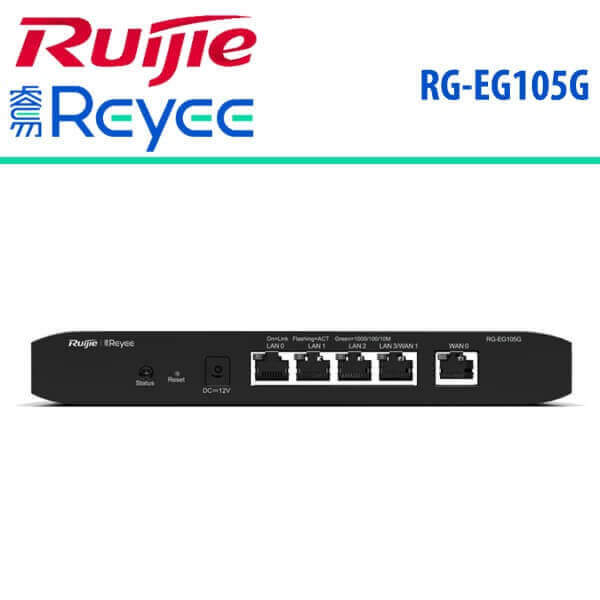

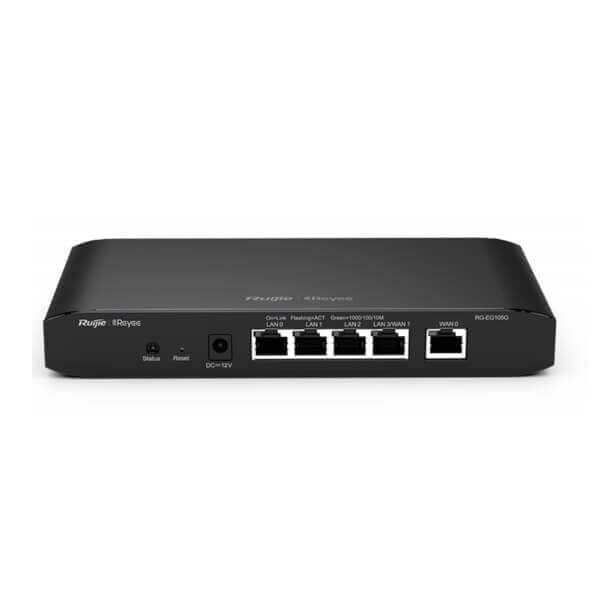

Ruijie Reyee RG-EG105G Router Dubai

The Ruijie RG-EG105G Router Dubai is a cloud-managed router that is affordable, small, and easy to use. It is designed for villas, smart homes, restaurants, small offices, and homestay hotels. It has a bandwidth of 500Mbps to 1Gbps and can support up to 200 terminals.The RG-EG105G can perform per-port VLAN configuration to isolate ports and integrate with smart flow control to achieve comprehensive network planning and perform local and remote network diagnosis.

The Ruijie RG-EG105G Router Dubai features an industry-leading auto-discovery and auto-networking innovation for gateways, switches, and wireless networks. This allows for unified configuration, remote management, and remote fault diagnosis of the entire network via the Ruijie Cloud app.

When working in AC mode, the Ruijie RG-EG105G Router Dubai can centrally manage up to 300 Reyee APs and up to 128 Reyee cloud-managed switches. The RG-EG210G-P and RG-EG210G-E can manage up to 500 Reyee APs and up to 128 Reyee cloud-managed switches.

Features

Auto-provisioning via self-organizing network
Lifetime free Ruijie Cloud managed
Multiple WAN Ports
Full Gigabit port
AC mode: Manage Reyee APs, saving cost
Smart flow control: Intelligently adjusted each user bandwidth according to the access bandwidth
IPSec VPN
Enterprise Security features
Curved surface metal design, sheet metal stretching integrated molding
Port Isolation for security CCTV network
Multiple WAN Policies
Single-cable IPTV
Copying the Dial-up Password
Auto-provision via Self-organizing Network (SON) in 3 Minutes Using the App
Network Management
Wi-Fi Control
Multiple Management Methods
Network Planning
Network Diagnosis

Specifications

Model	RG-EG105G	RG-EG105G-P	RG-EG210G-P
Basic specifications
Fixed ports	5 10/100/1000M Base-T ports，supporting up to 2 WAN ports（Default : 1 WAN port，4 LAN ports LAN3 can be switched to WAN1 port）	5 10/100/1000M Base-T ports，supporting up to 2 WAN ports（Default : 1 WAN port，4 LAN ports LAN3 can be switched to WAN1 port）	10 10/100/1000M Base-T ports，supporting up to 4 WAN ports（Default : 1 WAN port and 9 LAN ports LAN8, LAN7 and LAN6 can be switched to WAN ports）
RAM	128MB	128MB	256MB
Flash	16MB	16MB	16MB
Maximum number of clients	Up to 100 concurrent clients	Up to 100 concurrent clients	Up to 200 concurrent clients
Recommended bandwidth	600M asymmetric bandwidth (flow control disabled) 500M asymmetric bandwidth (flow control enabled)	500M asymmetric bandwidth (flow control disabled) 300M asymmetric bandwidth (flow control enabled)	600M asymmetric bandwidth (flow control disabled) 500M asymmetric bandwidth (flow control enabled)
Local power supply	Support 220V AC local power supply
Power consumption	<6W	<60W (With PoE load)	<80W
Basic network features
Network access	PPPoE dial-up, DHCP client, static IP, automatic identification of access methods, automatic avoidance of WAN port address conflicts, MAC cloning, obtaining account passwords from existing routers
Routing	Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams
Security	ACL, IP-MAC binding, MAC address filtering, dynamic ARP, static ARP binding, NAT, NAPT, port mapping
Other protocols	DHCP Server, DHCP Client, DHCP Option43 / 138, DNS Client, DNS Server, DNS Proxy, TFTP, NTP, DDNS
Gateway
Application recognition	Built-in self-developed application signature database to identify applications Support free upgrades
Flow control	Support custom flow control policies, IP-based automatic bandwidth assignment
Traffic audit	Real-time traffic audit, IP traffic visualization
Behavior management	Time-based and IP policy-based access control, website filtering
VPN	IPsec VPN (8 tunnels) server and client, L2TP, PPTP
Authentication	Marketing authentication : WiFiDog (SMS authentication and one-click authentication) Local authentication : password authentication, QR code authentication, voucher authentication
Wireless management
Management capacity	In AC mode, the maximum management capacity is 300 In gateway mode, the maximum management capacity is 32	In AC mode, the maximum management capacity is 300 In gateway mode, the maximum management capacity is 32	In AC mode, the maximum management capacity is 500 In gateway mode, the maximum management capacity is 150
AP management	Support multi-SSID configuration, SSID hiding, channel setting, power setting, AP wired port setting, AP online upgrade, STA quantity setting, STA blacklist and whitelist
Roaming	Support local forwarding roaming, Layer 2 roaming, Layer 3 roaming between APs, viewing of STA roaming track
Switch management
Management capacity	Maximum manageable cloud managed switches: 128
Port management	Loop protection, port mirroring, port isolation, port configuration, PoE configuration, port limit, storm control, static MAC, MAC search
Status display	Port statistics, monitoring information, cable detection, VLAN configuration, MAC list
Upgrademanagement	Per-device upgrade, batch upgrade
Value added features
Featured solutions	Single-cable IPTV solution, port service VLAN and network segment isolation solution, smart fault diagnosis solution, intranet penetration solution, auto-networking solution
Management	Eweb and Ruijie Cloud
Physical specifications
Dimensions	206.5×108.5×28 (mm)	206.5×108.5×28 (mm)	202×107×28 (mm)
Weight	0.84kg	0.84kg	1.5kg
Temperature	Operating temperature : 0 ~ 40 ℃ Storage temperature : -10 ℃ ~ 70 ℃	Operating temperature : 0℃ ~ 40 ℃ Storage temperature : -10 ℃ ~ 70 ℃	Operating temperature: 0℃ ~ 40 ℃ Storage temperature: -10 ℃ ~ 70 ℃
Humidity	Operating humidity : 10% ~ 90% (non-condensing) Storage humidity : 5% ~ 95% (non-condensing)	Operating humidity: 10% ~ 90% (non-condensing) Storage humidity: 5% ~ 95% (non-condensing)	Operating humidity: 10% ~ 90% (non-condensing) Storage humidity: 5% ~ 95% (non-condensing)
