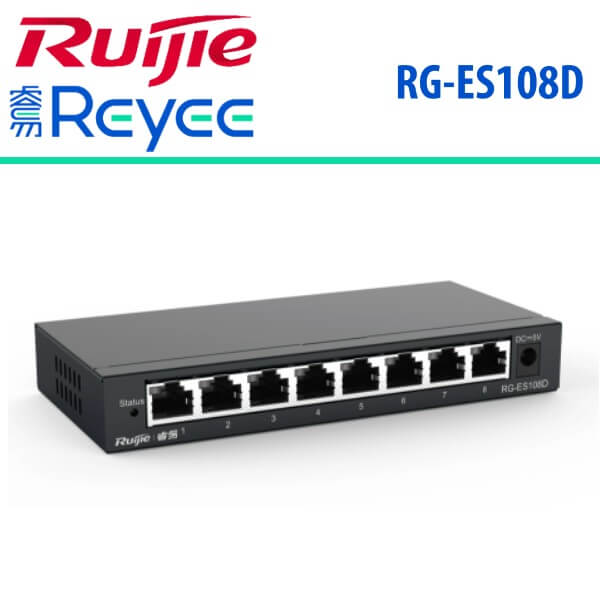

Ruijie RG-ES108D Network Switch Dubai
The Ruijie RG-ES108D Networkswitch Dubai is a budget-friendly unmanaged access switch encased in metal, specifically designed for small and medium enterprises (SMEs). This device supports plug-and-play functionality without the need for any configuration, making it ideal for various scenarios such as wired, wireless, and surveillance networks.
Targeted at small and medium businesses seeking a hassle-free solution, the Ruijie RG-ES100 series is a part of Ruijie’s SME network products. This series comprises three switches, including an 8-port Gigabit PoE+ model and two 24-port Gigabit PoE+ switch models. These switches can be deployed instantly without any complex setup. Moreover, users can easily control flow and isolate ports in Ruijie RG-ES108D Networkswitch Dubai by simply adjusting the panel knob. Additionally, the PoE budget status is conveniently displayed on the port indicators, aiding in efficient troubleshooting.
Features
Plug and Play
The Ruijie RG-ES108D Networkswitch Dubai supports self-adaptive ports and plug-and-play feature with zero configuration.
Metal Casing

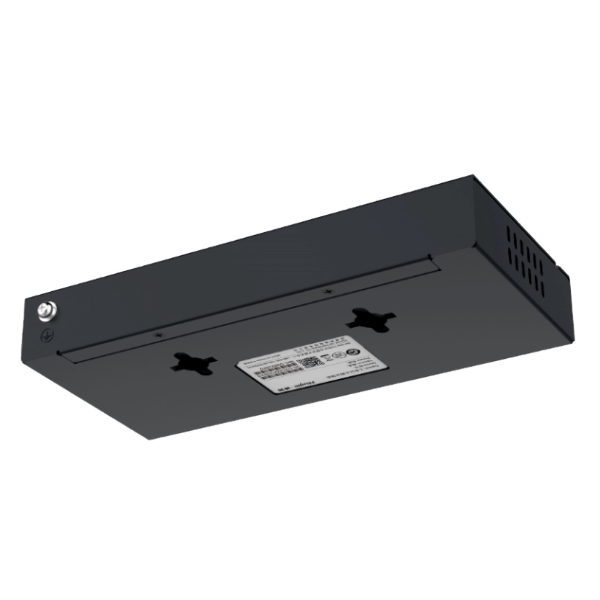

The entire casing of Ruijie RG-ES108D Networkswitch Dubai is made of metal which provides better heat dissipation.
Easy to Install
The compact size allows easy installation in the ELV box at home or the waterproof surveillance junction box, as it only takes up little space.
Enterprise-grade Quality
The Ruijie RG-ES108D Networkswitch Dubai is equipped with high-quality 8-core network cable and enterprise-grade components ensure no packet loss or lagging for data transmission.
Specifications
| Model | ES105D | ES108D | ES105GD | ES108GD |
| Ports | 5 10/100Mbps RJ45 ports | 8 10/100Mbps RJ45 ports | 5 10/100/1000Mbps RJ45 ports | 8 10/100/1000Mbps RJ45 ports |
| Maximum port forwarding rate | 100Mbps | 100Mbps | 1000Mbps | 1000Mbps |
| Auto-MDI/MDIX | Support | Support | Support | Support |
| MAC address | 1K | 2K | 2K | 8K |
| Backplane bandwidth | 1Gbps | 1.6Gbps | 10Gbps | 16Gbps |
| Maximum packet forwarding rate | 744Kpps | 1.19Mpps | 7.44Mpps | 11.9Mpps |
| LED indicator | Link/Act status LED indicator for each port,
Power indicator |
Link/Act status LED indicator for each port,
Power indicator |
Link/Act status LED indicator for each port,
Power indicator |
Link/Act status LED indicator for each port,
Power indicator |
| Dimensions | 119mm*62mm*24mm | 160mm*75mm*24mm | 119mm*62mm*24mm | 160mm*75mm*24mm |
| Power input / output | External 5VDC 1.0A | External 5VDC 1.0A | External 5VDC 1.0A | External 5VDC 1.0A |
| Maximum power consumption | ≤5W | ≤5W | ≤5W | ≤5W |
| Temperature |
|
|
|
Operating temperature : 0 ℃ ~ 40 ℃
Storage temperature : -40 ℃ ~ 70 ℃ |
| Humidity |
|
|
|
Operating humidity : 10% ~ 90% non-condensing
Storage humidity : 5% ~ 90% non-condensing
|
