Ruijie RG-ES108GD Dubai

Rating

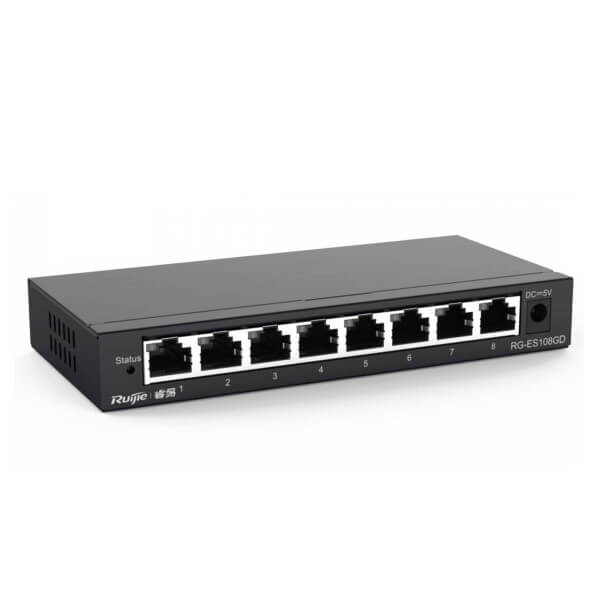

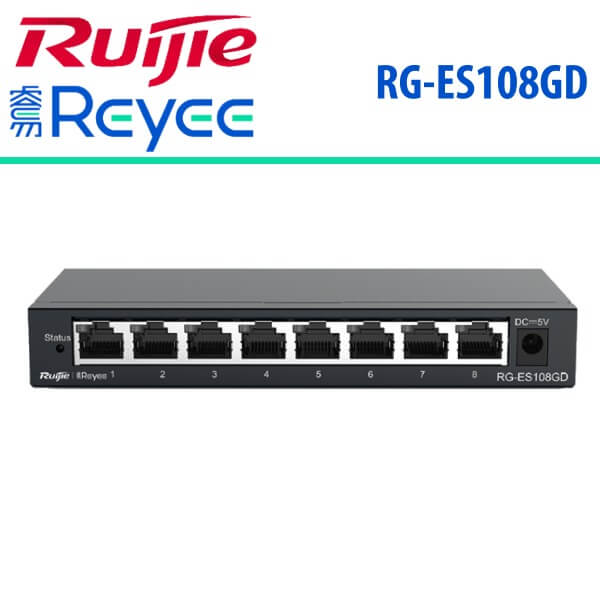

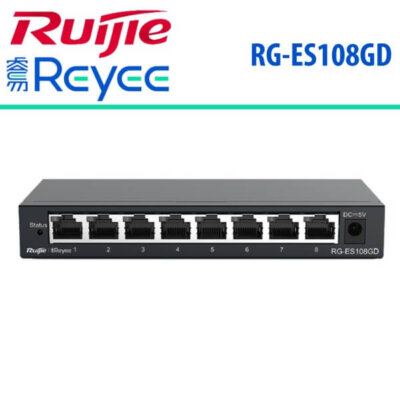

Ruijie RG-ES108GD Networkswitch Dubai

The Ruijie RG-ES108GD Networkswitch Dubai is an affordable unmanaged access switch enclosed in a metal casing, specifically created for small and medium-sized enterprises (SMEs).

Description

Ruijie RG-ES108GD Network Switch Dubai

The Ruijie RG-ES108GD Networkswitch Dubai is an affordable unmanaged access switch enclosed in a metal casing, specifically created for small and medium-sized enterprises (SMEs). Part of the RG-ES100 Series, this Ruijie RG-ES108GD Networkswitch Dubai  switch enables plug-and-play functionality without the need for any configuration. It caters to diverse scenarios including wired, wireless, and surveillance networks.

Key Features

  • Plug and Play
    • Ruijie RG-ES108GD Networkswitch Dubai supports self-adaptive ports and plug-and-play feature with zero configuration.
  • Metal Casing
    • The entire casing is made of metal which provides better heat dissipation.
  • Easy to Install
    • The compact size allows easy installation in the ELV box at home or the waterproof surveillance junction box, as it only takes up little space.
  • Enterprise-grade Quality
    • The high-quality 8-core network cable and enterprise-grade components ensure no packet loss or lagging for data transmission.

Technical Specifications

Model ES105D ES108D ES105GD ES108GD
Ports 5 10/100Mbps RJ45 ports 8 10/100Mbps RJ45 ports 5 10/100/1000Mbps RJ45 ports 8 10/100/1000Mbps RJ45 ports
Maximum port forwarding rate 100Mbps 100Mbps 1000Mbps 1000Mbps
AutoMDI/MDIX Support Support Support Support
MAC address 1K 2K 2K 8K
Backplane bandwidth 1Gbps 1.6Gbps 10Gbps 16Gbps
Maximum packet forwarding rate 744Kpps 1.19Mpps 7.44Mpps 11.9Mpps
LED indicator Link/Act status LED indicator for each port,

Power indicator

Link/Act status LED indicator for each port,

Power indicator

Link/Act status LED indicator for each port,

Power indicator

Link/Act status LED indicator for each port,

Power indicator

Dimensions 119mm*62mm*24mm 160mm*75mm*24mm 119mm*62mm*24mm 160mm*75mm*24mm
Power input / output External 5VDC 1.0A External 5VDC 1.0A External 5VDC 1.0A External 5VDC 1.0A
Maximum power consumption ≤5W ≤5W ≤5W ≤5W
Temperature
  • Operating temperature : 0 ℃ ~ 40 ℃
  • Storage temperature: -40 ℃ ~ 70 ℃
  • Operating temperature : 0 ℃ ~ 40 ℃
  • Storage temperature: -40 ℃ ~ 70 ℃
  • Operating temperature : 0 ℃ ~ 40 ℃
  • Storage temperature: -40 ℃ ~ 70 ℃
  • Operating temperature : 0 ℃ ~ 40 ℃
  • Storage temperature: -40 ℃ ~ 70 ℃
Humidity
  • Operating humidity : 10% ~ 90% non-condensing
  • Storage humidity : :5% ~ 90% non-condensing
  • Operating humidity : 10% ~ 90% non-condensing
  • Storage humidity : 5% ~ 90% non-condensing
  • Operating humidity : 10% ~ 90% non-condensing
  • Storage humidity : 5% ~ 90% non-condensing
  • Operating humidity : 10% ~ 90% non-condensing
  • Storage humidity : 5% ~ 90% non-condensing
