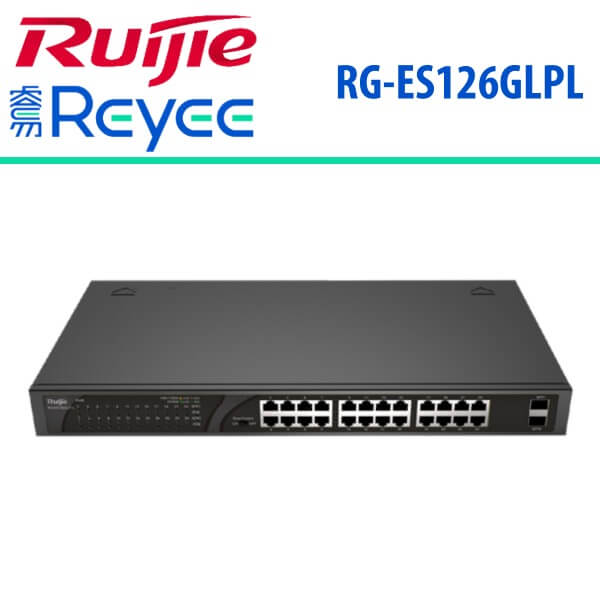

Ruijie RG-ES126GLPL Unmanaged Network Switch Dubai
The Ruijie RG-ES126GLPL Networkswitch Dubai represents the latest generation of unmanaged switches tailored for applications like CCTV, ELV, and small office setups. Specifically crafted for small and medium businesses seeking a hassle-free solution, the Ruijie RG-ES126GLPL Networkswitch Dubai is part of the Ruijie RG-ES100 series, designed as a Plug-n-Play option. This series encompasses three switches, including an 8-port Gigabit PoE+ model and two 24-port Gigabit PoE+ switch models. These switches are incredibly user-friendly, enabling seamless implementation straight out of the box. Moreover, users can easily control flow and isolate ports with a simple adjustment of the panel knob. Additionally, the switch indicators in the Ruijie RG-ES126GLPL Networkswitch Dubai provide direct information on the PoE budget status, greatly aiding in troubleshooting efforts.
Features
- 24-port and 8-port Gigabit PoE for CCTV/ELV and other SMB scenarios
- Simple one-click button management beyond Plug-n-Play
- Budget options 370W and 180W PoE on 24-port models
- All ports 8/24 support PoE/PoE+, feel free to choose any port
Easy connection
Ruijie RG-ES126GLPL Networkswitch Dubai boasts of a Full Gigabit Ethernet Selection including; 10 / 100 / 1000Mbps on any port, line rate forwarding. Also, Auto MDI/MDIX ensures all RJ45 ports support automatic MDI/MDIX, no cable restrictions when linking to clients or other switches.
Power over Ethernet (PoE / PoE+)
Ruijie RG-ES126GLPL NetworkSwitch Dubai provides up to 30Watt per port, enabling support for the latest IEEE802.3at (PoE+) capable devices such as high performance access points and IP cameras, as well as any IEEE802.3af (PoE) – compatible powered devices. Power on all ports including; Ports 1~8 of RG-ES126GLPL are all PoE/PoE+ capable. Also, PoE budget selection allow for wide choice of PoE power budgets from 185W to 370W on 24-port models.
Easy Control
The One-click flow control. With a flip button on the control panel, Ruijie RG-ES126GLPL NetworkSwitch Dubai flow control (IEEE802.3X) can be easily enabled to smooth traffic and avoid packet drops due to sudden traffic spikes. Also, one-click port isolation capability, With the switch on the board, users can also set up an isolating port between each port, helping to ensure the safety of CCTV cameras. Moreover, PoE Power Indicator provide status for alerts on the LED indicators of each port
Specifications
| Model | RG-ES126G-LP-L |
| Ports | · 2 x 1000M SFP
· 24 x PoE/PoE+ 10/100/1000BASE-T |
| Auto MDI/MDI-X | Support |
| PoE power budget | 180W |
| Power supply type | Internal |
| Input voltage | AC 100~240V, 50/60Hz |
| Cooling | Fan |
| Switching capacity | 52Gbps |
| Forwarding rate | 39Mpps |
| Flow control (IEEE802.3X) | Yes |
| PoE budget indicators | Yes |
| Dimensions (WxDxH) | 440 x 205 x 43.6 mm |
| Weight | 4.2kg |
| Surge protection | 4KV |
| Operating temperature | 0°C ~ 40°C |
| Storage temperature | -40°C ~ 70°C |
| Operating humidity | 5%~90% RH |
| Storage humidity | 5%~95% RH |
