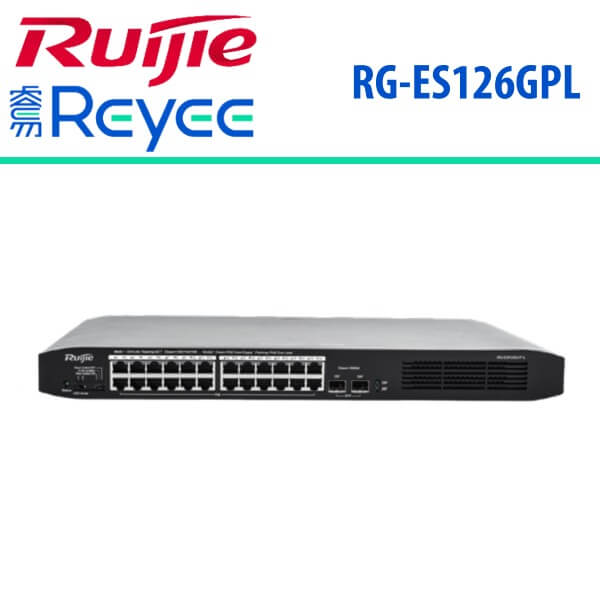

Ruijie RG-ES126GPL Network Switch Dubai
The Ruijie RG-ES126GPL Networkswitch Dubai is an advanced unmanaged switch that offers a range of PoE power options, ranging from 185W to 370W on models with 24 ports. It is specifically designed for use in scenarios such as CCTV, ELV, and small offices. The Ruijie RG-ES126GPL Networkswitch Dubai is an ideal solution for small and medium businesses seeking a quick and easy setup. It is part of the Ruijie SME network product line, which includes the RG-ES100 series. This series consists of three switches, including an 8-port Gigabit PoE+ model and two 24-port Gigabit PoE+ switch models. These Ruijie RG-ES126GPL Networkswitch Dubai can be effortlessly implemented right out of the box, with the added benefit of being able to perform flow control and port isolation functions by simply adjusting the panel knob. Additionally, the PoE budget status can be easily viewed on the port indicators, greatly assisting in troubleshooting efforts.
Features
- 24-port Gigabit PoE CCTV / ELV and other SMB scenarios
- Simple one-click button management beyond Plug-n-Play
- Budget options 370W and 180W PoE on 24-port models
- All 8/24 ports are compatible with PoE / PoE +, feel free to choose any port
Powerful &Simple Installation
Ruijie RG-ES126GPL Networkswitch Dubai boasts of a Full Gigabit Ethernet Selection including; 10 / 100 / 1000Mbps on any port, line rate forwarding. Also, Auto MDI/MDIX ensures all RJ45 ports support automatic MDI/MDIX, no cable restrictions when linking to clients or other switches.
Power over Ethernet (PoE / PoE+)
Ruijie RG-ES126GPL Networkswitch Dubai provides up to 30Watt per port, enabling support for the latest IEEE802.3at (PoE+) capable devices such as high performance access points and IP cameras, as well as any IEEE802.3af (PoE) – compatible powered devices. Power on all ports including; Ports 1~8 of RG-ES126GLPL are all PoE/PoE+ capable. Also, PoE budget selection allow for wide choice of PoE power budgets from 185W to 370W on 24-port models.
Simple Management
The One-click flow control. With a flip button on the control panel, Ruijie RG-ES126GPL Networkswitch Dubai flow control (IEEE802.3X) can be easily enabled to smooth traffic and avoid packet drops due to sudden traffic spikes. Also, one-click port isolation capability, With the switch on the board, users can also set up an isolating port between each port, helping to ensure the safety of CCTV cameras. Moreover, PoE Power Indicator provide status for alerts on the LED indicators of each port
Specifications
| Model | RG-ES126GPL |
| Ports |
|
| Auto MDI/MDI-X | support |
| PoE power budget | 370W |
| Power supply type | Internal |
| Input voltage | AC 100~240V, 50/60Hz |
| Cooling | Fan |
| Switching capacity | 52Gbps |
| Forwarding rate | 39Mpps |
| Flow control (IEEE802.3X) | Yes |
| Port isolation | Yes |
| PoE budget indicators | Yes |
| Dimensions (WxDxH) | 440 x 292 x 43.6 mm |
| Weight | 4.2kg |
| Surge protection | 4KV |
| Operating temperature | 0 ° C ~ 40 ° C |
| Storage temperature | -40 ° C ~ 70 ° C |
| Operating humidity | 5%~90% RH |
| Storage humidity | 5%~95% RH |
