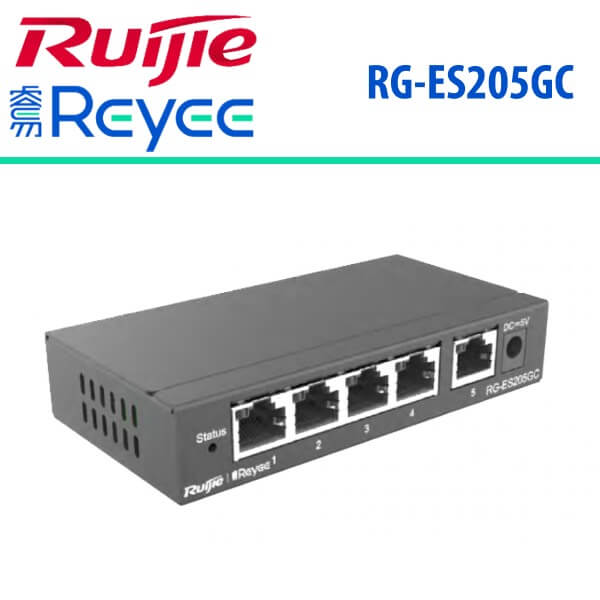

Ruijie RG-ES205GC Network Switch Dubai
The Ruijie RG-ES205GC Networkswitch Dubai offers user-friendly management features and seamless integration with default factory settings. This allows for quick identification of surveillance network issues, port restarts, VLAN configuration, and more. It also supports IP Camera Recognition, providing unique value for CCTV networks. The Ruijie RG-ES205GC Networkswitch Dubai is a non-PoE switch with gigabit ports, providing flexibility for various setups. Additionally, it can be remotely managed through the free Ruijie Cloud app and Ruijie Cloud platform, making management accessible and cost-effective. With automatic Loop Prevention ensuring uninterrupted service and lifetime management on Ruijie Cloud, the RG-ES205GC offers convenience and reliability.
Features
- 5-Port gigabit cloud managed non-PoE switch
- Cost-Effective Smart Cloud Managed Switches
- IP Camera Recognition, Unique Value for CCTV Network
- Automatic Loop Prevention Ensures Service Continuity
- Lifetime management on Ruijie Cloud anytime anywhere
Specifications
| Model | RG-ES205GC | RG-ES208GC | RG-ES216GC | RG-ES224GC |
| Switching capacity | 10Gbps | 16Gbps | 32Gbps | 48Gbps |
| Switching Cache | 1Mbit | 1.5Mbit | 4.1Mbit | 4.1Mbit |
| Package forwarding rate | 7.4Mpps | 11.9Mpps | 23.8Mpps | 35.7Mpps |
| Ports | 5 10/100/1000 Base-T ports | 8 10/100/1000 Base-T ports | 16 10/100/1000 Base-T ports | 24 10/100/1000 Base-T ports |
| PoE Standard | N/A | |||
| PoE Power Budget | N/A | |||
| Speed / Duplex mode | Auto / Half / Full duplex Speed auto / 10/ 100 /1000 | |||
| MAC address | 2K | 4K | 8K | 8K |
| Maximum Number of VLANs | 16 | |||
| Allowed VLAN ID | 1 ~ 4094 | |||
| Port-based VLAN | Support | |||
| Flow Control | Support | |||
| Loop Protection | Support | |||
| Unknown Unicast Suppression | Support | |||
| Multicast / Broadcast Storm Suppression | Support | |||
| Mirroring | Many-to-One Mirroring | |||
| Port Isolation | Support | |||
| Cable Testing | Support | |||
| ICMP Ping | Support | |||
| DNS | DNS Client | |||
| Telnet | Support | |||
| MACC | Support | |||
| Port Surge | Common mode : 4KV | |||
| Electrostatic Discharge | · Air discharge : 6KV
· Contact discharge : 4KV |
|||
| Power Consumption | ≤ 3W | ≤ 4W | ≤ 12W | ≤ 14W |
| Power supply | External power adapter 100-240V |
External power adapter 100-240V |
Built-in power supply | Built-in power supply |
